ABB PFTL201C-10kN 3BSE007913R10 Pillow Tensiometer Head

ABB PFTL201C-10kN 3BSE007913R10 Pillow Tensiometer Head thumbnail-1
ABB PFTL201C-10kN 3BSE007913R10 Pillow Tensiometer Head thumbnail-2
ABB PFTL201C-10kN 3BSE007913R10 Pillow Tensiometer Head photo-1

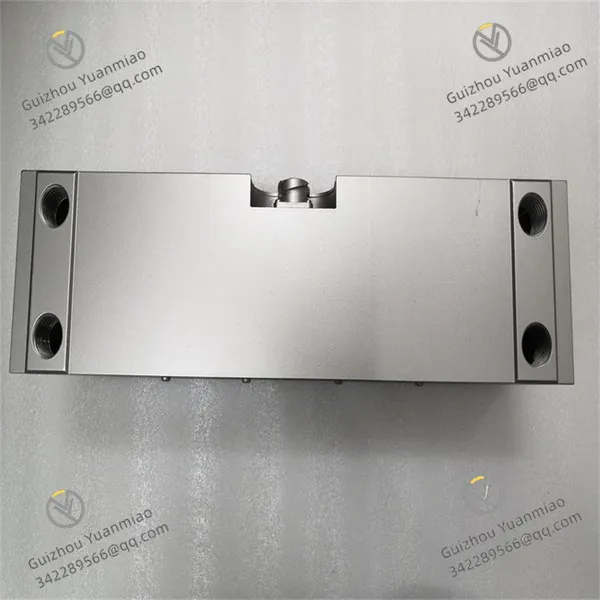

ABB PFTL201C-10kN 3BSE007913R10 Pillow Tensiometer Head photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Dimensions 220mm×125mm×50mm
Weight 21kg
Basic Information

  • Model: PFTL201C, belonging to ABB's specific tension sensor series.

  • Rated Load: 10.0kN, enabling precise measurement of tension values within this range to meet applications requiring large tension measurement.

  • Product Number: 3BSE007913R10, serving as the unique identifier to distinguish different versions and specifications.

  • Country of Origin: Switzerland.

Working Principle
Based on ABB's renowned Calibrator® technology, it utilizes the magnetoelastic effect for measurement. When subjected to tension, the magnetic properties of the internal materials of the sensor change due to mechanical force, and the sensor generates measurement signals according to the changes in the magnetic field. The signal does not depend on physical movement or deformation, combining high sensitivity with extraordinary tolerance to overload, and has almost no built-in limit on the number of load cycles.
Application Scope
Primarily provides long-term reliable tension measurement for pickling, annealing, and galvanizing production lines. Over the past 50+ years, ABB's tension sensors have demonstrated exceptional performance in various fields, especially in rewinding, high-speed, and harsh conditions.
Product Features

  • Robust and Durable: With a stainless-steel structure, it easily handles acid-resistant environments and mill applications, ensuring stable operation in harsh industrial conditions and adapting to various complex working scenarios.

  • High Measurement Accuracy: Outputs sensor signals through magnetic field changes, eliminating limitations caused by physical movements. It maintains absolute precision and reliable tension measurement even under vibrations, overloads, extreme temperatures, or harsh conditions.

  • Strong Signal Processing Capability: Its user-friendly interface and digital signal processing capability enable wide application across industries.

Technical Specifications

  • Dimensions: 220mm×125mm×50mm.

  • Weight: 21kg.

PFTL201C-10kN 3BSE007913R10 (2)

PFTL201C-10kN 3BSE007913R10 (1)

Output Signal Types of ABB PFTL201C-10kN 3BSE007913R10 Tension SensorI. Standard Signal Outputs
  1. Analog Signals (Default Configuration)

  • 4-20mA Current Output:

    • Linearly corresponds to the tension range (0-10kN), with strong anti-interference capability, suitable for long-distance transmission (≤500m).

    • Load resistance requirement: ≤500Ω (e.g., when connecting to a PLC analog input module).

  • 0-10V Voltage Output (Optional):

    • Linearly corresponds to the tension range, with fast response, but weaker anti-interference capability and limited transmission distance (≤300m).

    • Load resistance requirement: ≥10kΩ

  • Digital Signals (Optional Configuration)

    • RS485 Communication:

      • Supports Modbus RTU protocol, with adjustable communication rates from 1200 to 115200bps.

      • Bus topology allows up to 32 sensors in parallel, requiring 120Ω terminal resistors at both ends of the bus.

      • Typical applications: Multi-sensor networking or integration with upper-level computer systems

    II. Extended Outputs for Special Scenarios

    • Frequency Output (Customizable):
      Provides square wave or pulse signals, with frequency proportional to the tension value, suitable for specific control systems (e.g., upgrading old equipment).

    • Profibus DP/PA, DeviceNet, CANopen (Customizable):
      Industrial fieldbus interfaces to meet specific automation network requirements.

    III. Electrical Connection Key Points
    1. Power Supply Requirements

    • 24VDC±10%, ripple ≤100mV, power consumption ≤5W.

    • A 100μF/35V electrolytic capacitor must be connected in parallel for filtering, and a 1A fuse is recommended in series at the power supply end.

  • Wiring Terminal Definitions
    Terminal Mark Function Wiring Requirements
    +Vcc Positive power supply 24VDC input
    GND Power ground System common ground, ground resistance ≤4Ω
    SIG+ Signal positive Positive for 4-20mA/0-10V or RS485-A line
    SIG- Signal negative Negative for 4-20mA/0-10V or RS485-B line
    SHIELD Shield layer Single-end grounding for cable shield (recommended at the controller end)
  • Anti-Interference Measures

    • Signal cables must use twisted-pair shielded cables (≥0.5mm²), laid separately from power cables (spacing ≥10cm).

    • In high-frequency interference environments (e.g., near frequency converters), install signal isolators or metal trunking for shielding.

    IV. Signal Calibration and Verification

    • Zero Calibration: Output should be 4mA (or 0V) under no load, with allowable error ±0.05% FSO.

    • Full-scale Calibration: Output should be 20mA (or 10V) when loaded with 10kN, with allowable error ±0.5% FSO.

    • Digital Signal Verification: Read register 40001 (tension value, unit: N) via a Modbus tool, and the data should match the actual load.

    Product Tags: PFTL201C-10kN , 3BSE007913R10 , Load Cell
