ABB PM861AK01 3BSE018157R1 Processor Unit

Guizhou Yuanmiao Automation Equipment Co., Ltd. Gold Verified Supplier

1Yr

ABB PM861AK01 3BSE018157R1 Processor Unit thumbnail-1

ABB PM861AK01 3BSE018157R1 Processor Unit thumbnail-2

ABB PM861AK01 3BSE018157R1 Processor Unit thumbnail-3

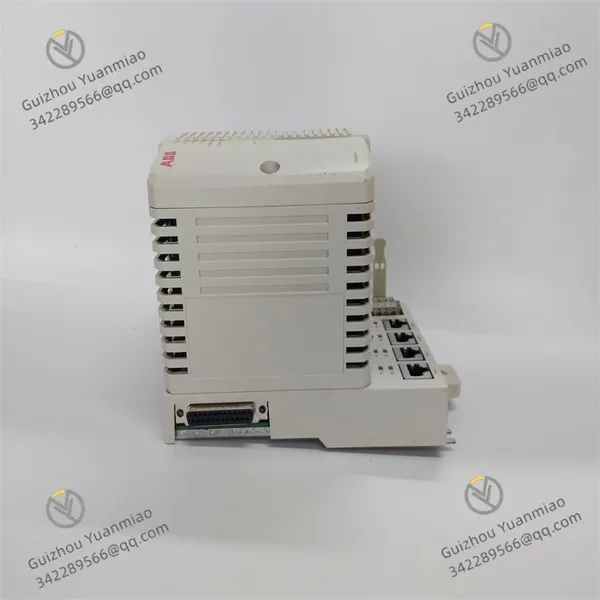

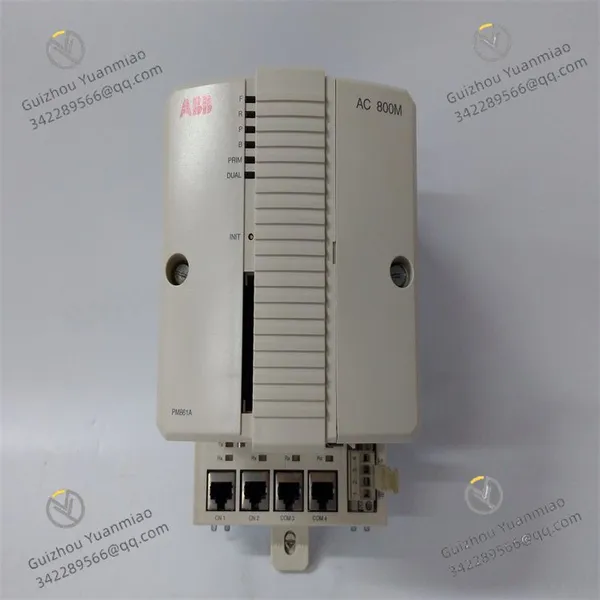

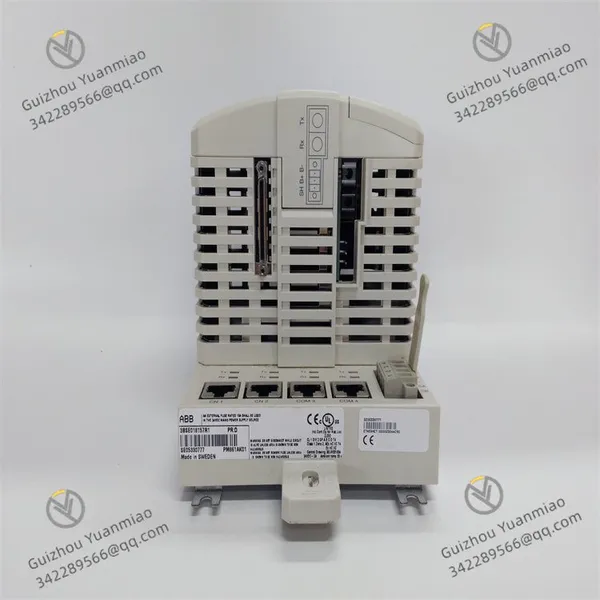

ABB PM861AK01 3BSE018157R1 Processor Unit photo-1

ABB PM861AK01 3BSE018157R1 Processor Unit photo-2

ABB PM861AK01 3BSE018157R1 Processor Unit photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Power supply voltage 24V DC

Power consumption Typically 250mA

Dimensions 189mm (H) × 135mm (W) × 119mm (D)

Weight Approximately 1.2kg

The ABB PM861AK01 3BSE018157R1 is a processor unit in the AC 800M control system.

1. Hardware Performance

Processor: Equipped with an MPC860 processor running at 48MHz, it executes 1,000 Boolean operations in 0.23 milliseconds, meeting data processing and computing needs in general industrial control.
Memory: Total memory is 16MB, including 7.155MB of application-accessible RAM and 2MB of flash memory for storing firmware, programs, data, and historical records.

2. Communication Interfaces

Ethernet Ports: Two RJ45 ports (CN1, CN2) connect to control networks, supporting Ethernet communication compliant with IEEE 802.3 standards for high-speed data exchange with other devices.
Serial Ports: Two RJ45 ports (COM3, COM4). COM3 is an RS232C port with modem control signals, and COM4 is isolated for connecting configuration tools.

3. Power Specifications

Supply Voltage: 24V DC (range: 19.2–30V DC).
Power Consumption: Typical 250mA (6.0W); maximum 430mA (10.3W). It supports redundant power status input and includes a 3.6V lithium battery for data retention during power outages.

4. Other Parameters

Real-time Clock: Stability of 100ppm (approx. 1 hour/year). CNCP protocol enables 1ms clock synchronization between AC 800M controllers.
Event Queue: Each OPC client can hold up to 3,000 events in the controller, with transmission speeds of 36–86 events/sec and 113–143 data messages/sec from AC 800M to OPC servers.
CEX Bus: Supports 12 communication modules with a maximum bus supply current of 2.4A.
Module Bus:

Non-redundant CPU: 1 electrical + 7 fiber optic I/O clusters.
Redundant CPU: 0 electrical + 7 fiber optic I/O clusters.
I/O capacity: 96 modules for single PM861A, 84 modules for redundant configuration. Scan rate: 0–100ms. Electrical bus supply current: up to 1.0A at 24V and 1.5A at 5V.

5. Functional Features

Redundancy Design: Supports redundancy for CPU, CEX bus, communication interfaces, and I/O modules to prevent single-point failures and ensure continuous operation during partial faults.
Flexible Programming: Supports IEC 61131-3 standard languages (LD, ST, FBD), allowing users to choose programming methods based on habits and project needs.
Easy Configuration: Configurable via 800xA Control Builder to enhance engineering efficiency.
Fault Diagnosis: Reliable and simple diagnostic programs quickly locate faults, reducing maintenance downtime.
High Stability: Industrial-grade design with strong EMC immunity, suitable for harsh environments. Protection class IP20 for indoor use.

6. Physical Characteristics

Dimensions: 189mm (H) × 135mm (W) × 119mm (D).
Weight: Approximately 1.15–1.2kg.

7. Application Scenarios

Industrial Automation: Controls production lines, packaging machines, printing equipment, etc., for precise process management.
Process Control: Suitable for fine control in petroleum, chemical, and pharmaceutical industries to ensure production stability and safety.
Power Systems: Applied in substation automation, grid dispatching, and energy management for efficient operation and reliable monitoring.
Building Industry: Used in intelligent building control systems for Building automation and security monitoring.
Other Fields: Applicable to marine, water treatment, rail transit, and other sectors.
