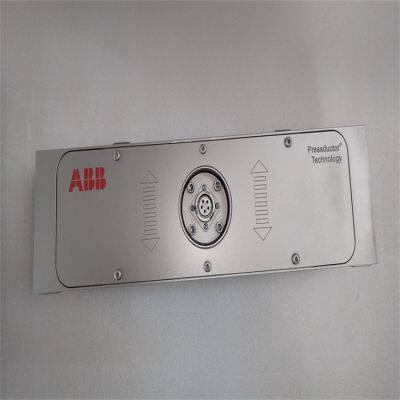

PFCL201C-20kN 3BSE027070R20 Pressductor PillowBlock Load cells

Basic Specifications Model Identification: The model is PFCL201C - 20kN, in which "20kN" indicates that the rated load of this load cell is 20 kilonewtons, which means it can measure the weight under a maximum force of approximately 20kN. The product number is 3BSE027070R20. Type: It belongs to a shear beam type load cell. This structural design gives it good resistance to interference such as lateral forces during the measurement process, and it can provide more stable and reliable measurement results.

Functional Features High-precision Measurement: It has a high measurement accuracy and can accurately convert the applied force into an electrical signal for output. It is suitable for occasions with high requirements for weight measurement accuracy, such as material weighing and batching control in industrial production processes, ensuring the accuracy and consistency of production processes. Sturdy and Durable: It is made of high-quality materials and has a robust structural design, which can adapt to relatively harsh industrial environments. It can withstand a certain degree of vibration, impact, and temperature changes, ensuring stable performance during long-term use and reducing measurement errors or equipment damage caused by environmental factors. Overload Protection Capability: It is designed with an overload protection mechanism. When the applied load exceeds the rated load within a certain range, it can effectively protect the sensitive components inside the sensor from damage, extend the service life of the sensor, and also ensure the safety of the entire weighing system. Anti-interference Performance: It has good electromagnetic interference resistance. In complex electromagnetic environments, such as industrial sites with a large number of electrical devices, motors, and other sources of interference, it can still work stably and accurately output measurement signals, avoiding measurement deviations caused by electromagnetic interference.

Working Principle Similar to common load cells, it works based on the strain principle. When an object is placed on the sensor, the elastic body of the sensor undergoes elastic deformation under pressure, and the resistance value of the strain gauge attached to the elastic body will change accordingly (stretching or compression causes the resistance to change). The change in resistance is converted into a voltage signal through a Wheatstone bridge, and then through a signal amplification and processing circuit, the weak electrical signal is converted into a standard output signal (such as a 4 - 20mA current signal, a 0 - 5V or 0 - 10V voltage signal, etc.) for transmission to subsequent display, control, or data acquisition devices for processing and analysis. Application Fields Industrial Production: It is widely used in the weighing links of various industrial production processes, such as the chemical, food, metallurgy, building materials, and other industries. For example, in the chemical industry, it is used for the weighing and measurement of raw materials and finished products; in the food industry, it is used for batching weighing and packaging weighing. Warehousing and Logistics: In the field of warehousing and logistics, it can be used for the weighing and measurement of goods, helping to manage the inbound and outbound weights of goods, conduct inventory checks, and calculate logistics costs. Transportation: In some transportation equipment, such as weighbridges and vehicle weighing systems, it is used for the detection and control of vehicle loads to ensure that vehicle transportation complies with relevant regulations and safety standards.

Data
