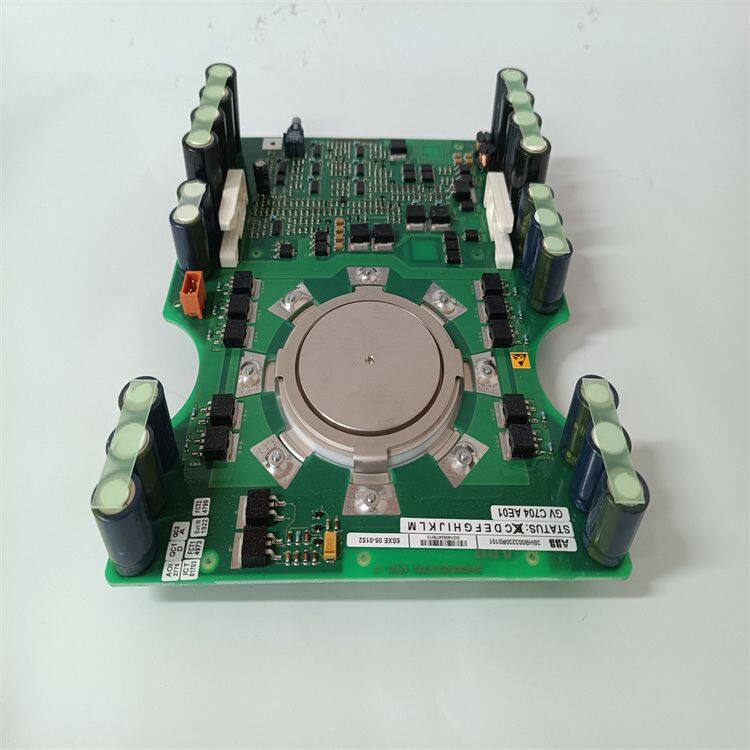

5SHX1445H0001 3BHL000391P0101 IGCT Module

ABB 5SHX1445H0001 3BHL000391P0101 is a high-voltage frequency converter control module of ABB. It has important applications in the field of industrial automation control and is used for precise control of high-voltage frequency converters to achieve efficient and stable operation of equipment such as motors. Functional Features: As a high-voltage frequency converter control module, it can precisely adjust the output of the frequency converter, including parameters such as voltage and frequency, so as to achieve precise speed regulation and control of the motor. Through precise control of these parameters, the motor can maintain the best operating state under different working conditions, improve energy utilization efficiency, and reduce energy consumption. At the same time, this module also has good stability and reliability, and can operate stably for a long time in complex industrial environments. It can adapt to harsh conditions such as high temperature, high humidity, and strong electromagnetic interference, reduce the probability of failures, and improve the availability of the entire system.

Application Fields: It is widely used in industrial scenarios that require high-voltage frequency conversion control, such as the power, metallurgy, chemical, and mining industries. In the power industry, it can be used for the startup and speed regulation of large motors, such as the excitation system of generators, the control of fans and water pumps, etc.; in the metallurgy industry, it can be applied to the motor drive systems of equipment such as blast furnaces and converters; in the chemical industry, it is suitable for the control of various pumps, compressors and other equipment; in the mining industry, it can be used for the motor control of large equipment such as hoists and ventilators. Through precise speed regulation control, the operation efficiency of the equipment can be improved, and the production cost can be reduced. Technical Parameters Voltage: 6kV Current: 2kA Power: 12MW Switching Frequency: 10kHz Dimensions: 220mm×170mm×85mm Weight: 2kg

The working principle is mainly based on the characteristics of the IGCT (Integrated Gate-Commutated Thyristor), a power electronic device: Basic Structure and Principle Foundation: In essence, the IGCT combines the advantages of thyristors and gate turn-off thyristors (GTOs), and makes improvements in the structure and driving mode. The IGCT is composed of a large-area thyristor chip and an integrated gate drive circuit. In the normal state, the IGCT is in a blocking state. At this time, a voltage is applied between the anode and the cathode, but no current passes through. Conduction Principle: When it is necessary to make the IGCT conduct, the gate drive circuit will apply a positive trigger pulse signal to the gate. This pulse signal creates an electric field between the gate and the cathode, thereby injecting electrons into the internal structure of the thyristor. The injected electrons will trigger the avalanche effect of the carriers (electrons and holes) inside the thyristor, causing the thyristor to quickly enter the conducting state. Once conducting, the IGCT can, like an ordinary thyristor, allow a large current to pass between the anode and the cathode. The magnitude of the current depends on the load of the external circuit and the power supply voltage. Turn-off Principle: Different from traditional thyristors, the IGCT can be turned off through gate control. When it is necessary to turn off the IGCT, the gate drive circuit will apply a reverse gate voltage, quickly extracting the carriers between the gate and the cathode and disrupting the carrier balance inside the thyristor, enabling the IGCT to be turned off rapidly. This rapid turn-off capability is one of the important characteristics that distinguish the IGCT from ordinary thyristors, giving it an advantage in many applications that require frequent switching operations. Commutation Process: In practical applications, the IGCT is usually combined with other power electronic devices (such as diodes, capacitors, etc.) to form a converter or inverter circuit. In these circuits, the IGCT needs to perform commutation operations, that is, transfer the current from one device to another. The commutation process is usually achieved by controlling the conduction and turn-off times of the IGCT, as well as by utilizing the capacitance and inductance elements in the circuit. For example, in a three-phase inverter, by sequentially controlling the conduction and turn-off of the IGCTs of different phases, direct current can be converted into three-phase alternating current for output. Control and Protection: The IGCT module is usually equipped with a special control and protection circuit, which is used to monitor the operating status of the IGCT, such as parameters like current, voltage, and temperature. When abnormal conditions (such as overcurrent, overvoltage, or overheating) are detected, the control and protection circuit will take corresponding measures, such as quickly turning off the IGCT, to protect the safety of the device and the entire system.
