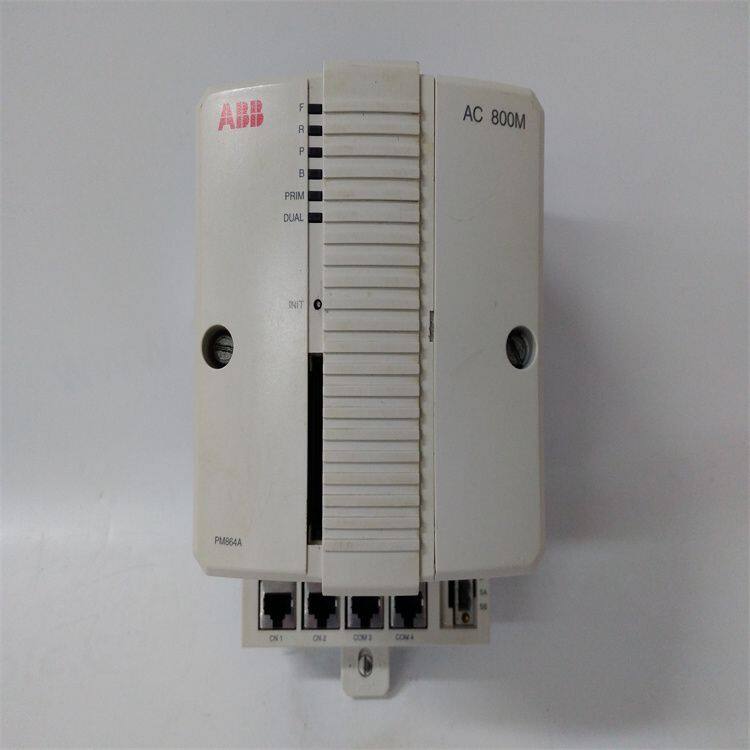

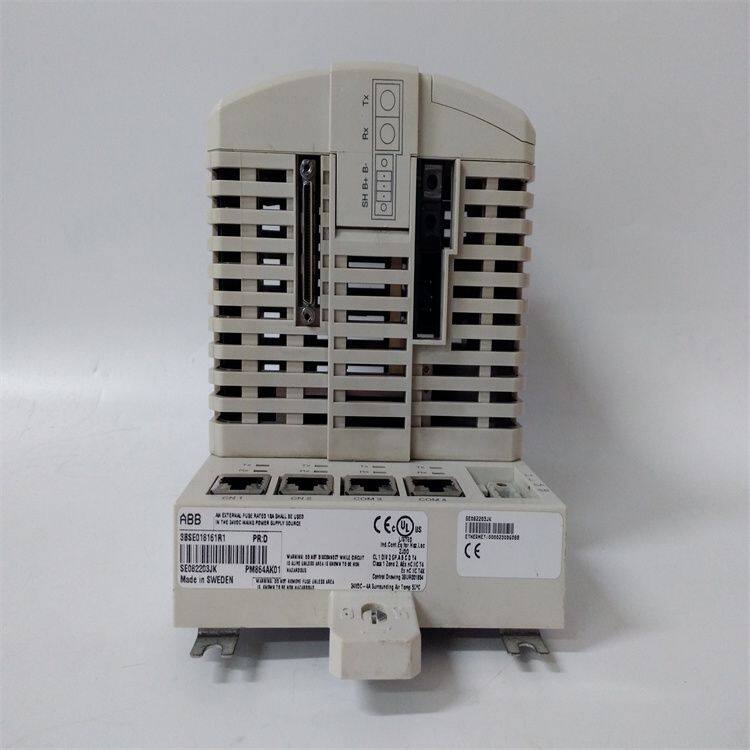

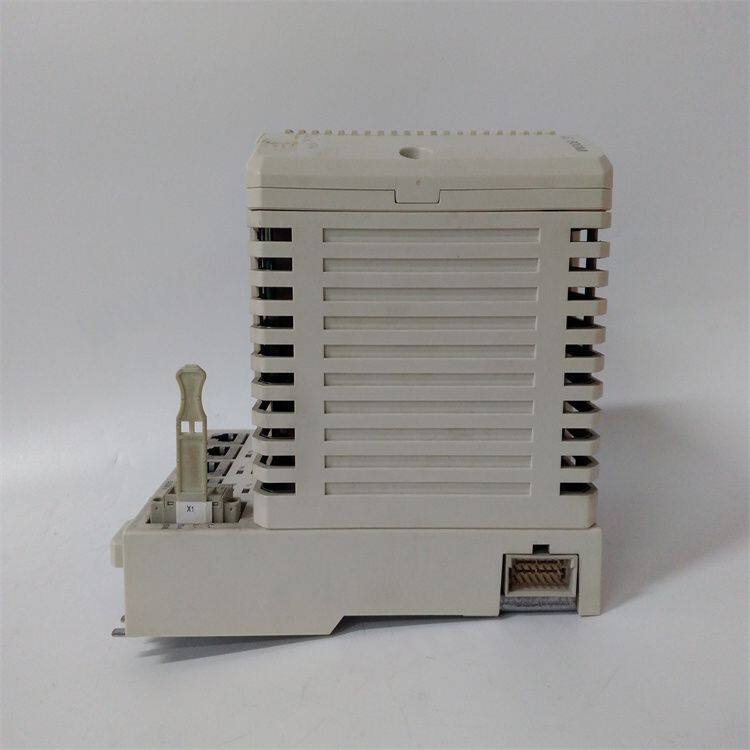

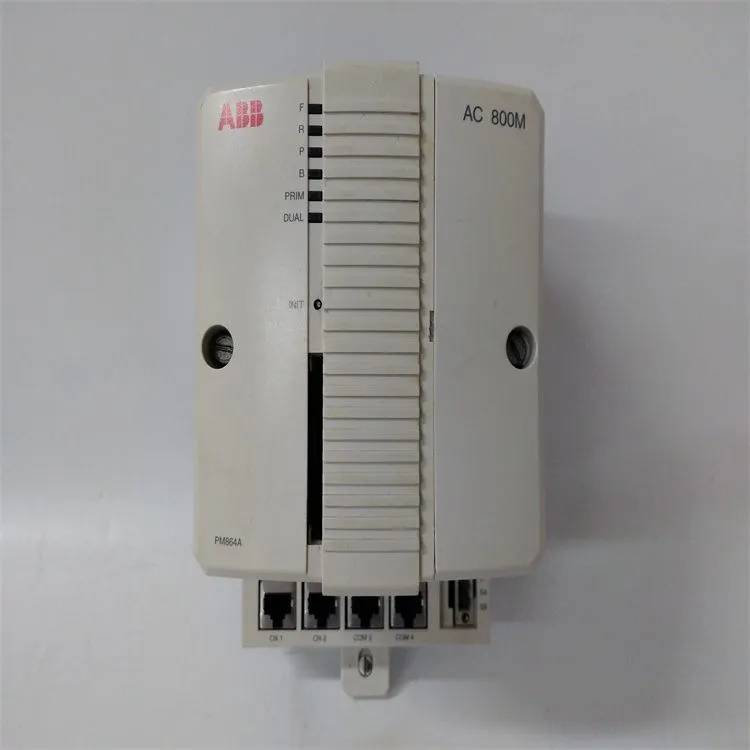

PM864AK01 3BSE018161R1 Processor Unit

The CPU board contains the microprocessor and RAM memory, a realtime clock, LED indicators, INITpush button, and a CompactFlash interface. The base plate of the PM864A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4).  One of the serial ports (COM3) is an RS232C portwith modemcontrol signals,whereas the other port (COM4) is isolated and used for the connection of a configuration tool.  The controller supports CPU redundancyfor higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O). Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism.  All base plates are providedwith a unique Ethernet address which provides every CPUwith a hardware identity.  The address can be found on the Ethernet address label attached to the TP830 base plate.

Specifications:

• Model: PM864AK01

• Reference: REF3BSE018161R1

• Power supply: 24 V DC

• Memory: 8 MB RAM, 32 MB Flash

• Communication interfaces: Ethernet, RS-485, RS-232, PROFIBUS DP, etc.

• Operating temperature: -40°C to +70°C

• Dimensions: 195 x 100 x 139 mm

Features and benefits Reliability and simple fault diagnosis procedures Modularity, allowing for step-by-step expansion IP20 Class protection withoutthe requirementfor enclosures The controller can be configuredwith 800xA control builder The controller has full EMC certification Sectioned CEX-Bus using a pair of BC810 Hardware based on standards for optimumcommunication connectivity(Ethernet, PROFIBUS DP, etc.) Built-in redundant Ethernet Communication ports
