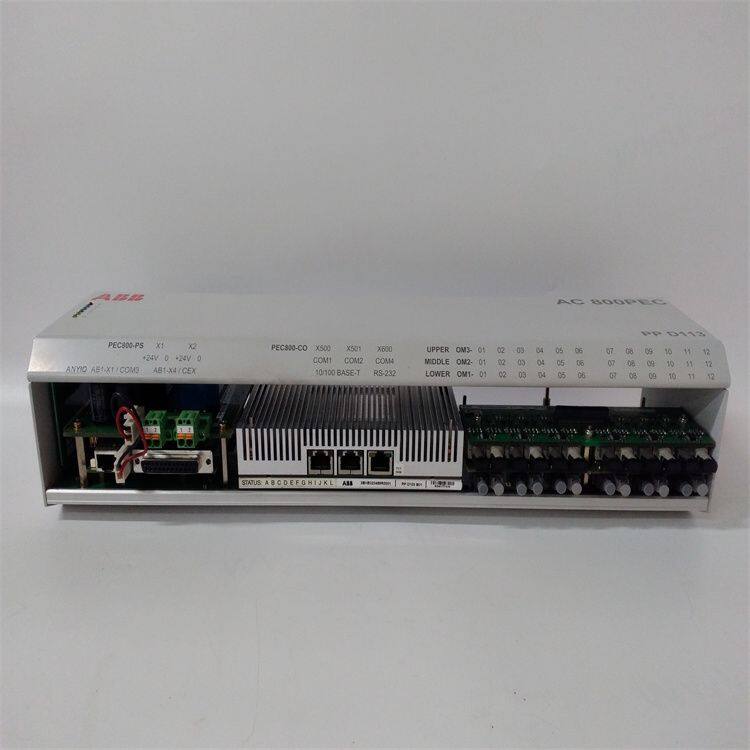

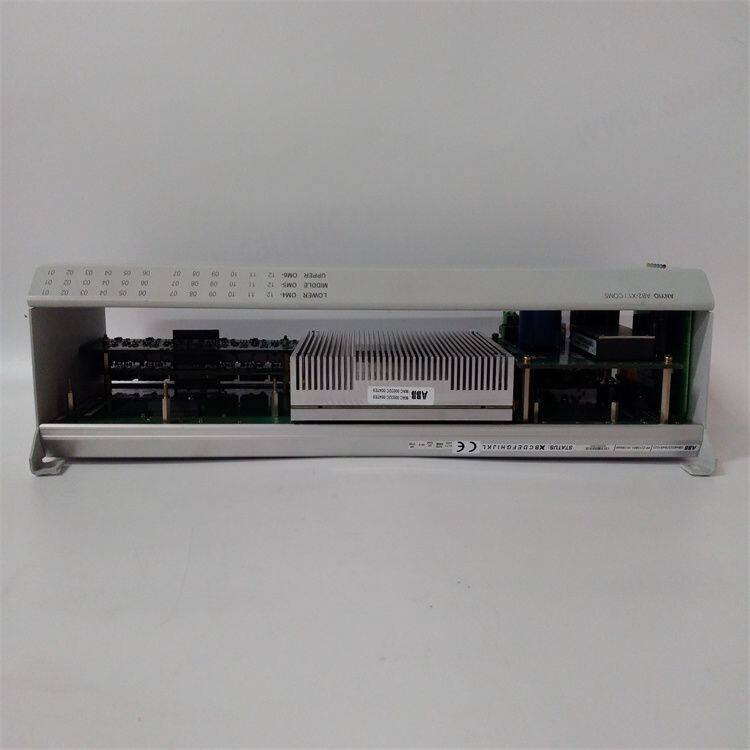

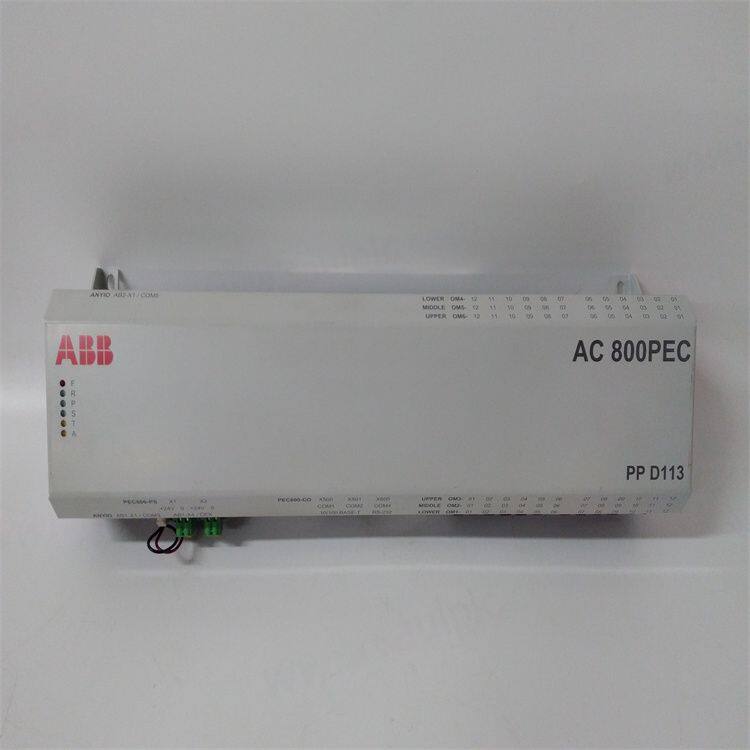

PPD113B01-10-150000 3BHR023784R1023 Excitation Controller

The ABB PPD113B01 - 10 - 150000 3BHE023784R1023, as part of the UNITROL 6000 X - power excitation control system, is mainly used for the excitation control of synchronous generators. The excitation system is an important component of the generator and consists of two main parts: the excitation power unit and the excitation regulator. The excitation power unit supplies the excitation current to the rotor of the synchronous generator, while the excitation regulator controls the output of the excitation power unit according to the input signals and the given regulation criteria. Its specific functions include maintaining the generator terminal voltage at a given value. When the generator load changes, it keeps the terminal voltage constant by adjusting the strength of the magnetic field; it also reasonably distributes the reactive power among the parallel - operating generator units and enhances the stability of the power system, including static stability, transient stability, and dynamic stability. Product Features Processor speed: 50 - 60Hz, suitable for common power system frequency environments. Power supply voltage: 110 - 240V, with a wide voltage adaptation range to meet the requirements of different power supply conditions. Dimensions: 150mm in length, 450mm in height, and 100mm in width. The overall size is relatively compact, facilitating installation and integration into various devices. Weight: 2.8kg, relatively light, making it easy to handle and install.

Installation Guide: Preparations Before Installation Check the Equipment: Confirm that the received equipment is intact without any external damage, missing parts, etc. At the same time, check whether the product model and number are consistent with the equipment to be installed. Prepare Tools: Prepare the tools required for installation, such as screwdrivers, wrenches, etc., and ensure that the tools are of the appropriate specifications and in good condition for use. Confirm the Installation Environment: Temperature: The temperature of the installation environment should be between 0°C and 55°C. Avoid installing the equipment near components with high heat generation, and ensure that there is sufficient ventilation and heat dissipation space around it. Humidity: The relative humidity of the environment should be less than 85% (without condensation) to ensure the insulation performance of the equipment. Vibration: Keep the equipment away from strong vibration sources and prevent multiple or continuous vibrations with a vibration frequency of 10 - 55Hz. If vibration cannot be avoided in the installation environment, shock absorption measures should be taken, such as using shock-absorbing adhesive. Others: Prevent the presence of corrosive and explosive gases, as well as substances similar to chemical acids and alkalis in the installation environment. In the case of a lot of dust or corrosive gases in the environment, the equipment can be installed in a control room or control cabinet with good openness.

Installation Steps Determine the Installation Location: According to the size of the equipment and actual usage requirements, determine the installation point in the control cabinet or other suitable locations, ensuring that the installation location is convenient for wiring and subsequent maintenance operations. Fix the Equipment: Use appropriate screws or other fixing devices to fix the PPD113B01 - 10 - 150000 3BHR023784R1023 at the installation location. Pay attention to tightening the screws to ensure that the equipment is firmly installed and avoid shaking or displacement during operation. Connect the Power Supply: According to the power supply requirements of the equipment, connect the 110 - 240V power supply to the power input terminal of the PPD113B01 - 10 - 150000 3BHR023784R1023, ensuring that the wiring is correct and firm, and avoiding situations such as looseness or short circuits. After the wiring is completed, check whether the power supply connection is normal and whether there are any safety hazards such as electric leakage. Connect the Signal Lines: According to the wiring diagram of the UNITROL 6000 X - power excitation control system, correctly connect the signal lines of the PPD113B01 - 10 - 150000 3BHR023784R1023 with other related equipment (such as synchronous generators, excitation regulators, etc.) to ensure the accuracy and stability of signal transmission. Note that different types of signal lines (such as analog signals, digital signals, etc.) should be routed separately to avoid mutual interference.

Inspection After Installation Appearance Inspection: Check again whether the equipment is firmly installed, whether the screws are tightened, and whether there is any damage or foreign matter on the surface of the equipment. Wiring Inspection: Carefully check whether the connections of the power lines and signal lines are correct and firm, and whether there is any looseness of the wiring terminals. Ensure that all wiring connections meet the requirements and there are no problems such as short circuits or open circuits. Function Test: Before powering on, check whether the various parameter settings of the equipment are correct. After confirming that there are no errors, connect the power supply and conduct a function test. Observe whether the equipment can start normally, whether it can effectively communicate and interact with other related equipment, check whether its operation is stable under different working conditions, and whether all functions meet the design requirements.
