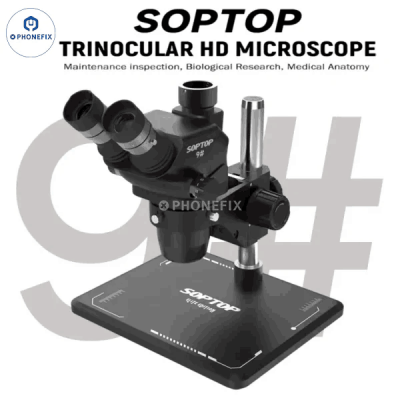

SOPTOP 9# 6.7-4.5X Zoom Trinocular HD Microscope for Mobile Phone/Laptop/Electronic Parts Repair

SOPTOP 9# 6.7-4.5X trinocular continuous zoom stereo microscope is suitable for mobile phone motherboard CPU BGA chip tiny components micro soldering repair. 0.67-4.5X continuous zoom, 150mm 360° adjustable, 110mm working distance, can be used with various 4K cameras, objective lenses and CTV adapters for mobile phone/laptop/electronic parts repair, biological research, circuit inspection, etc.

Soptop 9# Standard Set Package List:
1x 9# 6.7-4.5X Trinocular Microscope with base.
2x 10X/22MM eyepiece
1x CTV 0.5x adapter

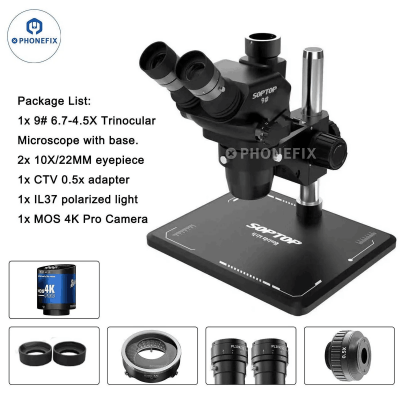

Soptop 9# 4K Camera Set Package List:
1x 9# 6.7-4.5X Trinocular Microscope with base.
2x 10X/22MM eyepiece
1x CTV 0.5x adapter
1x IL37 polarized light
1x MOS 4K Pro Camera

Features:
1. Real material, compact structure, full of materials, more than 300 parts are precisely matched and hundreds of assembly processes are carried out, which lasted more than 20 months of research and development.
2. 50MM macro adjustment, precision linear slides with strong stability. Quick macro focus adjustment, bilateral rotatable adjustment, smooth hand feel without setbacks.
3. Reserved camera interface for taking pictures and recording videos. Set up a high-definition industrial camera for electronic magnification, recording of cases, and precise measurements.
4. Mirror lock, switch freely, when there is no need for frequent adjustment, the magnifying glass can be locked to prevent changes in focal length.
5. Myopia adaptation adjustment, binocular interpupillary distance adaptation adjustment. It can be used without wearing glasses, and the interpupillary distance between the eyes can be adapted to different users.
6. 150mm lift adjustment to meet different needs. Mobile phone repair, computer repair, small home appliance repair, scientific research, and can be adapted to different usage scenarios.
7. Maintenance field: for mobile phones, computers, home appliances, precision parts repair.
8. Biology: It is used for medical research, biological research, and assisting scientific research workers.
9. Other fields: Watch repair and assembly, circuit inspection, and other fields.

Product Parameters:
Model: SOPTOP 9#
Working distance: 110mm
Optical magnification: 6.7-4.5X
C interface: 0.5X camera adapter, C-type interface, adjustable focus
Auxiliary objective: 0.3X\0.4X\0.5X\0.75X\1.5X\2X
Optional eyepiece: 15X/16mm,20X/12mm
Optional auxiliary objective: 0.3X,0.4X,0.5X,0.75X,1.5X,2X
Temperature: 0 C~40°℃
Product color: Black
Product size: 320x300x360mm
Package size: 410x380x370mm
Product weight: ≈4.5kg
Total weight of packaging:≈6.2kg
Viewing head: Trinocular observation head, 45° tilt, continuous zoom objective lens 0.67-4.5X, interpupillary distance adjustment range 52mm-76mm, with fixed-rate fixed-magnification mechanism and the highest and lowest times adjustment locking function.
Eyepiece: High eye point and large field of view eyepieces PL10X/22mm, with adjustable diopter.
Focus bracket: The focusing handwheel is adjustable, and the lifting range is 50mm.
Work platform: Black and white platen.
Pedestal: Column type large flat base. Column diameter 32mm, height 228mm, base size 260*320mm.

Product Lists:
Bracket x1
Eye mask x1
dust cover x1
instruction manual x1
0.5X camera receiver x1
PL10X/20mmeyepiece x2
Column type large flat base x1
Three eye observation head x1
