Home > Products > bending machine > US-3D5120 3D Wire Bending Machine

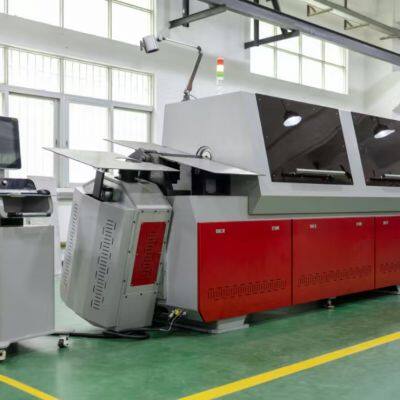

US-3D5120 3D Wire Bending Machine
≥1 Piece
- 500 Piece / Pieces per Month
- T/T L/C PayPal D/P Western Union Other
- 15 days
You May Like
Product Details
| Brand Name | unionspring | Place of Origin | China | |
| Model Number | US-3D5120 |
Product Description
Machine features:
1. The machine adopts computer control system and imported servo motor to ensure the stability of processed products.
2. Based on the working conditions on the computer display of the equipment, the angle, length, parameters, etc. of the product can be corrected.
3. The computer has Chinese and English (optional) interfaces, which are simple to operate and accurate in positioning. All motors can run synchronously or single-step.
4. It has an automatic shutdown alarm function when wireless, disconnected or wound, which increases the safety performance of the equipment.
5. The machine can be freely equipped with functions such as automatic welding machine, chamfering, grooving, flattening, punching, threading, flat steel strip punching and bending.
Model | US-3D580 | US-3D5120 |
Wire Diameter | Ø3.0～Ø8.0MM | Ø6.0～Ø12.0MM |
Axis | 5 | 5 |
Wire Feed Wheel Sets | 3Sets | 3Sets |
Wire Feeding Axis | 3.8KW | 15KW |
Arm Fotation Axis | 2.7KW | 3.5KW |
Cutter Axis | 1.0KW | 1.0KW |
Forward And Backward Axis | 1.0KW | 1.0KW |
Angle Folding Axis | 2.0KW | 2.0KW |
Dimension (LxWxH) | 3300*2000*1900(mm) | 3600*2350*1900(mm) |
Weight (kg) | 2800kg | 3500kg |
