Home > Products > spring machine > us-208 High-Speed CNC Spring Coiling Machine

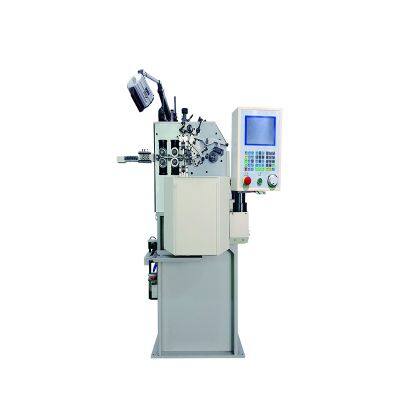

us-208 High-Speed CNC Spring Coiling Machine
≥1 Pieces
- T/T L/C PayPal D/P Western Union Other
- 15 days
You May Like
Product Details
| Brand Name | unionspring | Place of Origin | China | |
| Model Number | us-208 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
Model | US-208 |
Wire Diameter | Ø0.15～Ø0.8MM |
Axis | 2 |
Wire Feed Wheel Sets | 1Set |
Max. Outside Diameter | Ø20mm |
Max. Feeding Speed | 300m/min |
Cam Axis | 0.75KW |
Wire Feeding Axis | 0.75KW |
Dimension (LxWxH) | 850*650*1300(mm) |
Weight (kg) | 400kg |
Machine features:
① It is composed of servo control system and full digital driver.
② Adopts 5.7-inch human-machine computer interface and membrane buttons, which are easy and convenient to operate.
③The camshaft (X-axis) can perform forward and reverse movements, and the wire-feeding shaft (Y-axis) can increase or decrease the wire-feeding length during machine operation.
④In high-speed production, when the servo motor overheats, the computer will automatically detect and slow down to protect the motor.
⑤The machine has a probe deceleration ratio function.
⑥ During the production process, production capacity can be increased or decreased at any time.
⑦ Mainly suitable for processing various precision compression springs (coil springs), simple torsion springs, tension springs and other spring products within the wire diameter range
