Help CenterUS-45E-10 Copper and Aluminum Busbar Bending Machine
Related Products
Model |
US-45E-10 |
|
Wire Diameter (W*T) |
45mm*10.0mm |
|
Axis |
13-16 |
|
Wire Feed Wheel Sets |
4Sets |
|
Slide Axis |
4.5KW×8 |
|
Quill Rotary Axis |
2.0 KW |
|
Wire Rotary Axis |
4.4KW |
|
Wire Feeding Axis |
7.5 KW |
|
Spinner Axis (Optional) |
2.0KW |
|
Servo Cutter (Optional) |
1.5KW |
|
Dimension (L×W×H) |
3650×2500×2450 (mm³) |
|
Weight (kg) |
7500kg |
1.The production stability of the copper bar bending machine is good, and the corners and corners will not damage the paint and deform.Camless design, simple and fast operation,20%increase in production efficiency.

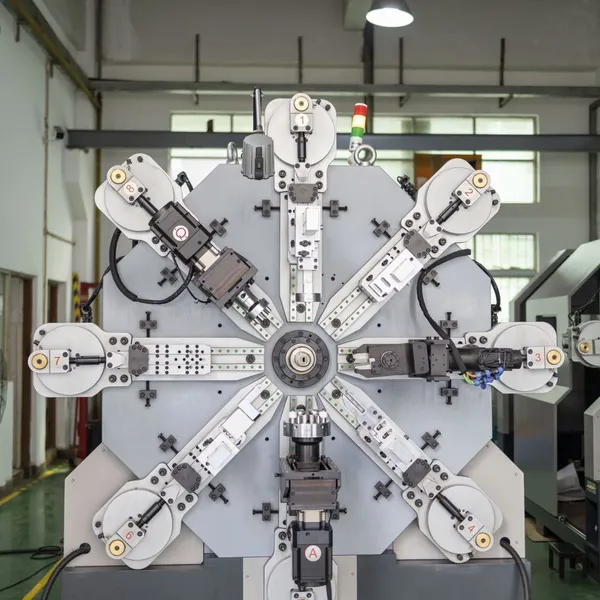

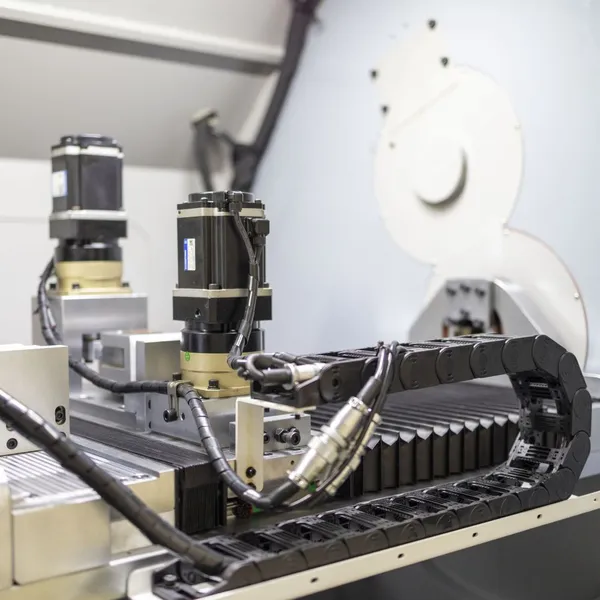

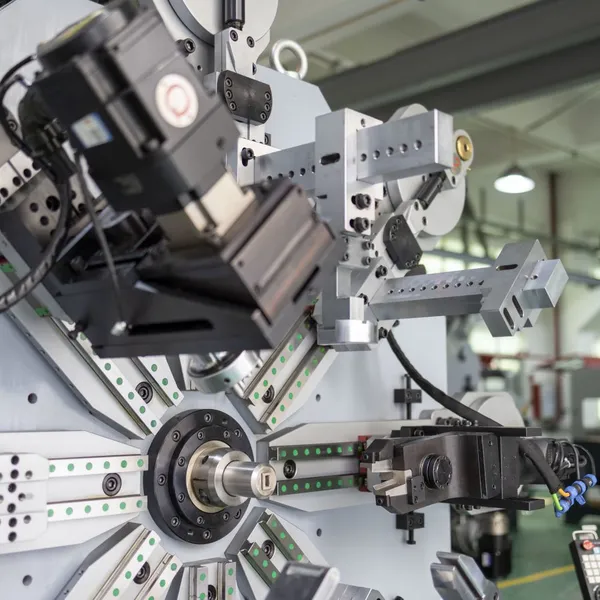

2. The bending machine is independently controlled by eight sets of servo motors, 8 guide shafts, wire feeding shafts,rotating mandrel shafts, wire rotating shafts, and curling shafts.Additional curling shafts, servo scissors, free hand shafts, etc. can be added.

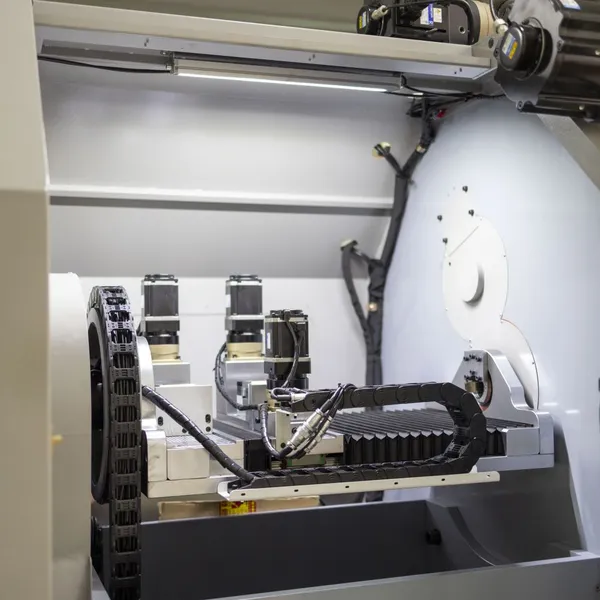

3. The machine adopts double guide rails and ball screw drive to ensure the precision of the machine.
4. The computer operation interface is simple, with Chinese and English display, easy to learn and use. When the machine is abnormal or there is no material, the machine can automatically detect the shutdown and alarm
5. This model is suitable for the production of high-precision products such as copper and aluminum bars for new energy vehicles, bare copper bars for electric cabinets, and metal wire forming.
