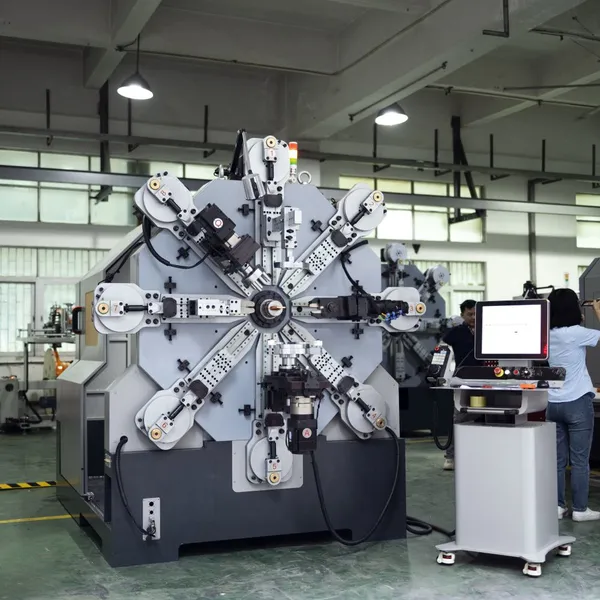

Machine Introduction:
1.The machine adopts a unique design without cams and rocker arms, reducing the technical requirements for setup and significantly decreasing setup time. The setup speed is more than 50% faster than traditional cam machines, offering high production speed, precise positioning, stable operation, and strong expandability.
2.Imported motors, precision bearing components, and imported guides enhance motion accuracy, ensuring stable and durable machine operation, effectively extending its service life.
3.Equipped with an intelligent professional-grade industrial computer operating system, it supports multiple language displays and an easy-to-understand and operate interface. Its powerful functionality meets complex multitasking requirements.
4.The operating system includes protective devices, a wire feeder breakage alarm, and a safety door protection mechanism, providing comprehensive protection for both the operator and the machine.
System Operation Instructions:
1. Closed-loop control system: The maximum response speed reaches 4000 kpps, meaning that at a resolution of 1 µm, the speed can reach 240 meters per minute.
2. Highly integrated system hardware: This minimizes the failure rate and significantly improves stability.
3. System software upgrades: Customers can upgrade the system software via computer operation at any time. The most user-friendly operation method, paired with a standard keyboard, makes it easy to learn, understand, and use.
4. Real-time adjustments: Programs can be modified and machine speed can be adjusted using the handwheel without stopping the machine.
5. Simple repetitive programming: Combined with adjustable probe speed, this greatly improves production efficiency for applications like flat springs that require multiple probe cycles.
6. Comprehensive safety design:
- Emergency stop cuts off the Servo On signal.
- System pre-alarm for motor overspeed.
- Safety door protection design.
- No material or material breakage, and wire rack abnormality shutdown protection.
- Fault alarm with automatic shutdown.
- Wire rack follow-up.
7. Stronger anti-interference capability: Compared to general PC-based controllers, it has better resistance to signal interference during operation. The maximum voltage pulse between every 0.01 seconds is 3000 volts per microsecond.
8. Better vibration resistance and wider temperature adaptability**: Compared to general PC-based controllers, it has better vibration resistance (maximum 0.075 mm at 5 Hz) and a wider operating temperature range (0°C to 45°C during operation, -20°C to 45°C during storage or transportation).
