Therm-O-Disc Moisture Resistant Temperature Control 39T Series,250VAC 5A, Certified by CQC，UL

The 39T series of 1/2"(13mm) moisture resistant temperature controls from Sensience / Therm-O-Disc offers proven reliability in a moisture resistant sealed design.  The sealed design provides moisture resistance for moisture prone environments. A variety of lead wire configurations are available to provide maximum design flexibility.

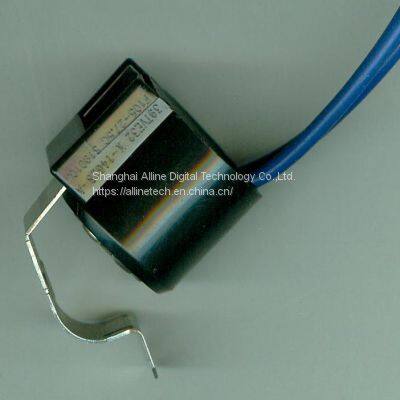

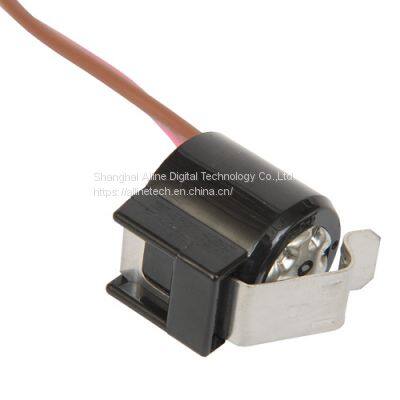

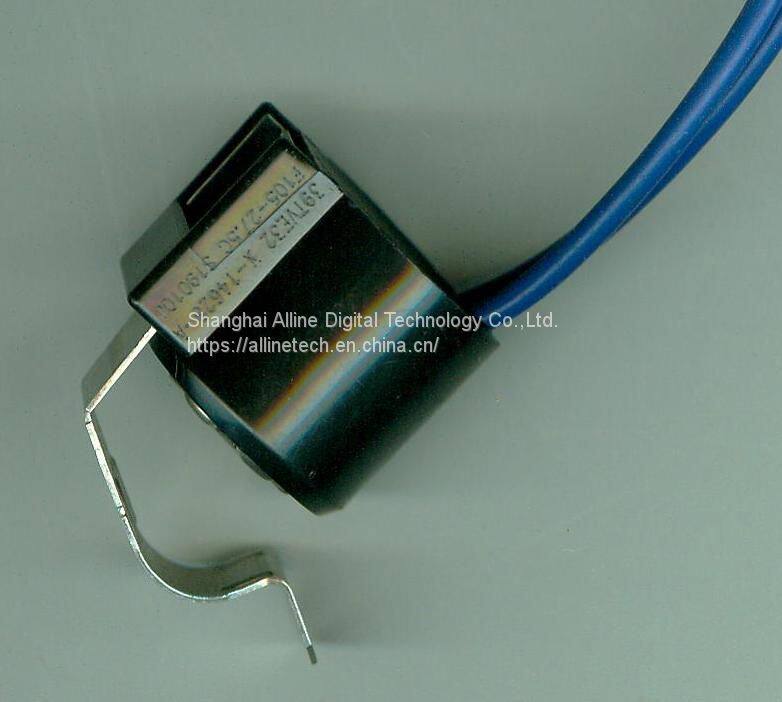

The 39T has been specifically designed to permit easy mounting onto copper or aluminum tubing with excellent retention and thermal response. The stainless steel mounting bracket has been designed to accommodate a wide range of tubing sizes without the need to modify the control platform.
The most popular applications include refrigeration defrost termination and ice cube maker control. It is also applied in a range of heat pump and air conditioning applications.

Switch Actions:
Automatic Reset Single Pole Single Throw (SPST)

Agency Ratings:

cUL (File E29653) :120VAC 5A 100,000 cycles   /   240VAC 2.5A 100,000 cycles   /   120VAC 10A 30,000 cycles

CB (US/12884/UL) : 250VAC 5A 30,000 cycles   /   250VAC 2.5A 100,000 cycles

VDE (File 4002298) : 125VAC 5A 100,000 cycles  /   250VAC 2.5A 100,000 cycles  /   250VAC 5A 30,000 cycles

Type:

39TAE31   ,  39TVE01   ,  39TVE02  ,  39TVE31  ,  39TVE32  ,  39TE01  ,   39TE02  ,   39TE31  ,   39TE32  ,   39TVGE01  ,   39TVG02  ,   39TVG31  ,   39TVG32

For Examples:

39TVE01   507417  L33-8C

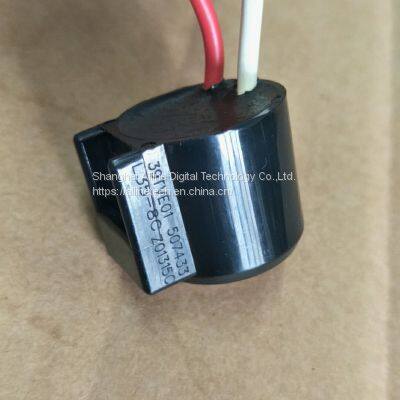

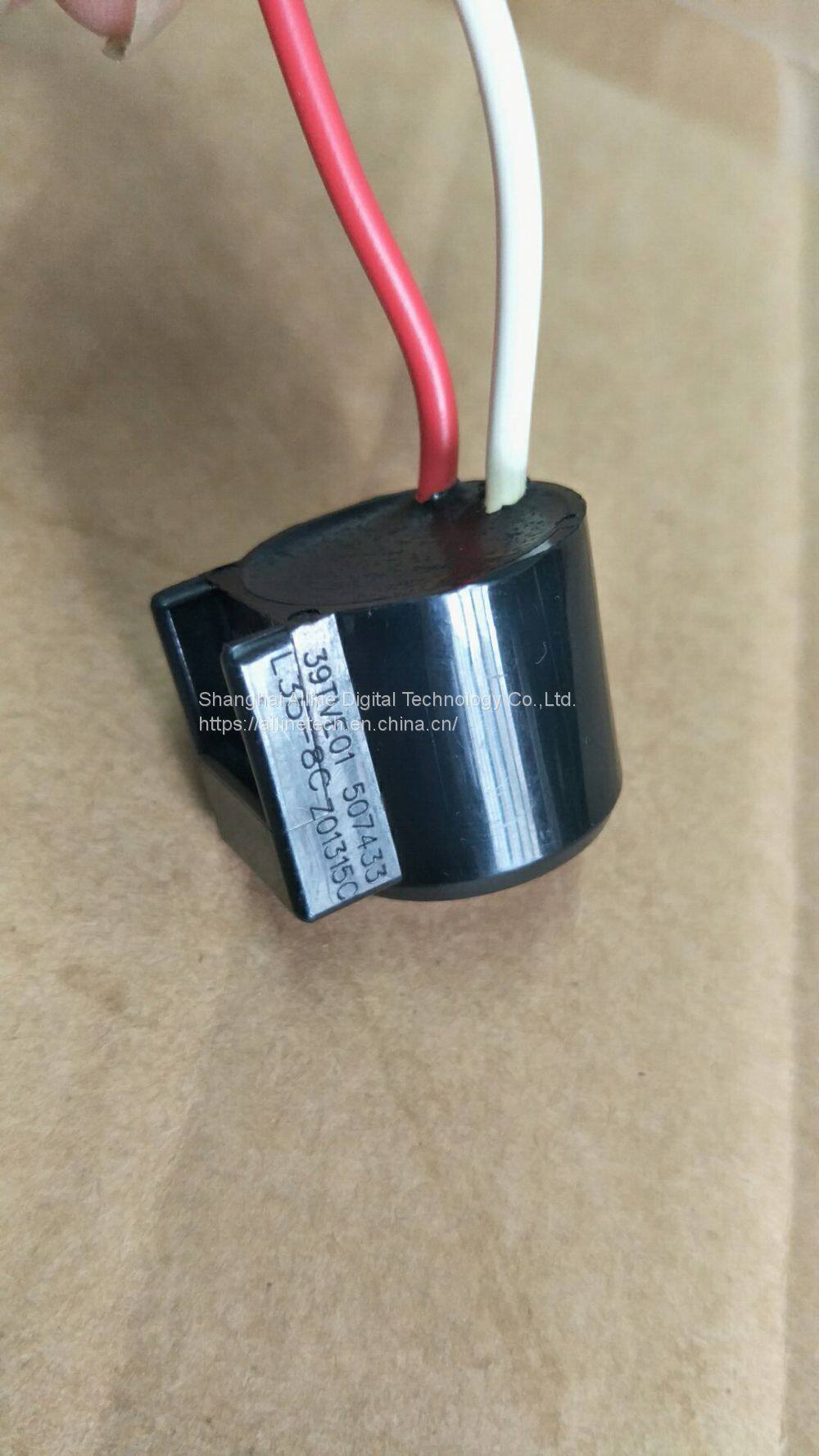

39TVE01  507433  L35-8C

39TVE01  507443  L10-9.5C

39TAE31  40093  L140-30F

39TAE31  40092  L140-30F
