Product Details
Brand Name: | T-O-D | Place of Origin: | Mexico | Model Number: | 64T |
Product Description

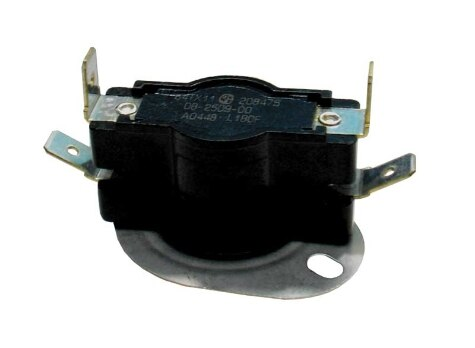

The 64T temperature controls from Therm-O-Disc combines a double pole, single throw (DPST) switch mechanism to provide simultaneous operation of two separate electrical circuits. Available in calibrations from 80°F to 350°F (28°C to 177°C) and nominal differentials from 30°F to 80°F (16.5°C to 44.5°C), the 64T provides excellent life characteristics at electrical loads up to 25 amps at 240VAC.
Features and Benefits
• Double pole, single throw switch configuration.
• Auto-reset switch action with nominal differentials from 30°F to 80°F (16.5°C to 44.5°C).
• Snap-action bimetal disc for high-speed contact separation.
• Available with an exposed or enclosed bimetal disc in either surface or airstream mounting configurations.
Switch Actions and Typical Applications
The 64T is an automatic reset double pole, single throw (DPST) switch that can be built to either open or close two independent sets of contacts on temperature rise. Once the temperature falls to the specified reset calibration, the contacts automatically return to their original state. A “two stage” switch configuration allows simultaneous switching of two independent circuits with a single bimetal disc. The 64T is typically utilized to limit temperatures of heating elements in electric furnaces and clothes dryers.
Agency Ratings:
UL (File MH-5304) ----- 120VAC / 25 amps / 100,000 cycles
240VAC/ 25 amps/ 100,000 cycles
CSA (File LR62036) -----300 VAC / 20 amps/ 100,000 cycles
600 VAC / 10 amps/ 100,000 cycles
Type:
T-O-D 64T01
T-O-D 64T02
T-O-D 64T04
T-O-D 64T11
T-O-D 64T12
T-O-D 64T14
T-O-D 64T21
T-O-D 64T22
T-O-D 64T24
T-O-D 64TX01
T-O-D 64TX02
T-O-D 64TX04

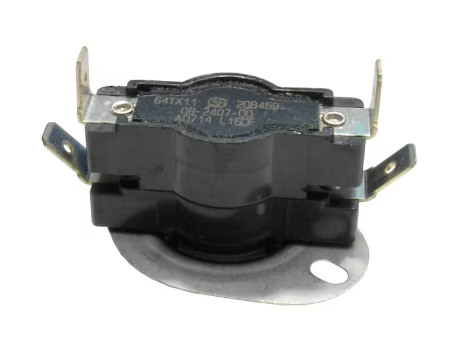

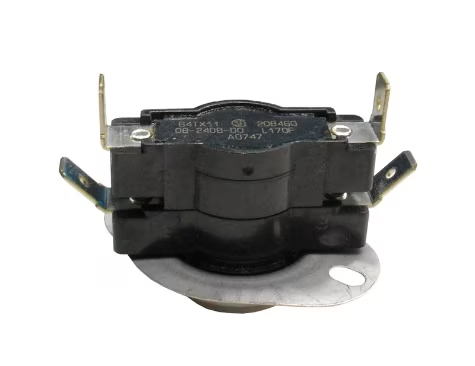

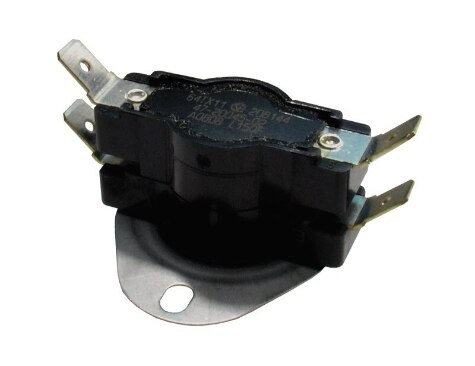

T-O-D 64TX11
T-O-D 64TX12
T-O-D 64TX14
T-O-D 64TX21
T-O-D 64TX22
T-O-D 64TX24
T-O-D 64TXX01
T-O-D 64TXX02
T-O-D 64TXX04
T-O-D 64TXX11
T-O-D 64TXX12
T-O-D 64TXX14
T-O-D 64TXX21
T-O-D 64TXX22
T-O-D 64TXX24
For Example:
64T11 208285 L200-50F

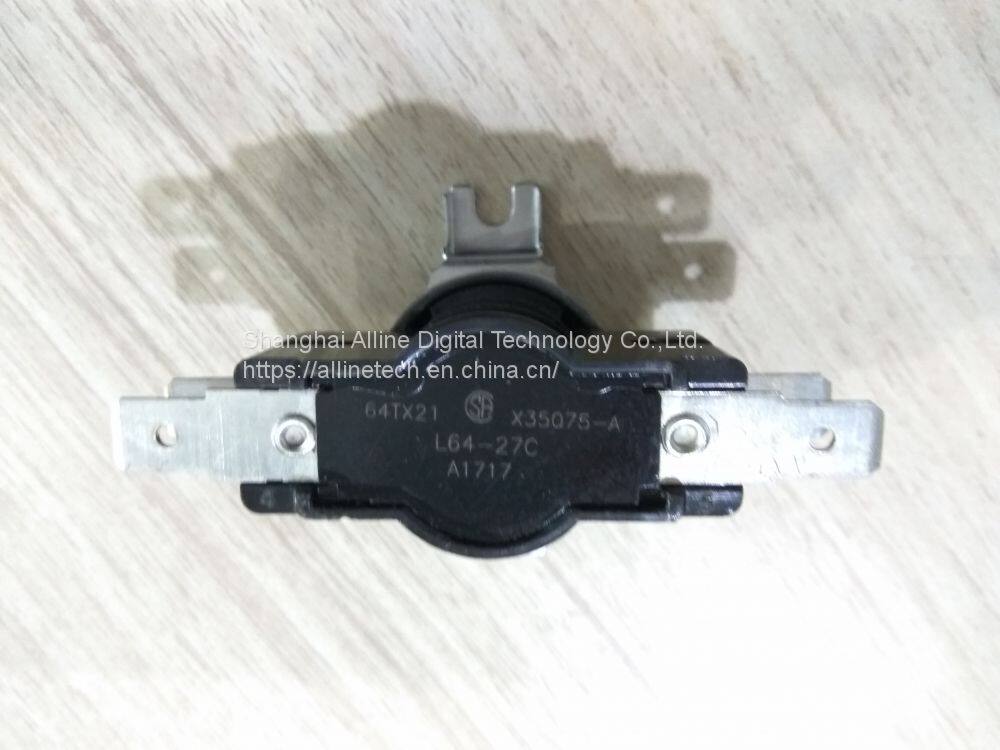

64TX21 x35075-A L64-27C
64T21 208546 L60C
