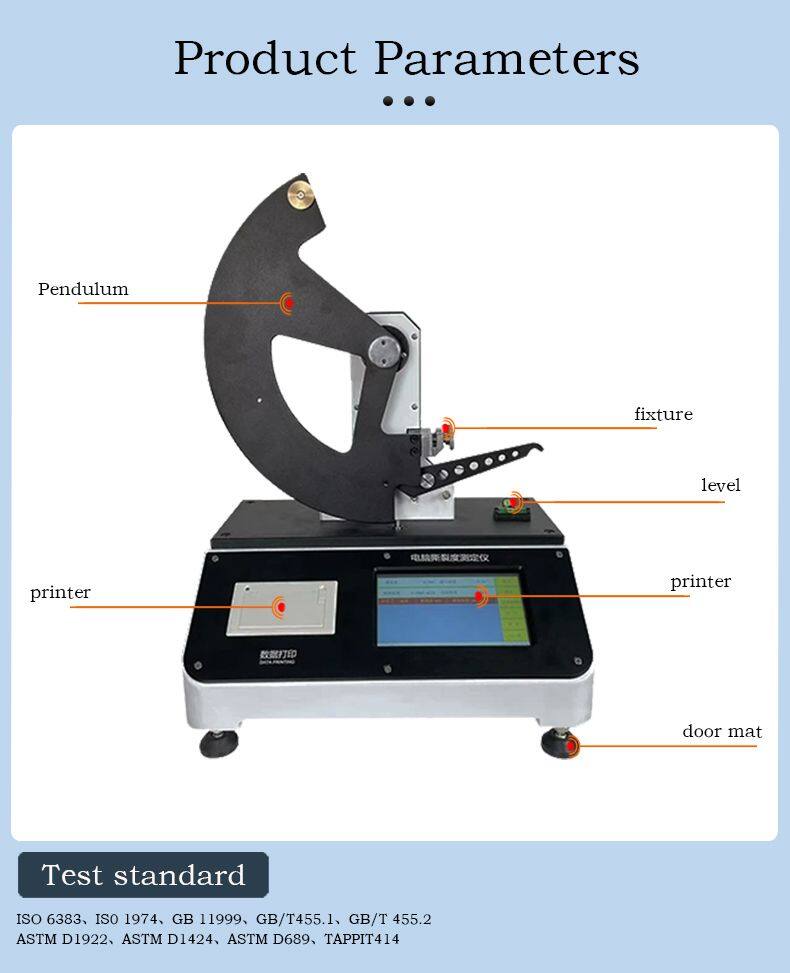

The main technical parameters
Item |
DR-B238-1 |
Test range |
A: 50-8000mN B: 8000~16000mN |
Standard arm |
(104±1)mm |
Beginning angle for tearing |
27.5°±0.5° |
Tear distance |
(43±0.5)mm |
Tear distance |
(2.8±0.3)mm |

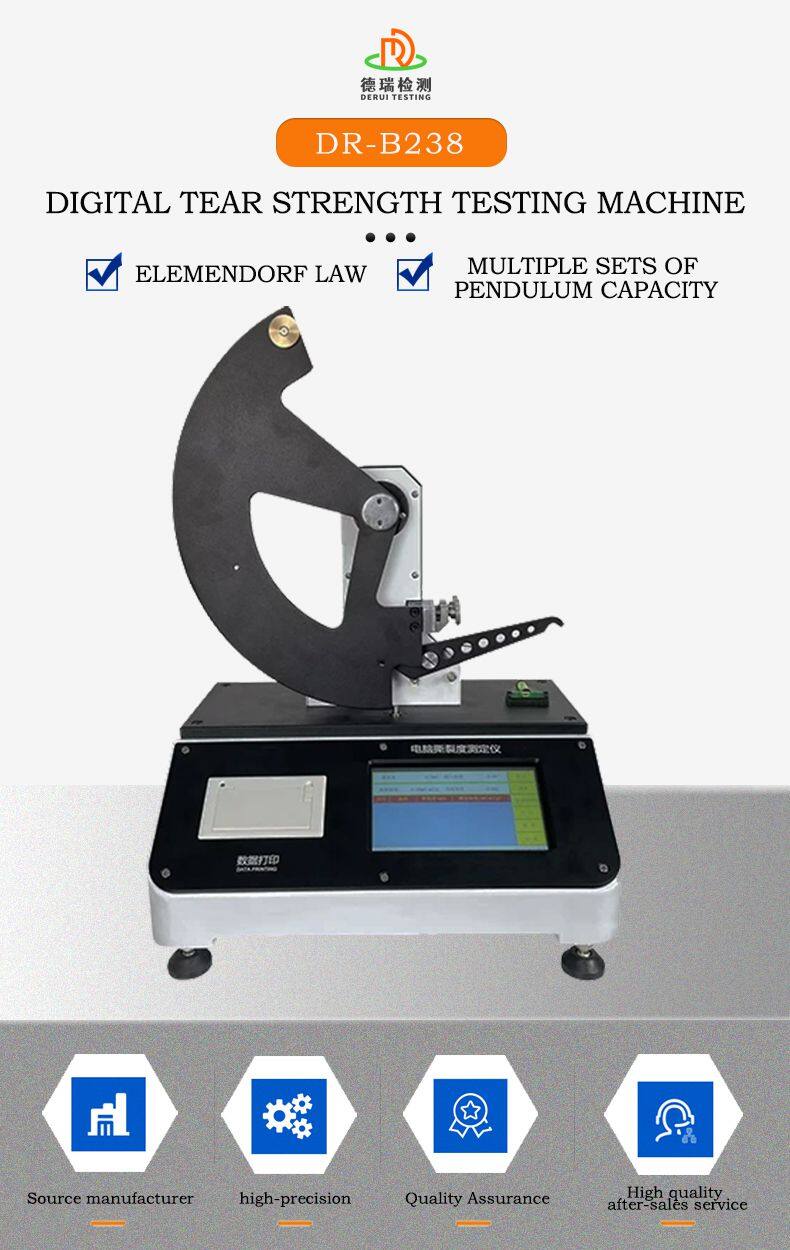

In today's textile and paper industry, accurate measurement of material tear strength is critical. It is a matter of product quality, productivity and innovation. The Elmendorf Tearing Strength Tester for Textile and Paper was developed to provide a reliable and efficient testing solution for the industry due to its unique design and outstanding performance. The following is a detailed introduction from the product design concept, performance advantages, technical details and application value and other dimensions.
I. Design concept: user demand-oriented
Our fabric tearing strength tester is designed from the user's actual needs. In the process of research and development, we have taken into full consideration the requirements of textile, paper and other industries in the production process of high precision, high efficiency and convenience of the material tearing strength test. Dedicated to creating a simple operation, powerful and can meet the diverse testing needs of the equipment.
Second, the performance advantages: multi-dimensional highlights the excellent quality
(A) High-precision measurement to ensure data accuracy
- Precise sensing technology: the use of international leading high-precision force sensors, able to capture the extremely small force changes, the measurement accuracy is as high as ± 0.1% FS (full scale). Combined with the stability design of the force sensor, it still maintains excellent performance during long time use, providing a reliable guarantee for the tearing force data.
- Precision Mechanical Construction: From the overall frame to the key components, all of them are made of high-strength and low-friction materials, and are precisely processed and assembled. This careful design and manufacturing process effectively reduces energy loss and error accumulation in mechanical movement, ensuring the accuracy and repeatability of test results.
(ii) Multi-functional testing to meet diversified needs

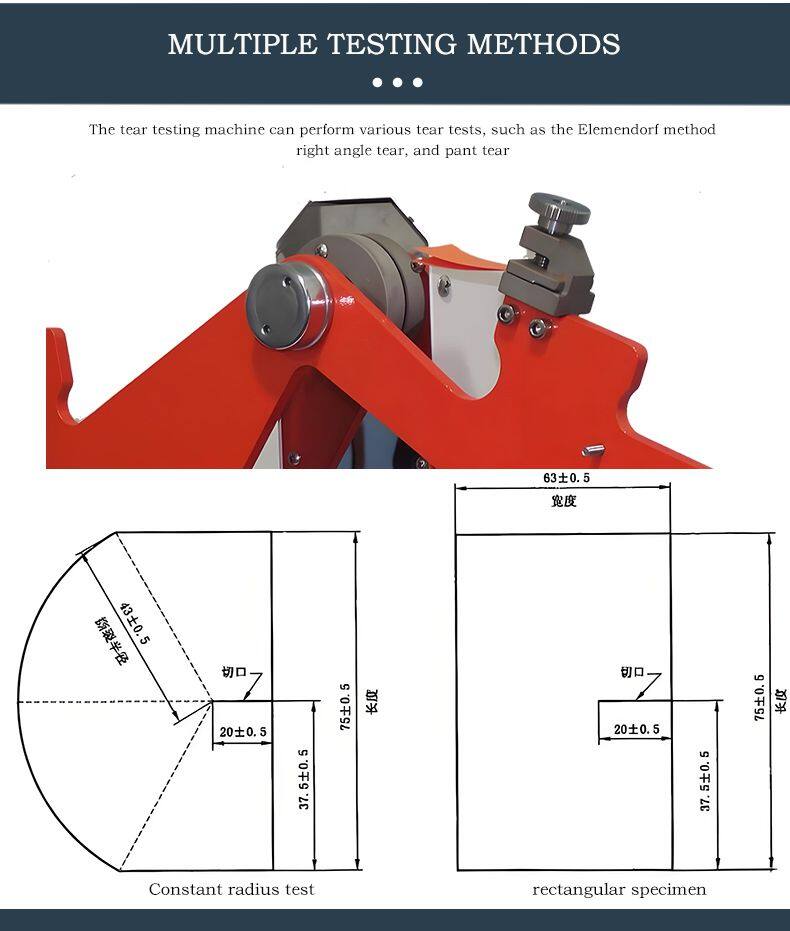

- Multiple Tearing Methods: It supports a wide variety of tearing methods, such as Elmendorf tearing method and other common tearing test methods. Users can choose flexibly according to material properties and testing needs, ensuring that the test results can more truly reflect the actual tearing performance of the material.
- Wide range of material adaptability: Whether it is thin textiles, thick industrial fabrics, various types of paper, or leather, non-woven fabrics, etc., the tester can easily cope with different industries and scenarios to meet the testing needs.
(C) Intelligent operation experience, improve testing efficiency
- Automated process design: the whole testing process is automated, users only need to place the specimen properly on the fixture, set the relevant parameters, the instrument can automatically complete the tearing operation and real-time recording and displaying test data. No tedious manual operation is required, which greatly improves the testing efficiency.
- Intelligent data analysis and processing: Equipped with intelligent control system, it can monitor and analyze the test data in real time and process and store the results automatically. After the test is completed, the system will generate a detailed report, including tearing strength value, tearing curve and other information, which is convenient for users to analyze and study in depth.
(D) Humanized design, easy and convenient operation
- Intuitive operation interface: The operation interface is simple and clear, all buttons and menus are well laid out, easy to understand and operate. Even personnel without specialized knowledge can quickly get started and complete the testing tasks.
- Convenient data management: Supports data storage, query and export functions. Users can conveniently manage and analyze historical test data, and through data sharing, it can also provide strong support for cross-departmental collaboration and R&D work.
Third, the application value: help industry development, create greater value
(A) the textile industry quality assurance
In the textile production process, the tester becomes a key tool to ensure product quality. Through rigorous testing of raw materials, screening out high-quality textile materials; real-time monitoring in the production process to ensure that the quality of each process is stable; for the R & D department to provide accurate data support to help develop higher performance textiles.
(ii) Paper industry performance enhancement
For papermaking enterprises, the tearing strength of paper directly affects the product experience. This tester can help enterprises accurately measure the tearing performance of paper, optimize production processes and formulations, and improve the durability and tear resistance of paper, thus enhancing the competitiveness of their products in the market.
(III) Innovation promotion for scientific research and education
In the field of scientific research, it provides a powerful means for researchers to study the material properties in depth and promotes the development of material science; in the field of education, as a teaching laboratory equipment, it helps students better understand the knowledge of mechanics of materials and cultivate innovative thinking and practical ability.
Quality assurance and after-sales service: no worries for you
(A) Comprehensive quality control system
We have established a strict quality inspection system from raw material purchase to finished product delivery, and each process is strictly controlled. Advanced testing equipment and professional testing team to ensure that each piece of equipment in line with international and industry standards, with excellent performance and reliability.
(II) Perfect after-sales service network
With a professional after-sales service team, 7 × 24 hours at any time to provide you with technical support and after-sales service. Regular return visit and maintenance of the equipment to ensure that the equipment is always in the best operating condition, so that you have no worries in the use of the process.
