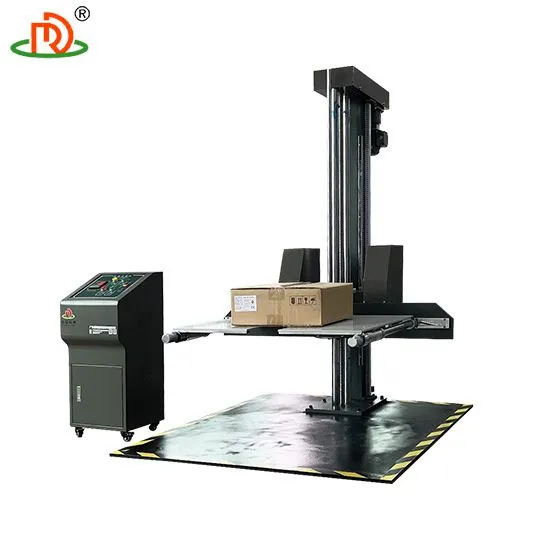

Drop Weight Impact Testing Machine During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And the machine simulates the drop/ fall of a finished product to evaluate the damage. Standard test of packaged freights (surfaces,corners, and edges), etc. can be performed efficiently with a high accuracy.
FEATURES
1. Outside material: advanced paint coat.
2. It adopts double wings to fix the products well when testing.
3. Power system: drive device (imported motor + speed reducer +Axel+ upper and lower limitation + spring+electromagnet)+dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder +hydraulic pressure buffering device)
4. Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control.
5. Safety device: upper and lower limitation device, automatic off-power device if electricity leakage occurs.
SPECIFICATION
Item | Description |
Drop height | 400-1500mm (can be customized) |
Display method | Digital display |
Max. weight of sample | 60kg (can be customized) |
Max. size of sample | (L*W*H) 800*800*800mm |
Drop panel area | 1400x1200mm (material is Solid steel plate) |
Control box dimension | (L*W*H) 350*350*1100mm |
Deviation of drop horizon | Less than 1° |
Machine size | (L*W*H)1400*1200*2200mm |
