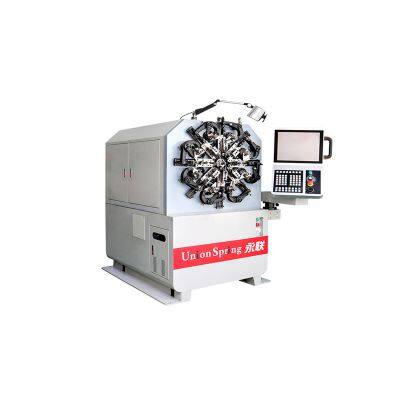

Us-520r CNC Cam Wire Spring Coiling Machine

1.The wire spring coiling machine adopts a Taiwan computer control system and Japanese imported servo motors, featuring convenient operation, high speed, and high precision. ‌1

2.The five axes include the camshaft, wire feeding shaft, wire rotating shaft, core rotating shaft, and coiling shaft (optional accessory), which can operate synchronously. The position of each axis, wire feeding length, production speed, and quantity can be displayed on the screen, allowing online editing and modification of program data for quick debugging. ‌1

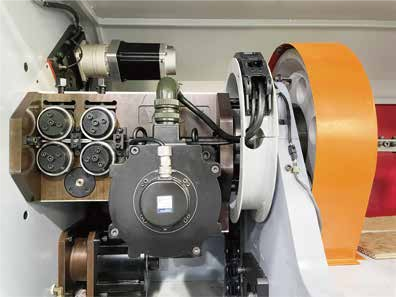

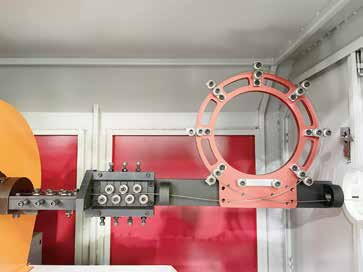

3.The cam section consists of eight sets of slides, crank arms, and cam rotating shafts. The wire feeding system is horizontally installed at the back of the machine. The wire rotating shaft controls the rotation of the wire, making it easier and faster to adjust for complex-shaped springs. The core rotating shaft can rotate in both directions, and the coiling device is mounted on the slides. ‌1

4.The wire spring coiling machine can be applied to produce precision springs for industries such as lighting, electronics, toys, home appliances, sports equipment, and automotive. ‌13
