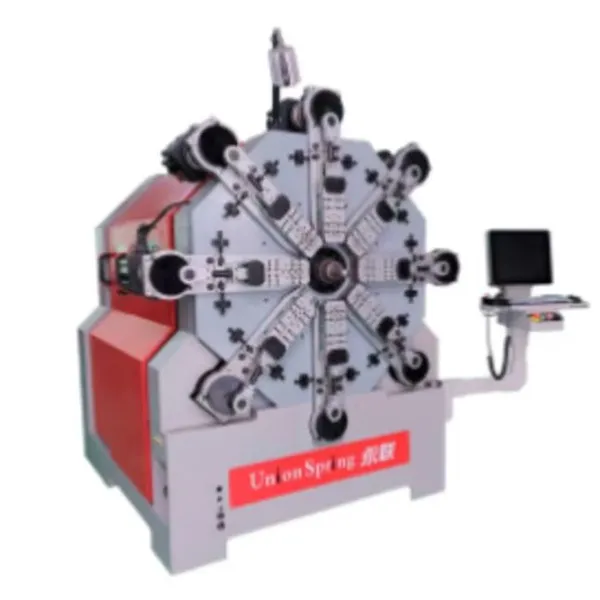

Help CenterUs-1280r CNC Camless Wire Forming Spring Machine
Related Products
-
Us-540r CNC Cam Wire Spring Coiling MachineUS$ 50000 - 60000MOQ: 1 Piece -
Us-520r CNC Cam Wire Spring Coiling MachineUS$ 50000 - 60000MOQ: 1 Piece
-
Us-1225r CNC Camless Wire-Forming Spring MachineUS$ 50000 - 60000MOQ: 1 Piece
-
Us-1235r CNC Camless Wire-Forming Spring MachineUS$ 50000 - 60000MOQ: 1 Piece
-
Us-1245r CNC Camless Wire-Forming Spring MachineUS$ 50000 - 60000MOQ: 1 Piece
The camless spring machine features a unique design without cams or rocker arms, lowering the technical requirements for setup and significantly reducing setup time. Its setup speed is over 50% faster than traditional cam machines, delivering high production speed, precise positioning, stable operation, and excellent expandability.
Equipped with Japanese Sanyo Denki motors, imported precision bearing components, and imported guide rails, it enhances motion accuracy, ensures stable and durable machine operation, and effectively extends its service life.
Comprehensive safety features include a core rod protection device, operating system protection device, wire feeder breakage alarm, and safety door mechanism, providing all-around protection for both the operator and the machine.
The intelligent, professional-grade industrial computer operating system supports multiple languages, offers an easy-to-understand and user-friendly interface, and provides powerful functionality to meet complex multitasking requirements.
|
Model |
US-1260R |
US-1280R |
|
Wire Diameter |
Ø2.0～Ø6.0MM |
Ø3.0～Ø8.0MM |
|
Axis |
12-14 |
12-14 |
|
Wire Feed Wheel Sets |
4Sets |
4Sets |
|
Wire Feeding Axis |
7.5KW |
15KW |
|
Wire Rotary Axis |
4.5KW |
7.5KW |
|
Quill Rotary Axis |
2.0KW |
2.0KW |
|
Slide Axis |
4.5KW×8 |
5.5KW×8 |
|
Spinner Axis(Optional) |
1.8KW |
2.7KW |
|
Servo cutter (Optional) |
1.0KW |
1.0KW |
|
Dimension (LxWxH) |
3100x1930x2380 (mm) |
3200x2100x2480 (mm) |
|
Weight (kg)
|
7500kg |
9500kg |
