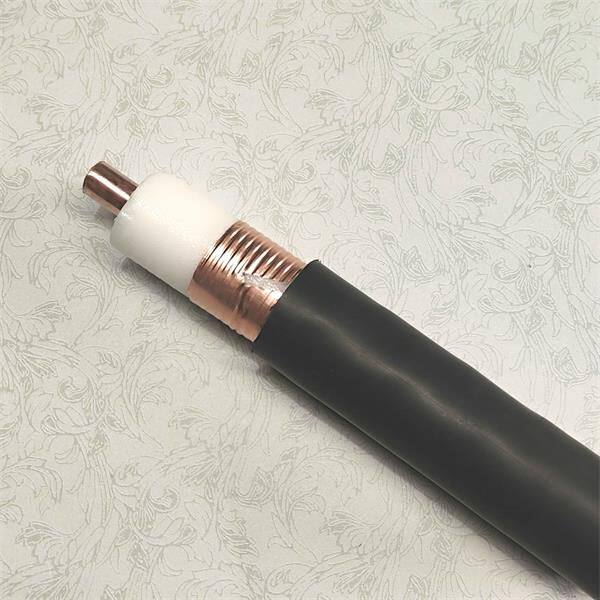

2.4GHz&5.8GHz WLAN Radiating cable HLRCTYZ-50-16( 5/8"）Leaky cable

1、Leaky cable functions as a distributed   antenna to provide communications in tunnels, mines and large building   complexes and is the solution for any application in confined areas.

2、Slots in the copper outer conductor   allow a controlled portion of the internal RF energy to be radiated into the   surrounding environment. Conversely, a signal transmitted near the   cable will couple into the slots and be carried along the cable length.

3、This leaky cable utilize a low-loss   cellular polyethylene foam dielectric and a Corrugated copper foil outer   conductor which offers a superior electrical performance together   with good bending properties.

4、This product is suitable for WLAN   communication systems, with low loss characteristics.

Technical features

Structural dimensions and   materials

Inner   Conductor

Copper   Clad Aluminum Wire

6.8   mm

Insulation

Physical   Foam Polyethylene

17.7   mm

Outer   Conductor

Overlapping   Copper Foil-

18.3   mm

Jacket

Low   Smoke Halogen-free Fire-retardant

20.8   mm

Mechanical and environmental   specifications

Minimum   Bending Radius

125mm

Repeated   Bending Radius（15 times）

250mm

Bending   Torque

13.5N·m

Weight

350g/m

Recommended   Clamp Distance

0.8mm

Minimum   Distance to Wall

80mm

Tensile   Force

1350N

Storage   Temperature

-30 ℃ ~ ﹢80 ℃（LSZH)

Installation   Temperature

-20 ℃ ~ ﹢60 ℃（LSZH)

Operation   Temperature

-30 ℃ ~ ﹢80 ℃（LSZH)

Electrical   specifications

Capacitance

75pF/m

Impedance

50±2Ω

Velocity

89%

Insulation   Resistance-

＞10000MΩ•km

Jacket   Spark

8KV

Insulation   Voltage

6KV

Inner   Conductor DC Resistance

2.2   Ω/km

Outer   Conductor DC Resistance

3.5   Ω/km

Operating   Frequency

2400~6000MHz

VSWR

≤1.4

Resonant   Frequencies（MHz）

455,1365,2275,3185,4096,5005,5915

Attenuation and Coupling Loss

Frequency（MHz）

Attenuation（dB/100m，20℃，±5%）

Coupling     Loss（dB,2m,50%/95%，±5dB ）

           2400MHz

                            8.35

                                       73/79

           2500MHz

                            8.70

                                       70/76

          5000MHz

                            14.1

                                       64/70

          5200MHz

                            14.5

                                       63/68

          5500MHz

                            16.1

                                       64/70

          5800MHz

                            16.9

                                       65/70
