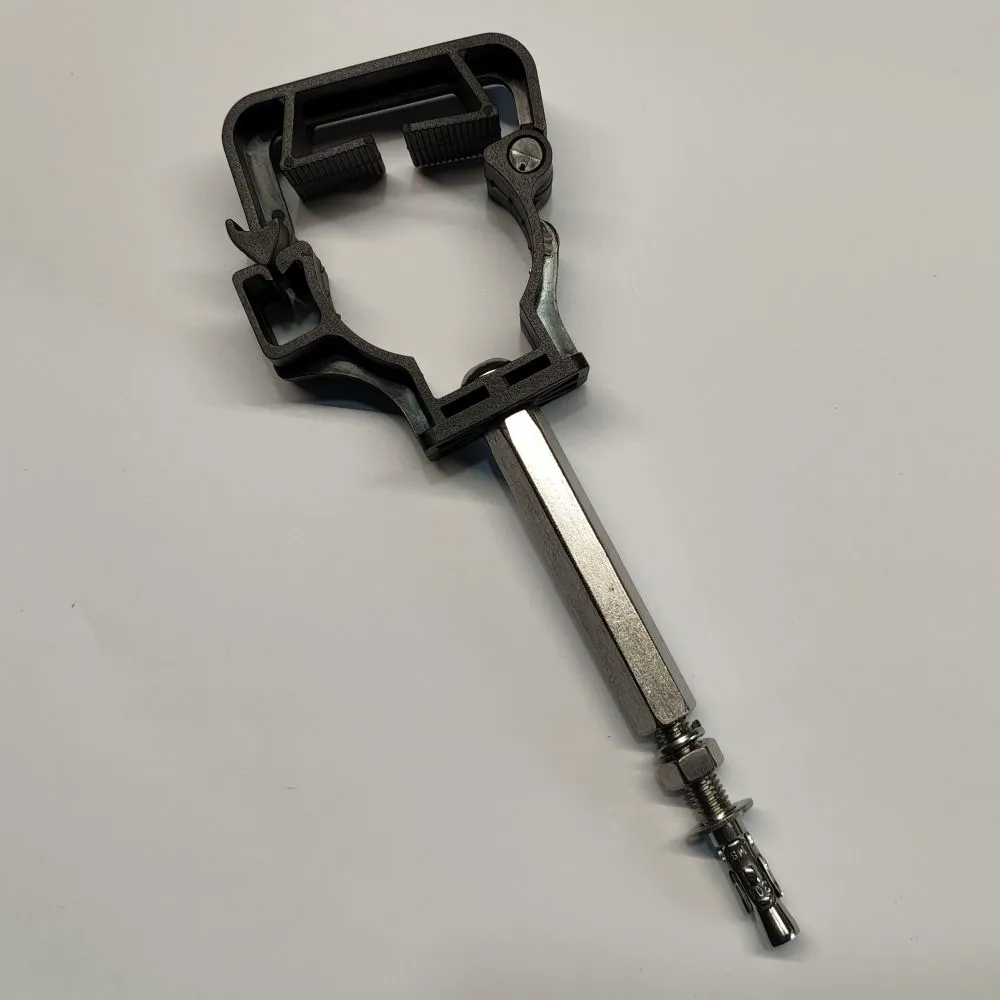

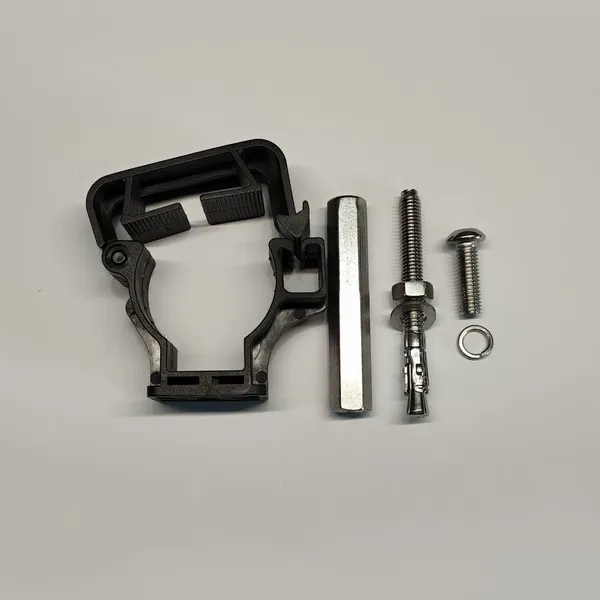

Double Self-locking Clamp for 1-5/8“radiating Cable
US$ 1.75 - 2.5
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Ascent
Place of Origin:
China
Model Number:
1-5/8”
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai，any port
Delivery Detail:
15 days
Related Products
-
Double Self-locking Clamp for 1-1/4“radiating CableUS$ 1.65 - 2.25MOQ: 1000 Pieces -
Double Self-locking Steel Wire Rope Hanging Common Clamp for 1-5/8 Radiating CableNegotiableMOQ: 1000 Pieces
-
Double Self-locking Steel Wire Rope Hanging Common Clamp for 1-1/4 Radiating CableNegotiableMOQ: 1000 Pieces
-
Steel Wire Rope Hanging Common Clamp for 7/8 Radiating CableNegotiableMOQ: 1000 Pieces
-
Steel Wire Rope Hanging Common Clamp for 1/2 Radiating CableNegotiableMOQ: 1000 Pieces
Brand Name
Ascent
Place of Origin
China
Model Number
1-5/8”
Double self-locking clamp for 1-5/8“radiating cable
| clamp for 1-5/8 radiating cable | ||
| General Specifications | ||
| Product Type | Double self-locking Clamp for 1-5/8 radiating cable | |
| Material | Polyamide PA66 | Stainless steel | |
| Color | Black | Silver | |
| Dimensions | ||
| Compatible Diameter, maximum | 50mm | |
| Compatible Diameter, minimum | 47mm | |
| Nominal Size | 48.5mm | |
| Hanger Spacing | 1～1.3m | |
| Non metallic components | ||
| Height | 76mm | |
| Width | 25mm | |
| Length | 74.5mm | |
| metallic components | ||
| bolt | M8*25 | |
| Hexagonal connecting rod | M8*75 | |
| expansion anchor | M8*80 | |
| Fire class | FV0 | |
| Environmental | ||
| Operating Temperature | -40 to +85°C | |
| Installation Temperature | -20 to +80°C | |
| Storage Temperature | -40 to +85°C | |
| Mechanical Specifications | ||
| Maximum Load | 2000N | |
| Packaging and Weights | ||
| Height, packed | 280mm | |
| Width, packed | 215mm | |
| Length, packed | 430mm | |
| Packaging quantity | 160 | |
| Weight, gross | 6kg | |
