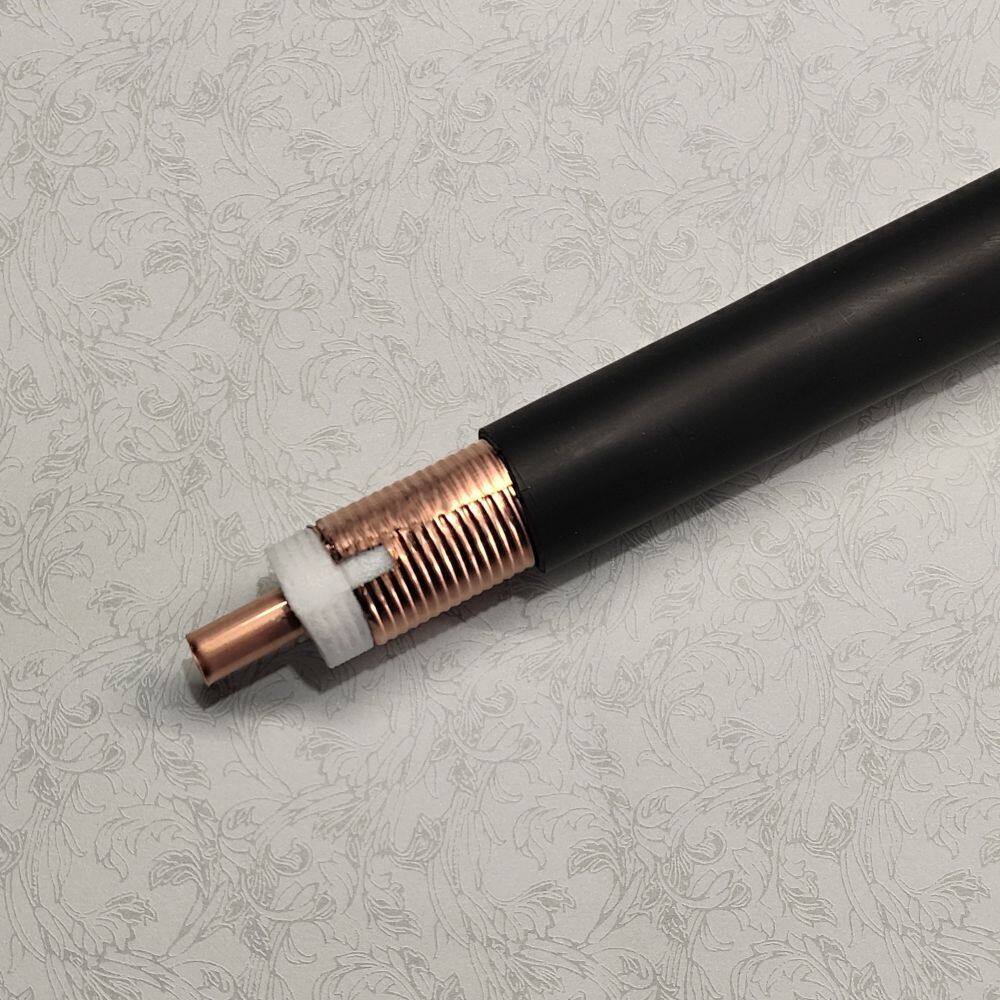

7/8" Radiating cable HLRCTCYZ-50-22M(7/8")Leaky cable
1、Leaky cable functions as a distributed antenna to provide communications in tunnels, mines
and large building complexes and is the solution for any application in confined areas.
2、Slots in the copper outer conductor allow a controlled portion of the internal RF energy to be
radiated into the surrounding environment. Conversely, a signal transmitted near the cable will couple into the slots and be carried along the cable length.
3、This leaky cable utilize a low-loss cellular polyethylene foam dielectric and a Corrugated copper foil outer conductor which offers a superior electrical performance together with good bending properties.
4、This product is suitable for FM, TETRA350, TETRA800, GSM900,GSM-R and other wireless communication systems, with low loss and wideband characteristics.
Technical features
Structural dimensions and materials
1、Inner Conductor------ Smooth Copper Tube------------------------------------------ 9.0 mm
2、Insulation--------------Physical Foam Polyethylene-----------------------------------22.5 mm
3、Outer Condutor-------Overlapping Copper Foil---------------------------------------23.0 mm
4、Jacket----------------- Low Smoke Halogen-free Fire-retardant----------------------27.00 mm
MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS
1、Mininum Bending Radius-------------------------------------250mm
2、Repeated Bending Radius（15 times）----------------------300mm
3、Bending Torque-----------------------------------------------14.9N·m
4、Weight---------------------------------------------------------450 g/m
5、Recommended Clamp Distance------------------------------0.8-1.0mm
6、Minimum Distance to Wall------------------------------------80mm
7、Tensile Force---------------------------------------------------1350N
8、Storage Temperature---------------------------------------- -30 ℃ ~ ﹢80 ℃（LSZH)
9、Installation Temperature--------------------------------------20 ℃ ~ ﹢60 ℃（LSZH)
10、Operation Temperature--------------------------------------30 ℃ ~ ﹢80 ℃（LSZH)
ELECTRICAL SPECIFICATIONS
1、Capacitance----------------------------------------75pF/m
2、Impedance-----------------------------------------50±2Ω
3、Velocity---------------------------------------------89%
4、Insulation Resistance------------------------------＞10000MΩ•km
5、Jacket Spark---------------------------------------8KV
6、Insulation Voltage--------------------------------10KV
7、Inner Conductor DC Resistance------------------1.8 Ω/km
8、Outer Conductor DC Resistance-----------------3.2 Ω/km
9、Operating Frequency-----------------------------75~1000MHz
10、Optimum Operating Frequency----------------350~960MHz
11、Stop bands--------------------------------------480~520MHz &720~780MHz
12、VSWR
75~150 MHz------------------------------≤1.3
350~470 MHz-----------------------------≤1.3
800~960 MHz-----------------------------≤1.3
13、ATTENUATION and COUPLING LOSS
Frequency（MHz） Attenuation（dB/100m，20℃，±5%） Coupling Loss（dB，2m，50%/95%，±5dB ）
75MHz----------------------------------1.4----------------------------------------------70/72
100MHz---------------------------------1.7----------------------------------------------66/75
150MHz---------------------------------2.0----------------------------------------------70/78
350MHz---------------------------------3.1----------------------------------------------62/65
450MHz---------------------------------3.6----------------------------------------------62/68
800MHz---------------------------------4.6----------------------------------------------60/65
900MHz---------------------------------4.9----------------------------------------------60/64
