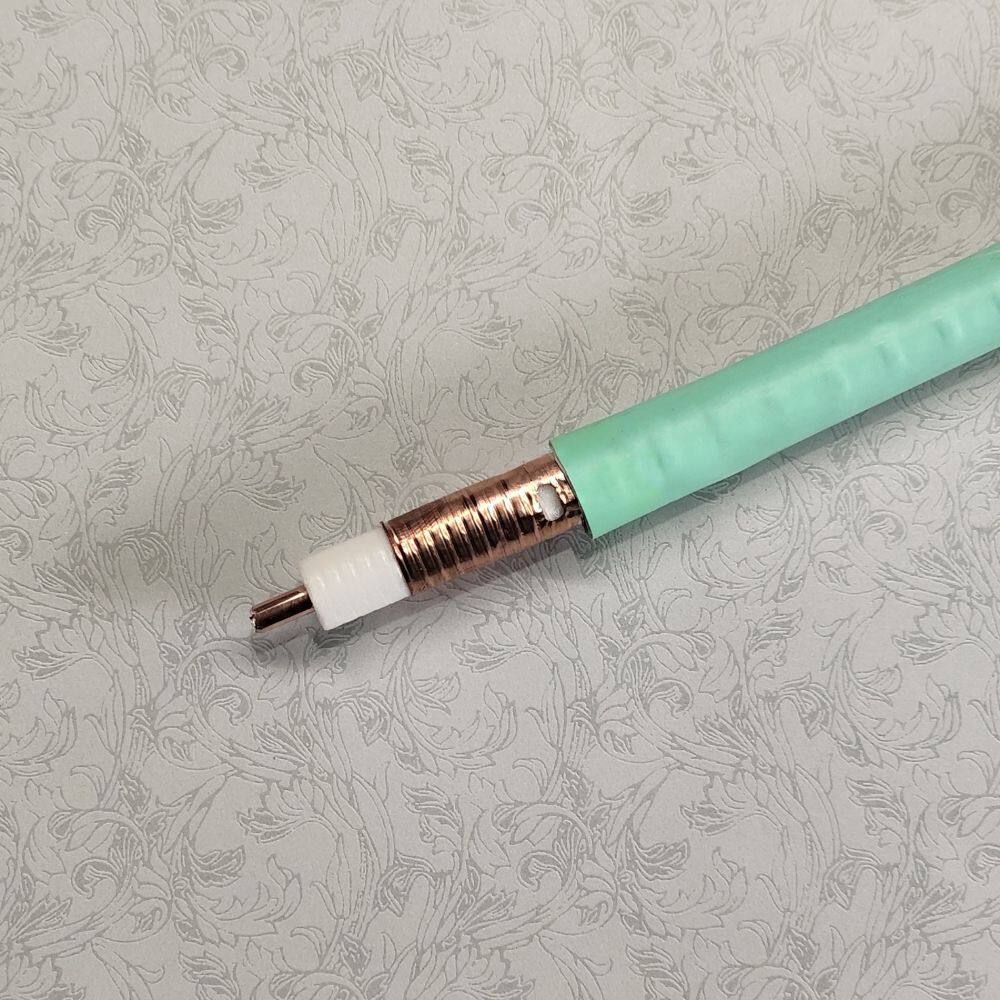

2.4GHz Radiating Cable HLRCAYZ-50-12( 1/2"）Leaky Cable

1、Leaky cable functions as a distributed antenna to provide   communications in tunnels, mines and large building complexes and is the   solution for any application in confined areas.

2、Slots in the copper outer   conductor allow a controlled portion of the internal RF energy to be radiated   into the surrounding environment. Conversely, a signal transmitted near the   cable will couple into the slots and be carried along the cable length.

3、This leaky cable utilize a   low-loss cellular polyethylene foam dielectric and a Corrugated copper   foil outer conductor which offers a superior electrical performance together   with good bending properties.

4、This product is suitable   for WLAN communication systems, with low loss characteristics.

Technical features

Structural dimensions and   materials

Inner Conductor

Copper Clad Aluminum Wire

4.8 mm

Insulation

Physical Foam Polyethylene

12.3 mm

Outer Conductor

Overlapping Copper Foil-

12.6 mm

Jacket

Low Smoke Halogen-free Fire-retardant

15.5 mm

Mechanical and environmental   specifications

Minimum Bending Radius

75mm

Repeated Bending Radius（15 times）

150mm

Bending Torque

13.5N·m

Weight

210 g/m

Recommended Clamp Distance

0.5mm

Minimum Distance to Wall

80mm

Tensile Force

1000N

Storage Temperature

-30 ℃ ~ ﹢80 ℃（LSZH)

Installation Temperature

-20 ℃ ~ ﹢60 ℃（LSZH)

Operation Temperature

-30 ℃ ~ ﹢80 ℃（LSZH)

Electrical specifications

Capacitance

75pF/m

Impedance

50±2Ω

Velocity

89%

Insulation Resistance-

＞10000MΩ•km

Jacket Spark

8KV

Insulation Voltage

6KV

Inner Conductor DC Resistance

1.65 Ω/km

Outer Conductor DC Resistance

6.5 Ω/km

Operating Frequency

2400~2500MHz

VSWR

≤1.3

Resonant Frequencies（MHz）

156, 469, 781, 1094, 1406, 1718, 2031, 2344

Attenuation and Coupling Loss

Frequency（MHz）

Attenuation（dB/100m，20℃，±5%）

Coupling   Loss（dB,2m,50%/95%，±5dB ）

         75MHz

                        1.85

                                   60/68

        150MHz

                        2.80

                                   63/74

        450MHz

                        4.95

                                   64/68

        900MHz

                        7.45

                                   63/75

       1800MHz

                       11.98

                                   58/67

       1900MHz

                       12.45

                                   58/67

       2200MHz

                       13.90

                                   58/67

       2400MHz

                       14.71

                                   54/60

       2500MHz

                       15.05

                                   59/67
