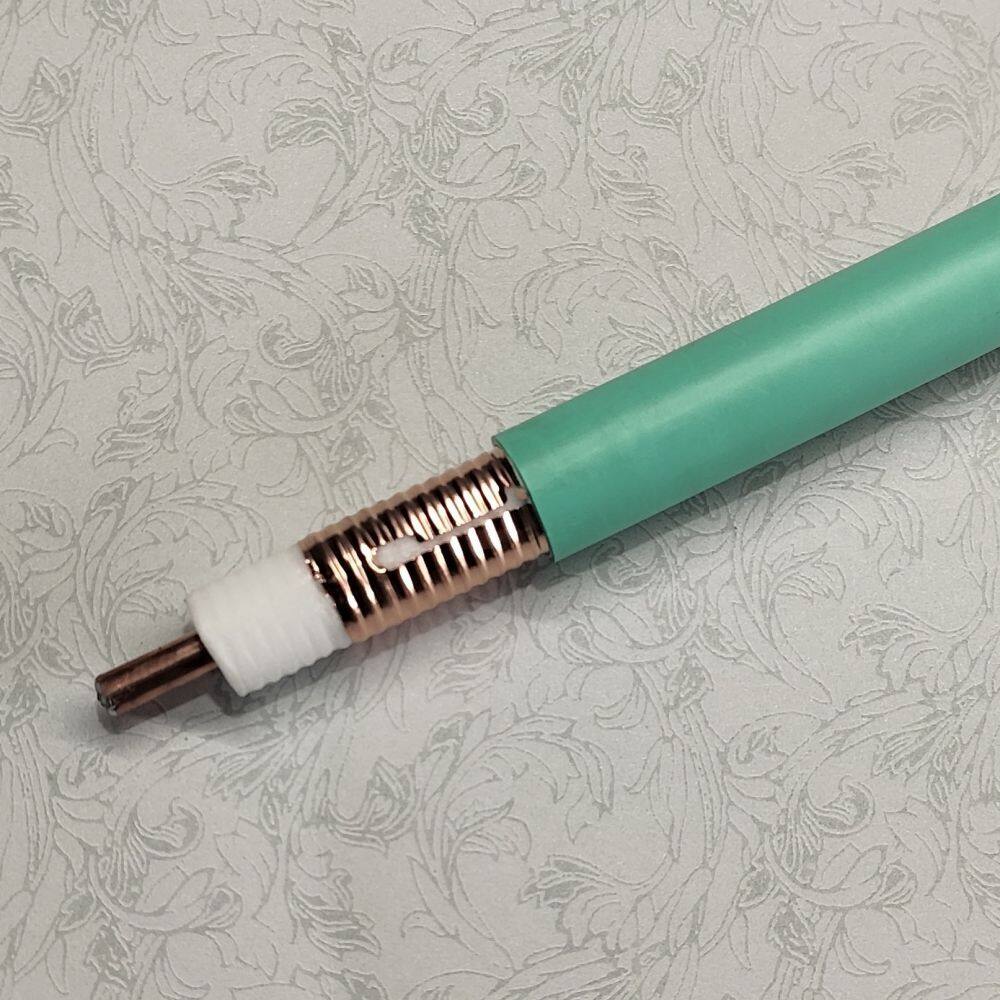

WLAN Radiating cable HLRCAYZ-50-12(1/2")Leaky cable 5.8GHz
1、Leaky cable functions as a distributed antenna to provide communications in tunnels, mines
and large building complexes and is the solution for any application in confined areas.
2、Slots in the copper outer conductor allow a controlled portion of the internal RF energy to be
radiated into the surrounding environment. Conversely, a signal transmitted near the cable will couple into the slots and be carried along the cable length.
3、This leaky cable utilize a low-loss cellular polyethylene foam dielectric and a Corrugated copper foil outer conductor which offers a superior electrical performance together with good bending properties.
4、This product is suitable for WLAN communication systems, with low loss characteristics.
Technical features
Structural dimensions and materials
1、Inner Conductor------ Copper Clad Aluminum Wire--------------------------------- 4.8 mm
2、Insulation--------------Physical Foam Polyethylene-----------------------------------12.3 mm
3、Outer Condutor-------Overlapping Copper Foil---------------------------------------12.6 mm
4、Jacket----------------- Low Smoke Halogen-free Fire-retardant-----------------------15.5 mm
MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS
1、Mininum Bending Radius-------------------------------------75mm
2、Repeated Bending Radius（15 times）----------------------150mm
3、Bending Torque-----------------------------------------------13.5N·m
4、Weight---------------------------------------------------------210 g/m
5、Recommended Clamp Distance------------------------------0.5mm
6、Minimum Distance to Wall------------------------------------50-80mm
7、Tensile Force---------------------------------------------------1000N
8、Storage Temperature---------------------------------------- -30 ℃ ~ ﹢80 ℃（LSZH)
9、Installation Temperature--------------------------------------20 ℃ ~ ﹢60 ℃（LSZH)
10、Operation Temperature--------------------------------------30 ℃ ~ ﹢80 ℃（LSZH)
ELECTRICAL SPECIFICATIONS
1、Capacitance----------------------------------------75pF/m
2、Impedance-----------------------------------------50±2Ω
3、Velocity---------------------------------------------89%
4、Insulation Resistance------------------------------＞10000MΩ•km
5、Jacket Spark---------------------------------------8KV
6、Insulation Voltage--------------------------------6KV
7、Inner Conductor DC Resistance------------------1.65 Ω/km
8、Outer Conductor DC Resistance------------------6.5 Ω/km
9、Operating Frequency-----------------------------5000~6000MHz
10、Optimum Operating Frequency----------------5000~5800MHz
12、VSWR
5000~5850 MHz------------------------------≤1.4
13、ATTENUATION and COUPLING LOSS
Frequency（MHz） Attenuation（dB/100m，20℃，±5%） Coupling Loss（dB，2m，50%/95%，±5dB ）
5000MHz---------------------------------33----------------------------------------------63/68
5100MHz---------------------------------32----------------------------------------------63/68
5200MHz---------------------------------32----------------------------------------------63/69
5500MHz---------------------------------29.5--------------------------------------------64/70
5800MHz---------------------------------29----------------------------------------------64/70
