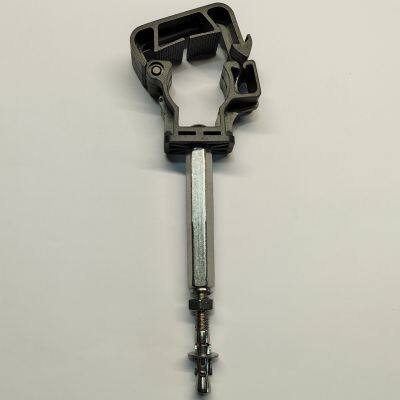

Double Self-locking Clamp for 1-1/4“radiating Cable

Double self-locking clamp for 1-1/4“radiating cable

PRODUCT DESCRIPTION

1. 1. It is used for the installation of highway, low-speed railway tunnel and indoor signal coverage  Radiating Coaxial Cable. It has the advantages of simple, safe and efficient, and can meet the requirements of less than or equal to 200km/h train speed requirements.

2. 2. It is suitable for 1-1/4 " Radiating Coaxial Cable, fixed Radiating Coaxial Cable orientation, clamping Radiating Coaxial Cable to prevent its movement.

3. 3. All metal parts are made of high quality 304 or stainless steel, We can also provide 316 stainless steel material according to customer needs.

4. 4. Halogen free and environmentally friendly. Compliant with ROHS directive.

TECHNICAL INDEX

    Character of service

1.   1. Ambient temperature during use :                     －45 ℃～＋85 ℃

2.   2. Ambient temperature during installation:          －20℃～＋60 ℃

3.   3. Relative humidity for reliable operation:             RH≤95%

   Environmental performance

1. 1. low temperature, -40 ℃±2 ℃, 72h                                                           No crack

2. 2. high temperature, 150 ℃±2 ℃, 72h                                                         No crack

3. 3. GDJS，25 ℃±3 ℃，＋80 ℃±2 ℃，（93±3）%，24h,10 times            No crack

4. 4. Salt spray resistance property，35 ℃±2 ℃，5 %，240 h                      No red rust

5. 5. Solar radiation resistance                                                                        No powder

Mechanical Specifications

1. 1. Maximum Load                                          1500N  (minimum)

2. 2. Shear capacity                                           1000N  (minimum)

3. 3. Axial pull-out force                                      150N   (minimum)


MATERIAL INFORMATION

1. 1. Non metallic parts                                     Nylon PA66

2. 2. metallic parts                                            304 Stainless steel

Cable compatibility

1. 1. Compatible radiating cable diameter, minimum              36mm

2. 2. Compatible radiating cable diameter, maximum             39mm

3. 3. Nominal Size                                                                   37.5mm

Recommended / Maximum Clamp Spacing              1.0～1.3m

Minimum Distance to Wall                                           80mm
