High Quality Automatic Tablet Press Machine Tablet Making Machine/maker

FOB Price

US$ 5000 - 20000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	RichSmart	Place of Origin	China
Model Number	GZP Series	Type	Rotary Tablet Press
Certification	ISO CE	After-sales Service Provided	Engineers available to service machinery overseas
Weight	1300KG	Dimension(LWH)	76010001750
Production Capacity	70,000-198,000	Condition	New
Voltage	220V 380V 50/60HZ	Power(W)	5500
Max. Tablet Diameter(mm)	70,000-198,000	Max. Tablet Thickness(mm)	0.5-8
Max. Pressure(KN)	16

Product Description

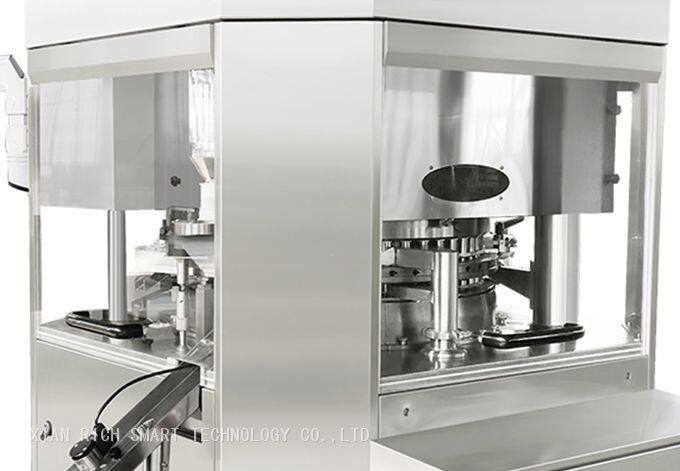

GZP Series High Quality Automatic Rotary Tablet Press Machine

Applications:
The GZP Series Automatic Pharmaceutical Food Dishwasher Vitamin C High Quality Intelligent Rotary Tablet Press provides new design principle, which makes standardization, modularity and series design come true. The characteristic of machine is high-precision, sub high-speed and automation. It is the best choice for high output and large batch production

Product Description

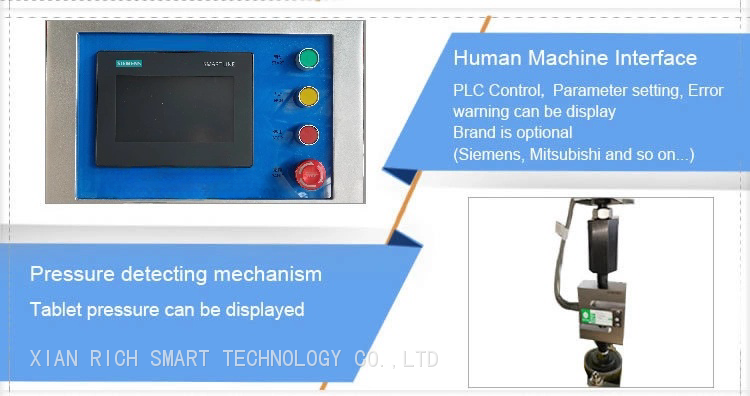

1. Adopted HMI & PLC control with automatic overload protection system.

2. Adopted force feeder, it can press different kinds of powder.

3. Automatic oil lubrication system, low noise & stable working when high speed running.

4. Adopted pre-press & main-press pression.

5. Automatic compensation of powder. (Optional function)

6. Monitoring pressure of each punches and display the pressure on HMI. There are two channels for qualified tablets and defective tablets. The defective tablets can be rejected out automatically. (Optional function)

Technical Parameter

Model	GZP-16	GZP-23	GZP-30
Punch Quantity(Sets)	16	23	19
Tooling Type(IPT)	D	B	BB
Main. Pressure(KN)	100	100	100
Pre. Pressure(KN)	16	16	16
Max. Tablet Diameter(mm)	25	16	13
Max. Irregular Depth(mm)	≤25	≤19	≤16
Die Diameter(mm)	38.1	30.16	24
Punch Diemeter(mm)	25.35	19	19
Punch Lenght(mm)	133.6	133.6	133.6
Max. Filling Depth(mm)	20	20	20
Max. Thickness(mm)	0.5-8	0.5-8	0.5-8
Rotary Speed(r/m)	22-110	22-110	22-110
Max. Output Capacity(pcs/h)	20,000-100,000	50,000-150,000	70,000-198,000
Powder(kw)	5.5	5.5	5.5
Overall size(mm)	76010001750	76010001750	76010001750
Machine Weight(kg)	1300	1300	1300
