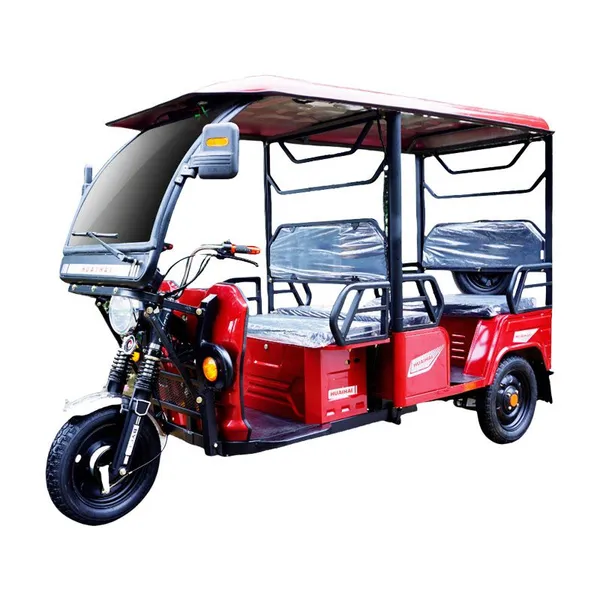

Simply Equipped Tuktuk With Rechargeable Lead-Acid Battery Electric Tricycle E-Trike 3 Wheeler 3-Wheel Motorcycle From Source Factory
- Shanghai Port
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 30 days
You May Like
-
2025 Hot-Selling 200cc Strong Power Durable Motortricycle Trike 3-Wheel Moped Scooter 3 Wheeler for Cargo Transport
-
Hot Selling Indian Style Tuktuk Passenger Motortricycle 3 Wheeler 3-Wheel Gas Moped Scooter 200cc Engine Water Cooling With Passenger Carriage and Rain Canvas
-
Heavy Load Cargo E-Bike Electric Bicycle 2 Wheeler With Large Rear Seat and Rack Cheap Means of Transport
-
Hot Selling Electric Bike E-Bike Electric 2 Wheeler Bicycle Electric Scooter E-Scooter With Low Price
-
EEC Certified Comfortable Leisure Sports Electric 2-Wheeler Bike Motorcycle Bicycle Motorbike Scooter With Modern Design
-
High Quality and Good Looking Electric Tricycle E-Trike 3 Wheeler Motortricycle For Cargo Transport
Product Details
Brand Name | HuaiHai | Place of Origin | China | |
Model Number | K21 | Size | 2800*1000*1800mm | |
Certification | EEC | Voltage | 48V | |
Power | > 800W | Body Type | Closed | |
Driving Type | Electric | Use For | Passenger |
Product Description
Product Parameters
Specifications | |||
Overall size | 2800*1000*1800mm | Rear axle | Integrated rear axle |
Wheel base | 2175mm | Minimum turning radius | 3m |
Wheel track | 850mm | Minimum ground clearance | 160mm |
cargo box size | 1320*1000*415mm | Tire (F/R) | 3.50-12/3.50-12 |
cargo box type | Passenger carriage | Brake mode | Drum brake |
Motor type | 48V1000W BLDC motor | Max. speed | 30km/h |
Rated power | 1000W | Battery | 48V120Ah lead acid battery |
Driving type | Gear drive | Mileage per charge | 80-100Km |
Controller | 24 tubes BLDC controller | Charging time | 7-8h |
Max. current | 45A | CVW | 260Kg |
Front suspension | φ43 outer spring shock absorber | Rated GVW | 300Kg |
Rear suspension | 6 pcs leaf spring+ spring shock absorber | Max. GVW | 800Kg |
Others: | 1. Secondary forming drawing process wind shield. 2. High strength integrated stamping ceiling, beautiful appearance. 3. Inlaid aluminum injection molded foot pedals. 4. Push-button Switch wiper + Boneless wiper arm. More convenient operation. 5. Enlarged rearview mirror; the driving vision is wider. 6. Dual channel MP3 player with reading light. 7. Front φ43 outer spring hydraulic shock absorber, improve the ride comfort through the spring shock absorption ; Spring shock absorption combined with internal hydraulic shock absorption, ensure the bearing capacity of the vehicle. 8. USB mobile phone charging stand, supply continuous power for mobile phone. 9. Driver's seat is equipped with storage box, water cup holder. 10. Front 130 brakes, three interchangeable wheels. 11. Rear suspension adopts 6-piece coil lug leaf spring structure and spring damping, making the riding more comfortable. 12. High quality seat cushion backrest, ride more comfortable. 13. Safety handles are provided in the passenger area. 14. With full-size model rim tires, travel are secured. 15. The rear door is equipped with handle, which makes maintenance more convenient and quick. 16. LED turn signal, brake light, running light, driving at night is safer. | ||
FAQ
Q1: Can I have samples before mass production?
A:Yes,we have sample stock in Munster, German, you can order sample first. Please notice that our sample price is different from mass production prices
Q2: Do you have overseas service center?
A: Yes, we have service centers in Europe and we provide call center, maintenance, spare parts, logistics and warehousing services covering the whole of Europe, support door to door transport, returning process etc.
Q3:Do you accept OEM or ODM?
A:Yes we would accept OEM in certain year purchase quantity. Right now the minimum order quantity is 10,000 per year.
Q4:Can I add my own logo or choose my own colors?
A:Yes you can. But for change logo and colors, the MOQ is 1000 pieces per order or for specific discussion.
Q5: Do you have e-bike, e motorcycle?
A: Yes we have e-bike and e motorcycle, but currently we cannot do dropshipping support.
Q6:What is the payment term?
A:For sample order,it's 100% TT advance.
For mass production order,we accept payments TT, L/C,DD,DP, Trade Assurance.
Q7:What is your delivery time?
A: For sample order,it should take 2 week to prepare and shipping time depends on distance from our warehouse in Europe or US to your office location
For mass production order,it will take 45-60 days of production and shipping time depends on sea freight
Q8: What certificate do you have?
A: We have CE,TUV, KBA, FCC,MD, LDV, RoHS, WEEE etc. Also we can provide any certificate relates to products.
Q9: How does your factory perform quality control?
A: We would start quality control process since the beginning of production. During the whole process we would proceed IQC,OQC,FQC, QC, PQC and etc.
Q10:.What's your after-sales service like?
A:The whole product warranty of our product is 1 year, and for agents, we will send some spare parts and provide maintenance video to help them repair together. If it is the cause of the battery or the damage is serious,we can accept the refurbishment of the factory.
Q11: Where is your factory located? How can i visit your factory?
A: We are a group company, different product produced in different city due to we are making full use of industrial resources and supplying chain, now we have more than 6 production bases of electric scooters in Zhejiang, Guangdong ,Jiangsu, Tianjin etc. Please contact us for arrange visits.
