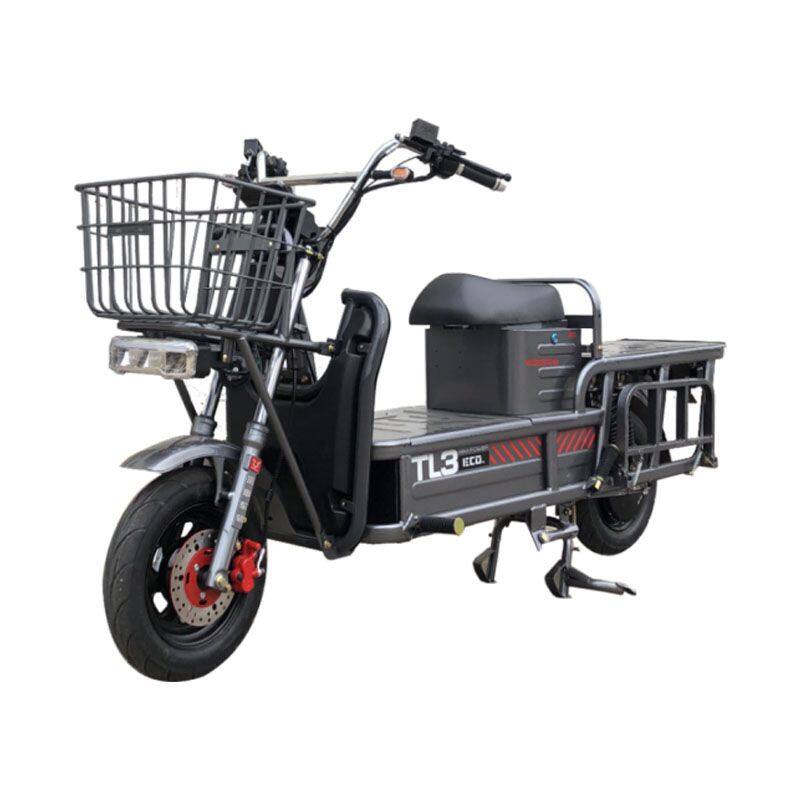

Help CenterHeavy Load Cargo E-Bike Electric Bicycle 2 Wheeler With Large Rear Seat and Rack Cheap Means of Transport
Related Products
-
Hot Selling Electric Bike E-Bike Electric 2 Wheeler Bicycle Electric Scooter E-Scooter With Low PriceUS$ 120 - 200MOQ: 50 Pieces -
EEC Certified Comfortable Leisure Sports Electric 2-Wheeler Bike Motorcycle Bicycle Motorbike Scooter With Modern DesignUS$ 600 - 800MOQ: 50 Pieces
-
New Arrival Modern Design of Electric Motorcycle Motorbike E-Scooter Installed With Lead-Acid BatteryUS$ 450 - 700MOQ: 10 Pieces
-
Hot Selling Lithium Battery and Lead Acid Battery Electric Motorcycle E-Scooter With Red Color and 100km Driving RangeUS$ 150 - 250MOQ: 50 Pieces
-
Hot Selling Electric Bicycle E-Bike Electric Pedal Scooter Electric Motorcycle 2 Wheeler With LED Light and Large TyreUS$ 200 - 400MOQ: 10 Pieces
Product Parameters
|
Specifications | |||
| overall size | 2150*860*1090mm | Minimum turning radius | 2.15m |
| wheel base | 1570mm | Minimum ground clearance | 115mm |
| carriage size | 700*420(Without cargo box) | Tire (F/R) | 3.00-10/3.00-10 |
| Motor type | 60/72V1200W permanent magnet synchronous motor | Brake mode | Hand held front and rear oil disc brakes |
| Rated power | 1200W | Max. speed | 40km/h |
| Driving type | Motor drive | Battery | 72V58ah lead acid battery |
| Controller | 60/72V18 tube controller | Mileage per charge | 140km-150km |
| Front suspension | φ31 internal spring damping | Charging time | 6-8h |
| Rear suspension | 6 pcs spring shock absorber | CVW | 103Kg |
| Others: | 1. Three - layer integrated curved beam structure, stronger bearing capacity. 2. Disc brake system, front and rear is equippend with the standard φ180 disc brake, φ25 cylinder calipers, greatly shorten the braking distance, improve the safety level. 3. Increased the size of the back seat to meet the needs of people and cargo, both sides are equipped with rope hooks, convenient for binding goods. 4. Thickened foot pedals. 5. High speed motor, large power, large torque, faster acceleration, with higher safety practicability. 6. Mobile phone Bluetooth remote control, with a standard anti-theft alarm, realize remote intelligent control. 7. LED LCD screen, vehicle information is easy to get from display, to achieve human-computer interaction convenience. 8. LED high brightness headlights, turn signals, high luminous intensity, improve driving safety at night. 9. High strength large size front vehicle basket, stronger loading capacity. 10. High-density foam cushion, sitting for a long time without deformation, more comfortable riding. 11. Foldable foot pedal, can place small cargo, improve loading capacity. 12. Double support leg structure design, meet all kinds of scene parking. |
||
FAQ
Q1: Can I have samples before mass production?
A:Yes,we have sample stock in Munster, German, you can order sample first. Please notice that our sample price is different from mass production prices
Q2: Do you have overseas service center?
A: Yes, we have service centers in Europe and we provide call center, maintenance, spare parts, logistics and warehousing services covering the whole of Europe, support door to door transport, returning process etc.
Q3:Do you accept OEM or ODM?
A:Yes we would accept OEM in certain year purchase quantity. Right now the minimum order quantity is 10,000 per year.
Q4:Can I add my own logo or choose my own colors?
A:Yes you can. But for change logo and colors, the MOQ is 1000 pieces per order or for specific discussion.
Q5: Do you have e-bike, e motorcycle?
A: Yes we have e-bike and e motorcycle, but currently we cannot do dropshipping support.
Q6:What is the payment term?
A:For sample order,it's 100% TT advance.
For mass production order,we accept payments TT, L/C,DD,DP, Trade Assurance.
Q7:What is your delivery time?
A: For sample order,it should take 2 week to prepare and shipping time depends on distance from our warehouse in Europe or US to your office location
For mass production order,it will take 45-60 days of production and shipping time depends on sea freight
Q8: What certificate do you have?
A: We have CE,TUV, KBA, FCC,MD, LDV, RoHS, WEEE etc. Also we can provide any certificate relates to products.
Q9: How does your factory perform quality control?
A: We would start quality control process since the beginning of production. During the whole process we would proceed IQC,OQC,FQC, QC, PQC and etc.
Q10:.What's your after-sales service like?
A:The whole product warranty of our product is 1 year, and for agents, we will send some spare parts and provide maintenance video to help them repair together. If it is the cause of the battery or the damage is serious,we can accept the refurbishment of the factory.
Q11: Where is your factory located? How can i visit your factory?
A: We are a group company, different product produced in different city due to we are making full use of industrial resources and supplying chain, now we have more than 6 production bases of electric scooters in Zhejiang, Guangdong ,Jiangsu, Tianjin etc. Please contact us for arrange visits.
