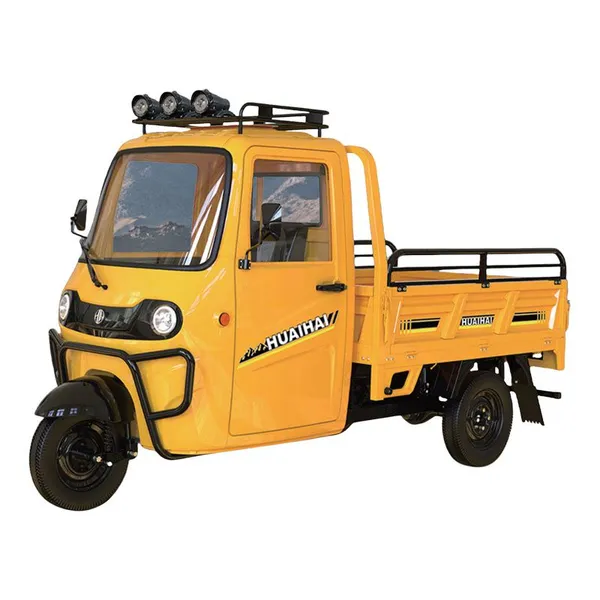

Help Center2025 Hot-Selling 200cc Strong Power Durable Motortricycle Trike 3-Wheel Moped Scooter 3 Wheeler for Cargo Transport
Related Products
-
Heavy Load 200cc Cargo Motortricycle Trike 3 Wheeler Scooter Adult Moped From Source Factory ChinaUS$ 700 - 800MOQ: 20 Pieces -
Hot Selling Indian Style Tuktuk Passenger Motortricycle 3 Wheeler 3-Wheel Gas Moped Scooter 200cc Engine Water Cooling With Passenger Carriage and Rain CanvasUS$ 680 - 900MOQ: 50 Pieces
-
Heavy Load Cargo E-Bike Electric Bicycle 2 Wheeler With Large Rear Seat and Rack Cheap Means of TransportUS$ 100 - 200MOQ: 50 Pieces
-
Hot Selling Electric Bike E-Bike Electric 2 Wheeler Bicycle Electric Scooter E-Scooter With Low PriceUS$ 120 - 200MOQ: 50 Pieces
-
EEC Certified Comfortable Leisure Sports Electric 2-Wheeler Bike Motorcycle Bicycle Motorbike Scooter With Modern DesignUS$ 600 - 800MOQ: 50 Pieces
Product Parameters
|
Specifications | |||
| Overall Size | 3530*1435*1860mm | Rear Shock Absorber | 8 pcs Leaf spring |
| Cargo Box Size | 2200*1350*340mm | Rear Axle | Chang'an entire floating rear axles /oil break/ 2gear booster/30:12 |
| Engine | 200cc/ Single cylinder/ 4 stroke/water cooling | Minimum Turning Circle Diameter | 7000mm |
| Rated Power | 10.3kw / 7500rpm | Min. Ground Clearance | 180mm |
| Max. Torque | 14.2N.m /5500rpm | Tyre | 5.00-12/5.00-12 |
| Cylinder Bore * Stroke | φ63.5mm×62.2mm | Brake Type | Oil break |
| Ignition Mode | CDI | Brake Mode | Drum/ Drum |
| Controller | 10.5:1 | Max. Speed | 60km/h |
| Transmission | 5 gears/ Cycle gear | Fuel Tank Capacity | 16L |
| Driving Mode | shaft transmission | Curb Weight | 545 kg |
| Gear Ratio | 30:12 | Maximum Payload | 600kg |
| Front Shock Absorber | φ 36mm/ Hydraulic outer front fork | Max. Designed Gross Weight | 1145kg |
| Optional | 250cc water cooling engine; 2000*1350*340mm cargo box | ||
| Features | 1. 1. Good looking appearance, luxury full stamping type simple shed, The roof is removable, facilitate transport; 2. Steering Handle control; Left and right combination switch, simple and convenient control, LED display very clear, USB phone charging port. Automotive matrix cold light headlamp, high brightness, low energy consumption, long service life; 3. Engine with a new upgraded 200CC water-cooled, left and right side cover to increase the heat sink, the engine cylinder head close to the air duct, matching the main radiator and auxiliary water tank, effectively reduce the engine oil temperature, prolong the service life of the engine. 4. 370*280mm water-cooled radiator, automatically turned on at 65°C, operating power 45W, 220mm diameter suction fan with shroud, equipped with 5L auxiliary water tank and diameter 31/23mm thickened water pipe, more coolant passing through per unit time , the heat dissipation effect is better, which can effectively improve the cooling effect, better protect the engine, and meet the needs of tropical climates; 5. 100m³ double-layer filter and dust-proof large air filter, with larger air intake, suitable for most usage scenarios, and effectively improving the purity of engine air intake; 6. The frame is a straight-through double-layer frame with enlarged main girder, and the chassis frame has a tubular structure, which improves the torsional capacity by 30%. Strong carrying capacity, rough and solid. Provide better stability for your driving; 7. The layout of the joystick has been carefully designed, and the reverse gear lever and the afterburner lever are arranged on the right side, which is more in line with the operating habits and is convenient and labor-saving; the upper-mounted design of the handbrake is more convenient to operate. Equipped with widened seats and passenger-car-grade armrests to make you more comfortable when riding, and the left and right safety armrests help you get on. |
||
FAQ
Q1: Can I have samples before mass production?
A:Yes,we have sample stock in Munster, German, you can order sample first. Please notice that our sample price is different from mass production prices
Q2: Do you have overseas service center?
A: Yes, we have service centers in Europe and we provide call center, maintenance, spare parts, logistics and warehousing services covering the whole of Europe, support door to door transport, returning process etc.
Q3:Do you accept OEM or ODM?
A:Yes we would accept OEM in certain year purchase quantity. Right now the minimum order quantity is 10,000 per year.
Q4:Can I add my own logo or choose my own colors?
A:Yes you can. But for change logo and colors, the MOQ is 1000 pieces per order or for specific discussion.
Q5: Do you have e-bike, e motorcycle?
A: Yes we have e-bike and e motorcycle, but currently we cannot do dropshipping support.
Q6:What is the payment term?
A:For sample order,it's 100% TT advance.
For mass production order,we accept payments TT, L/C,DD,DP, Trade Assurance.
Q7:What is your delivery time?
A: For sample order,it should take 2 week to prepare and shipping time depends on distance from our warehouse in Europe or US to your office location
For mass production order,it will take 45-60 days of production and shipping time depends on sea freight
Q8: What certificate do you have?
A: We have CE,TUV, KBA, FCC,MD, LDV, RoHS, WEEE etc. Also we can provide any certificate relates to products.
Q9: How does your factory perform quality control?
A: We would start quality control process since the beginning of production. During the whole process we would proceed IQC,OQC,FQC, QC, PQC and etc.
Q10:.What's your after-sales service like?
A:The whole product warranty of our product is 1 year, and for agents, we will send some spare parts and provide maintenance video to help them repair together. If it is the cause of the battery or the damage is serious,we can accept the refurbishment of the factory.
Q11: Where is your factory located? How can i visit your factory?
A: We are a group company, different product produced in different city due to we are making full use of industrial resources and supplying chain, now we have more than 6 production bases of electric scooters in Zhejiang, Guangdong ,Jiangsu, Tianjin etc. Please contact us for arrange visits.
