Product Parameters
| No. | Item | Vehicle model | A02 | A13 -RHD |
| 1 | Basic parameters and structure | Overall dimensions (L*W*H) (mm) | 3500×1500×1540 | 3500×1500×1540 |
| 2 | Wheel base (mm) | 2345 | 2345 | |
| 3 | Wheel track (front/rear) (mm) | 1310/1300 | 1310/1300 | |
| 4 | Min. groud clearance (Full load) (mm) | ≥130 | ≥130 | |
| 5 | Min. turning radius (m) | ≤4.7 | ≤4.7 | |
| 6 | Weight of No battery (kg) | 690 | 690 | |
| 7 | Curb weight (kg) | 830 | 895 | |
| 8 | Gross vehicle weight (kg) | 1130 | 1195 | |
| 9 | Max. speed (km/h) | YES100 | YES100 | |
| 10 | Max. speed (km/h) (if adopts rear axle10:1 speed ratio) |
○85 | ○85 | |
| 11 | Max. slope of climb (%) | YES≥20 | YES≥20 | |
| 12 | Max. slope of climb (%) (if adopts rear axle10:1 speed ratio) |
○≥30 | ○≥30 | |
| 13 | 0~50km/h acceleration time (S) (s) | ≤6 | ≤6 | |
| 14 | 0~50km/h acceleration time (D) (s) | ≤10 | ≤10 | |

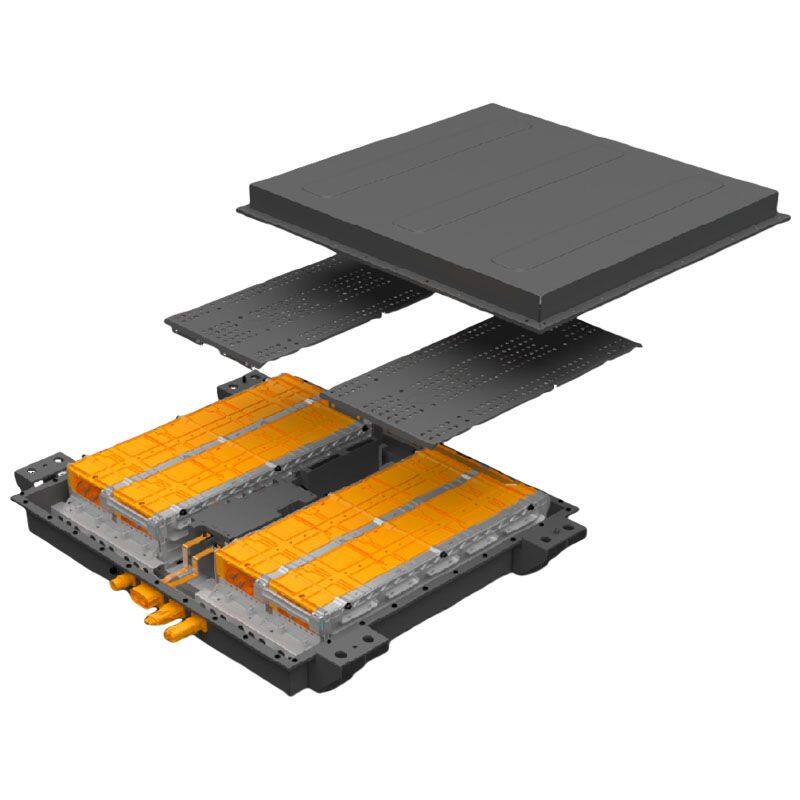

| 15 | Power Battery Type | Lithium Iron Phosphate | Lithium Iron Phosphate | |
| 16 | Battery capacity (kwh) | 15.21 | 23.96 | |
| 17 | Rated/Peak motor power (kW) | 13/25 | 13/25 | |
| 18 | Max. torque (N·m) | 100 | 100 | |
| 19 | Motor type | Permanent Magnet Synchronization | Permanent Magnet Synchronization | |
| 20 | Driving range (CLTC,KM) | ≥170 | ≥260 | |
| 21 | Driving type | direct drive of Rear axle | direct drive of Rear axle | |
| 22 | Cooling mode of Dynamic system | Natural cooling | Natural cooling | |
| 23 | Charging time (h) | 5-6 | 8-10 | |
| 24 | External discharge function | × | × | |
| 25 | 3.3kw motor (3.3 kw charger) | YES | YES | |
| 26 | 2kw motor(2kw charger) | × | × | |
| 27 | 220V charger | YES | YES | |
| 28 | Auxiliary battery(AH) | 32 | 32 | |
| 29 | Body structure | Body type | Load-bearing body | Load-bearing body |
| 30 | Body structure | Five doors and four seats | Five doors and four seats | |
| 31 | Number of doors | 5 | 5 | |
| 32 | Double sealing strip for door | YES | YES | |
| 33 | Suspension structure | Front Suspension | Mcpherson independent suspension | Mcpherson independent suspension |
| 34 | Rear Suspension | Towed arm non-independent suspension(Straight arm) | Towed arm non-independent suspension(Straight arm) | |
| 35 | Rear axle (Speed ratio) | YES8.147 | YES8.147 | |
| 36 | Rear axle (Speed ratio) | ○10 | ○10 | |
| 37 | Tyre | Tire Size | 155/65 R14 | 155/65 R14 |
| 38 | Steel Wheel | YES | YES | |
| 39 | Aluminium Wheel | ○ | ○ | |
| 40 | Hubcap | YES | YES | |
| 41 | Turn | Steering Wheel | Injection molding + foaming | Injection molding + foaming |
| 42 | Steering gear type | Rack and pinion type | Rack and pinion type | |
| 43 | Mechanical steering assist | × | × | |
| 44 | Electronic steering assist | YES | YES | |
| 45 | Brake | Front/rear brake | Disc Brake/Drum Brake | Disc Brake/Drum Brake |
| 46 | Parking brake | Mechanical handbrake, acting on the rear wheel | Mechanical handbrake, acting on the rear wheel | |
| 47 | Electric vacuum booster | YES | YES | |
| 48 | Humanized design | Driver Seatbelt warning | YES/× | YES/YES |
| 49 | Parking Warning | YES | YES | |
| 50 | Open Door Danger Warning | YES | YES | |
| 51 | Remote Control Key | YES | YES | |
| 52 | Glass lifting | Four-door electric | Four-door electric | |
| 53 | Glass - key lifting | one-button drop window of driver | one-button drop window of driver | |
| 54 | Automatic window lifting at locking car | × | × | |
| 55 | Shift Mode of Knob Type | YES | YES | |
| 56 | Wiper | boneless wiper | boneless wiper | |
| 57 | Back door opening way | Electronic switch | Electronic switch | |
| 58 | Children lock | YES | YES | |
| 59 | Same color door handle | YES | YES | |
| 60 | Interior and exterior decoration | Main driver seat adjustment | Manual four directions | Manual four directions |
| 61 | The passenger seat Adjustment | MANUAL four directions | MANUAL four directions | |
| 62 | Recline the Rear Seat | YES | YES | |
| 63 | Seat fabric Cloth | YES | YES | |
| 64 | Seat fabric with PU | ○ | ○ | |
| 65 | Main Driver/Passenger 3-point seatbelt | YES | YES | |
| 66 | The Rear Seatbelt | YES | YES | |
| 67 | The main drive visor | YES | YES | |
| 68 | Passenger visor | YES | YES | |
| 69 | The main drive visor with makeup mirror | × | × | |
| 70 | Passenger visor with makeup mirror | × | × | |
| 71 | Centrol Box | YES | × | |
| 72 | Front Reading Light | YES | YES | |
| 73 | Manual Rearview Mirror | × | × | |
| 74 | Electric Rearview Mirror | YES | YES | |
| 75 | Anti-dazzle inner rearview mirror | YES | YES | |
| 76 | Inside rearview mirror with Traffic recorder | × | × | |
| 77 | Tail wing | YES | YES | |
| 78 | Front protecting beam | YES | YES | |
| 79 | Two-color body | ○ | ○ | |
| 80 | Black film for window frame | YES | YES | |
| 81 | Luggage rack | × | × | |
| 82 | Function and configuration | Headlamp | Headlamp of Lens halogen | Headlamp of Lens halogen |
| 83 | Adjustable Headlamp Height | YES | YES | |
| 84 | Follow Me Home Lamp | YES | YES | |
| 85 | Driving Automatic Lockout System | YES | YES | |
| 86 | Air Conditioner | Manual operation | Manual operation | |
| 87 | PM2.5 Air conditioning filter element | × | × | |
| 88 | Air conditioning auto-cleaning/auto-ventilation function | × | × | |
| 89 | Daily Running Light | YES | YES | |
| 90 | Flowing turn light | YES | YES | |
| 91 | LED decorative lamp | × | × | |
| 92 | Rear fog lamp | YES | YES | |
| 93 | Halogen back light | YES | YES | |
| 94 | LED back light | × | × | |
| 95 | High brake light | YES | YES | |
| 96 | Through type tail lights | × | YES | |
| 97 | 12V Power Port | YES | YES | |
| 98 | LCD Meters | Monochrome liquid crystal +LED | Monochrome liquid crystal +LED | |
| 99 | Vehicle Central Locking Control | YES | YES | |
| 100 | Hidden mechanical door handle | × | × | |
| 101 | Whip antenna | YES | × | |
| 102 | Shark fin antenna | × | YES | |
| 103 | Rearview mirror with LED turn light | YES | YES | |
| 104 | Intelligent safety system | Driver/front Passenger Airbag | YES/× | YES/YES |
| 105 | EDR digital data recording system | YES | YES | |
| 106 | ABS/EBD | YES | YES | |
| 107 | Tire Pressure Warning | YES | YES | |
| 108 | Brake Energy Recovery System | YES | YES | |
| 109 | Pre-heating of Battery | YES | YES | |
| 110 | Battery with heating | YES | YES | |
| 111 | Rear ISO-FIX child seat port | YES | YES | |
| 112 | HAC Ramp assist system | YES | YES | |
| 113 | Driving mode | E/S/D driving mode | E/S/D driving mode | |
| 114 | Flameout-unlock | YES | YES | |
| 115 | Intelligent recharge of accumulator | × | × | |
| 116 | Power battery protection system | × | × | |
| 117 | Automatically power off at high voltage failure | YES | YES | |
| 118 | Automatic blackout at crushing | YES | YES | |
| 119 | Intelligent voice prompt | × | × | |
| 120 | Millimeter-wave Rada | YES | YES | |
| 121 | One-button start | × | × | |
| 122 | Low Speed Pedestrian Alert System | YES | YES | |
| 123 | Entertainment system | Speakers Number | 2 | 2 |
| 124 | Radio | × | × | |
| 125 | Bluetooth | YES | YES | |
| 126 | 9 inch MP5 control Screen (with radio) | YES | × | |
| 127 | 10.25 inch LCD Screen | × | YES | |
| 128 | 4G Car Terminal(T-BOX) | × | × | |
| 129 | Vehicle Backup Camera | YES | YES | |
| 130 | USB(with power port) | 1 PC | 1 PC | |
| 131 | Vehicle tool | Reflective vest | YES | YES |
| 132 | Triangle warning | YES | YES | |
| 133 | Front tow | YES | YES | |
| Remark: "YES" means with this configuration, "×" means without this configuration, and "○" means optional. | ||||
FAQ
Q1: Can I have samples before mass production?
A:Yes,we have sample stock in Munster, German, you can order sample first. Please notice that our sample price is different from mass production prices
Q2: Do you have overseas service center?
A: Yes, we have service centers in Europe and we provide call center, maintenance, spare parts, logistics and warehousing services covering the whole of Europe, support door to door transport, returning process etc.
Q3:Do you accept OEM or ODM?
A:Yes we would accept OEM in certain year purchase quantity. Right now the minimum order quantity is 10,000 per year.
Q4:Can I add my own logo or choose my own colors?
A:Yes you can. But for change logo and colors, the MOQ is 1000 pieces per order or for specific discussion.
Q5: Do you have e-bike, e motorcycle?
A: Yes we have e-bike and e motorcycle, but currently we cannot do dropshipping support.
Q6:What is the payment term?
A:For sample order,it's 100% TT advance.
For mass production order,we accept payments TT, L/C,DD,DP, Trade Assurance.
Q7:What is your delivery time?
A: For sample order,it should take 2 week to prepare and shipping time depends on distance from our warehouse in Europe or US to your office location
For mass production order,it will take 45-60 days of production and shipping time depends on sea freight
Q8: What certificate do you have?
A: We have CE,TUV, KBA, FCC,MD, LDV, RoHS, WEEE etc. Also we can provide any certificate relates to products.
Q9: How does your factory perform quality control?
A: We would start quality control process since the beginning of production. During the whole process we would proceed IQC,OQC,FQC, QC, PQC and etc.
Q10:.What's your after-sales service like?
A:The whole product warranty of our product is 1 year, and for agents, we will send some spare parts and provide maintenance video to help them repair together. If it is the cause of the battery or the damage is serious,we can accept the refurbishment of the factory.
Q11: Where is your factory located? How can i visit your factory?
A: We are a group company, different product produced in different city due to we are making full use of industrial resources and supplying chain, now we have more than 6 production bases of electric scooters in Zhejiang, Guangdong ,Jiangsu, Tianjin etc. Please contact us for arrange visits.
