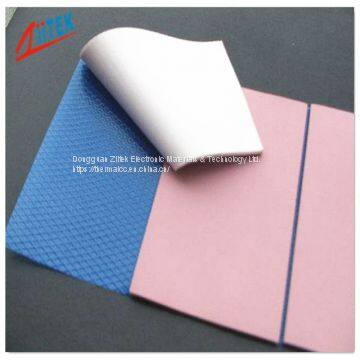

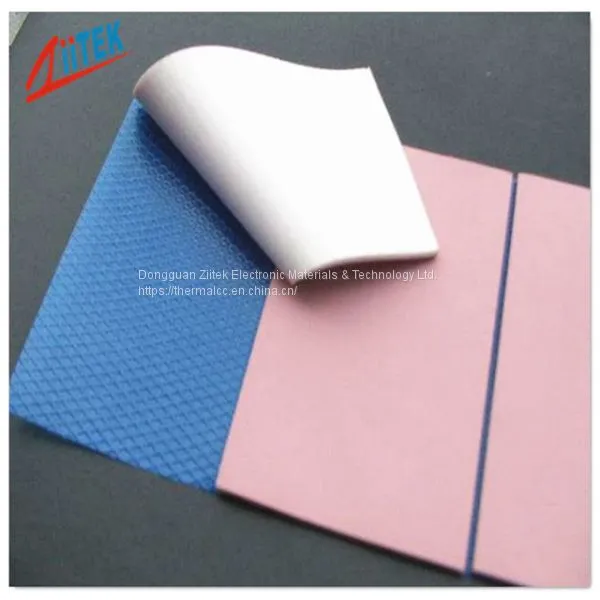

Silicone thermal conductive gap pad 1.25W/mK conductivity TIF200 -50 to 200℃ Temp for LED flood light

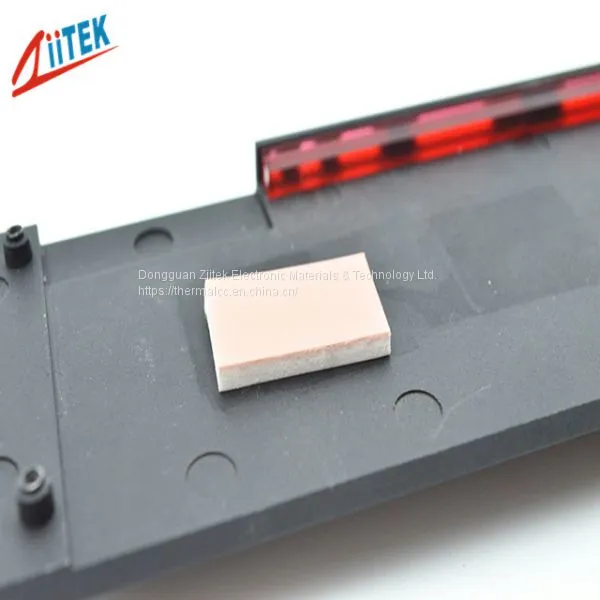

The TIF™200 Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.
Features
》Good thermal conductive: 1.25 W/mK
》Naturally tacky needing no further adhesive coating
》Soft and Compressible for low stress applications
》Available in varies thickness
Applications
》Cooling components to the chassis of frame
》High speed mass storage drives
》Heat Sinking Housing at LED-lit BLU in LCD
》LED TV and LED-lit lamps
》RDRAM memory modules
》Micro heat pipe thermal solutions
》Automotive engine control units
》Telecommunication hardware
》Handheld portable electronics
》Semiconductor automated test equipment (ATE)
Typical Properties of TIF™200 Series | |||||||||
| Product Name | TIF™200-U | TIF™200-E | TIF™200-S | Visual | Composite Thickness | hermal Impedance @10psi (℃-in²/W) | |||
| Color | Various | Visual | TIF™200-U | TIF™200-E | TIF™200-S | ||||
| Construction & Compostion | Ceramic filled silicone rubber | *** | 12 mils | 0.304mm | 0.73 | 0.75 | 0.76 | ||
| 20 mils | 0.508mm | 0.95 | 0.97 | 0.98 | |||||
| Specific Gravity | 1.75g/cc | ASTM D297 | 30 mils | 0.762mm | 1.17 | 1.18 | 1.20 | ||
| 40 mils | 1.016mm | 1.28 | 1.30 | 1.32 | |||||
| Heat Capacity | 1 l/g-K | ASTM C351 | 50 mils | 1.270mm | 1.47 | 1.49 | 1.52 | ||
| 60 mils | 1.524mm | 1.68 | 1.70 | 1.73 | |||||
| Hardness | 15 | 25 | 45 | ASTM 2240 | 70 mils | 1.778mm | 1.86 | 1.88 | 1.91 |
| Shore 00 | 80 mils | 2.032mm | 2.05 | 2.08 | 2.11 | ||||
| Tensile Strength | 425 psi | ASTM D412 | 90 mils | 2.286mm | 2.21 | 2.24 | 2.28 | ||
| 100 mils | 2.540mm | 2.37 | 2.40 | 2.44 | |||||
| Continuos Use Temp | -50 to 200℃ | *** | 110 mils | 2.794mm | 2.49 | 2.53 | 2.57 | ||
| 120 mils | 3.048mm | 2.65 | 2.69 | 2.73 | |||||
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 | 130 mils | 3.302mm | 2.82 | 2.86 | 2.91 | ||
| 140 mils | 3.556mm | 2.95 | 3.00 | 3.05 | |||||
| Dielectric Constant | 5.5 MHz | ASTM D150 | 150 mils | 3.810mm | 3.08 | 3.12 | 3.17 | ||
| 160 mils | 4.064mm | 3.20 | 3.25 | 3.30 | |||||
| Volume Resistivity | 4.0X10" Ohm-meter | ASTM D257 | 170 mils | 4.318mm | 3.34 | 3.39 | 3.44 | ||
| 180 mils | 4.572mm | 3.44 | 3.49 | 3.55 | |||||
| Fire rating | 94 V0 | equivalent UL | 190 mils | 4.826mm | 3.52 | 3.57 | 3.63 | ||
| 200 mils | 5.080mm | 3.62 | 3.68 | 3.73 | |||||
| Thermal conductivity | 1.0 W/m-K | ASTM D5470 | Visua l | ASTMD751 | ASTM D5470 | ||||
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)

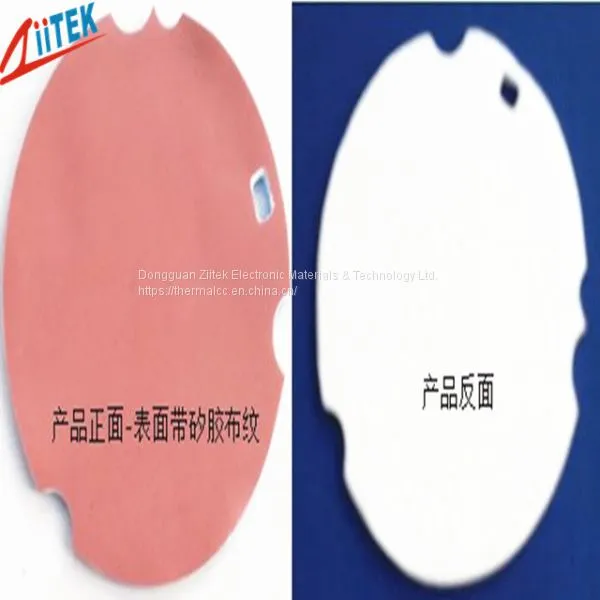

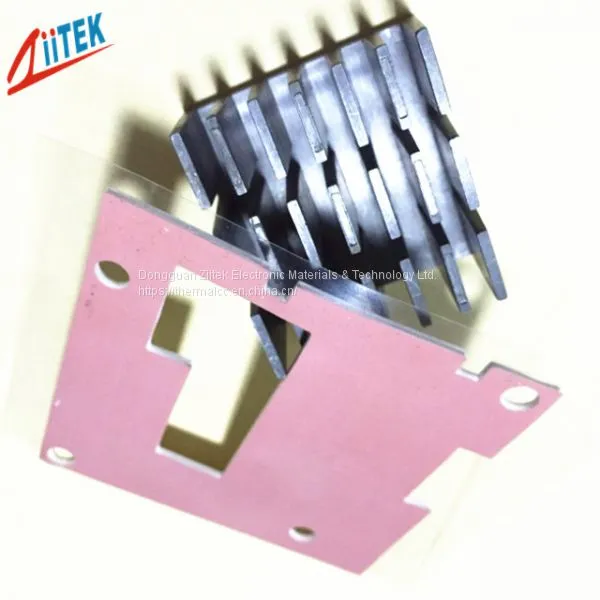

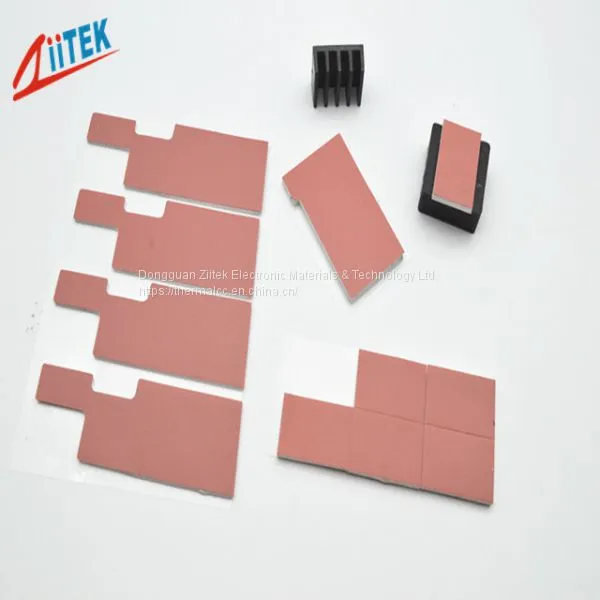

TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
