PRODUCT FUNCTION
A dedicated device for testing pedal force and handbrake force, the measuring host is connected to the control terminal via a data cable.
PERFORMANCE CHARACTERISTICS

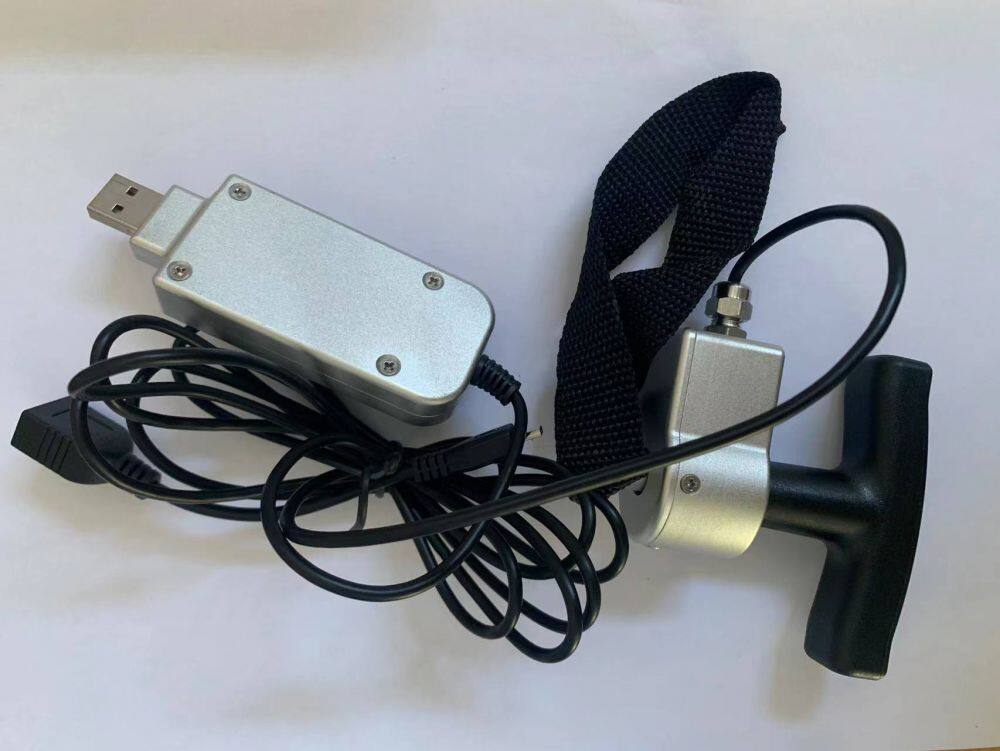

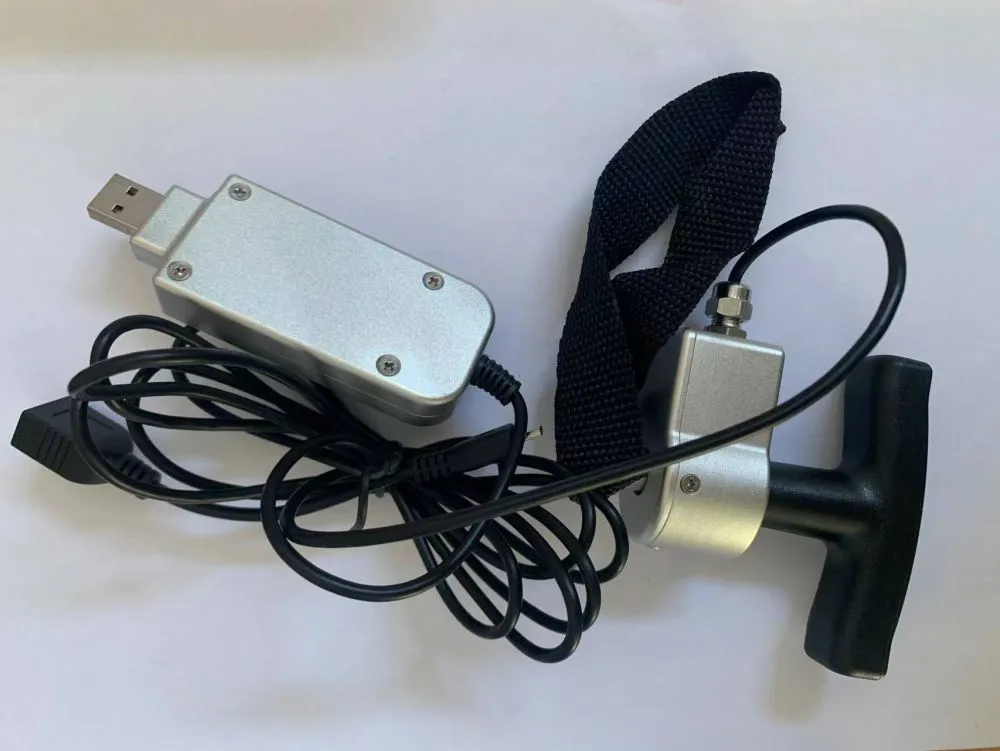

The handbrake force module adopts a strap form, no need for fixing, just needs to be wrapped around the control lever to apply force, which can simulate real operation scenarios;

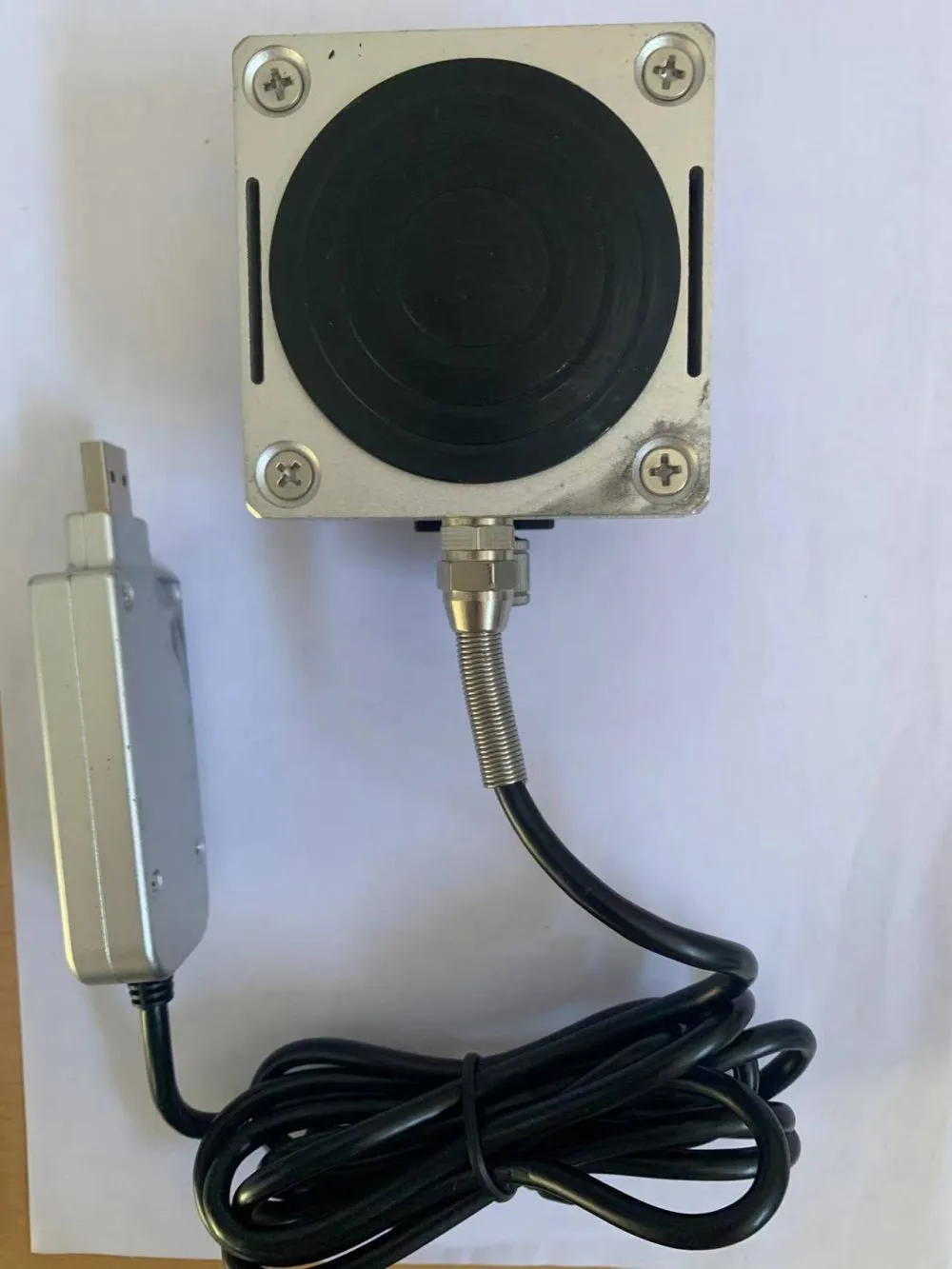

The pedal force fixture is of an automatic adjustment structure, and the size can be adjusted for self-clamping installation according to the pedal size, suitable for testing steering wheels of various specifications and orientations;
Recordable parameters: The handheld control terminal monitors and measures the changes in numerical parameters of the measurement process in real time throughout the entire process;
-
The host unit and the main data collector adopt wireless transmission mode, eliminating the need for additional signal transmission antennas;
The main body of the host is made of lightweight aluminum alloy, which is light and sturdy; the instrument's outer case adopts a high-strength box body that is dustproof and shockproof; the testing equipment is easy to operate and convenient to use, effectively improving the inspection efficiency of inspectors;
TECHNICAL PARAMETERS
Pedal Force Parameter
Force Measurement Range:0~1000N
Measurement Resolution:0.1N
Measurement Accuracy:±1%F.S
Handbrake Force Parameter
Force Measurement Range:0~1000N
Measurement Resolution:0.1N
Measurement Accuracy:±1%F.S
