PRODUCT FUNCTION
Special equipment for emergency braking vehicle stability detection, the measuring host is connected to the control terminal via Bluetooth, one measurement can complete multiple indicators such as sightseeing train emergency braking distance, braking speed, braking time, maximum brake pedal force, and emergency braking vehicle stability.
PERFORMANCE CHARACTERISTICS

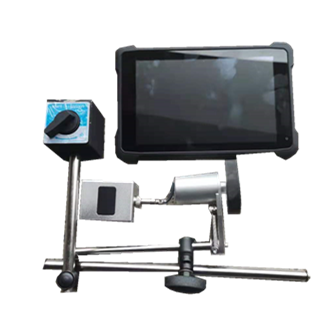

Magnetic adsorption is adopted on the side of the vehicle, and through a three-section regulating arm and tensioning device, the sensor is attached to the wheel, making the detection process more in line with regulatory requirements and improving measurement accuracy;
Adopt high-precision sensors with high sampling accuracy and fast sampling speed;
Recordable parameters: The handheld control terminal monitors and measures the changes in numerical parameters of the measurement process in real time throughout;
External 4-stage power display indicator light;
The host unit and the main data collector adopt wireless transmission mode, eliminating the need for additional signal transmission antennas;
The main body of the host is made of lightweight aluminum alloy, which is light and sturdy; the instrument's outer case adopts a high-strength box body that is dustproof and shockproof; the testing equipment is easy to operate and convenient to use, effectively improving the inspection efficiency of inspectors.
TECHNICAL PARAMETERS
Speed Measurement Range:0~50km/h
Speed Measurement Accuracy:0.05km/h
Speed Display Resolution:0.01km/h
Braking Distance:0~100m
Braking Distance Accuracy:0.05m
Braking Distance Resolution:0.01m
