Escalator Synchronization Rate Tester

Product function

Suitable for measuring the running speed,acceleration,braking distance,speed deviation,synchronization rate of escalators and moving sidewalks,as well as measuring the length and rotation speed of objects.

Performance characteristics

• The measuring host adopts high-precision velocity displacement sensors and ergonomic design;

• Measure the host's built-in screen,displaying the real-time speed of the measured object;

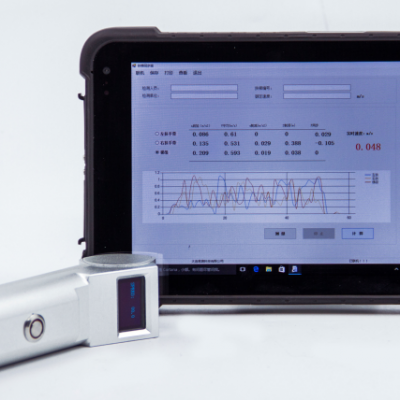

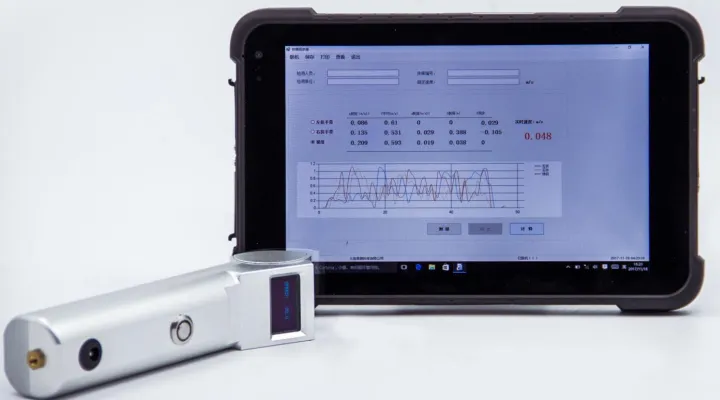

• The host is independently powered and communicates wirelessly with the handheld control terminal;

• The host case is made of lightweight aluminum alloy,which is light and sturdy;

• Accurate detection sensor data acquisition;

Technical parameters

• Speed measurement accuray：±1mm/s

• Speed measurement range：0~5m/s

• Displacement measurement accuracy：±0.5mm
