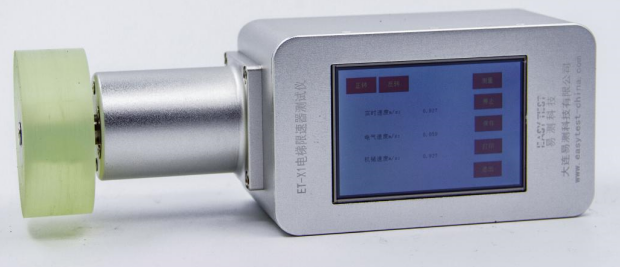

Elevator Governor Tester

 Product function

  The instrument is used to detect the electrical speed and mechanical speed of elevator governor.It applies to on-site inspections of elevator governor by special equipment inspection and testing organizations,elevator companies and elevator maintenance units.

Performance characteristics

• Two measurement modes:contact and non-contact measurement(Hall sensor speed measurement),are for choice;

• Operation,display,driving and speed measurement devices are designed to be handheld and integrated,and it is unnecessary to connect a handheld measuring terminal on site;

• Built-in 24V lithium battery,indicating no need for external power supply on site,hence safe operation and stable control;

• The uplink and downlink measurement data can be recorded three times according to the requirements of inspectors and inspection regulations;

• The non-contact measurement is realized by using a Hall sensor,which is adsorbed on the side plate of the governor by a magnetic suction device,and the magnetic bean is adsorbed on the governor wheel,hence convenient and fast installation;

• Touch screen display interface,which supports the input of Chinese characters,numbers and characters at will,features simple interface and easy operation, and displays the remaining power.

Technical parameters

• Speed measurement precision: ±0.001m/s

• Measuremnt range:0~4.3m/s
