Product function

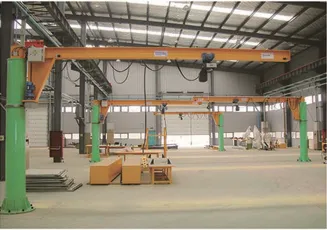

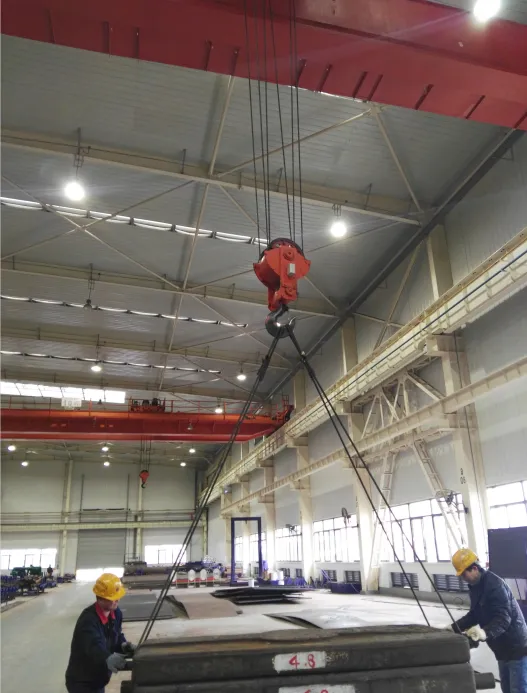

The tester is suitable for measuring the braking glide quantity of the crane, and the speed and displacement of moving parts such as hook and trolley.
Performance characteristics
High-precision and high resolution sensor is adopted,which can display the displacement and velocity curve in real time;
When measuring the braking glide quantity,it can be judged automatically without the assistance of trigger switch,so as to avoid the influence of human factors on repeatability;
The speed-time curve analysis chartttautomatically determines the speed deceleration point to ensure the accuracy and stability in the monitoring process and improve the analyzability of the measured data;
The wireless transmission mode is adopted for the main body of the host ang the main data collector,and no additional signal transmission antenna is required;
Control system platform:windows operating system,which can intelligently analyze and generate the measurement report after the measurement is completed,and can print the test report on site by wireless printer;

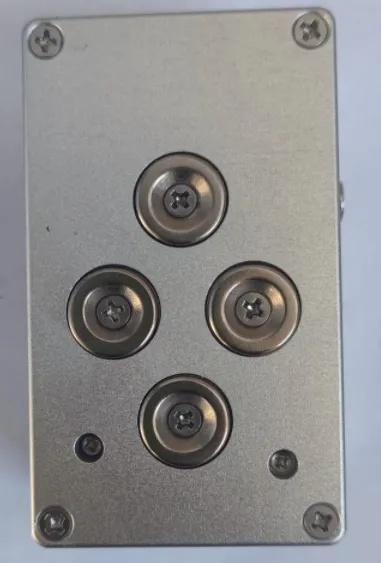

Magnetic adsorption connection is adopted, which is convenient to install and high in efficiency;
The host shell is made of light aluminum alloy,which is light and solid;
External 4-segment battery power display indicator.
Technical Specifications
Displacement measurement precision: ±0.5mm
Glide quantity measurement precision: ≤1mm
Distance measurement resolution: 0.1mm
Speed measurement range: ≤1m/s
Speed measurement precision: ≤0.01m/s
Displacement measurement range :0-10m
-
