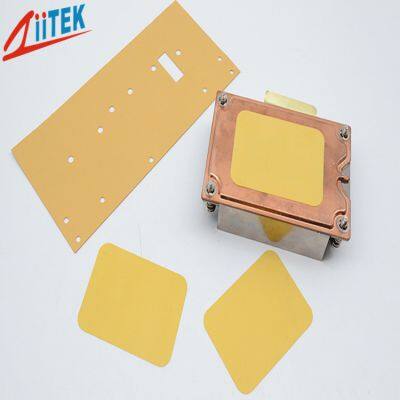

Fire Proof Thermal Insulation Materials
TIS800K Series is a high performance insulator.It combines MT Kapton film with a filled silicone rubber.The result is aproduct with good cut-through properties and excellent thermal performance.
TIS800K is designed to resist cut through in screw mounting applications while providing a more consistent breakdown voltage over other insulator constructions.The soft conformal coating on the film core provides an excellent mating surface for low pressure clip mounting applications.
Features
> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures
Applications
> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Closed cell
> General high pressure interface
| Typical Properties of TIS™800K series | ||||
| Product Name | TIS™806K | TIS™808K | TIS™810K | Test Method |
| Color | Light Amber | Visual | ||
| Composite Thickness | 0.005"/0.127mm | 0.007"/0.178mm | 0.008"/0.203mm | ASTM D374 |
| MT Kapton ® Thickness | 0.001"/0.025mm | 0.001"/0.25mm | 0.002"/0.50mm | ASTM D374 |
| Total Thickness | 0.006"/0.152mm | 0.008"/0.203mm | 0.01"/0.254mm | ASTM D374 |
| Specific Gravity | 2.0 g/cc | ASTM D297 | ||
| Tensile Strength | >17.8Kpsi | >20 Kpsi | >20 Kpsi | ASTM D412 |
| Continuous Use Temp | -40 to 130℃ | *** | ||
| Dielectric Breakdown Voltage | >4000 VAC | >5000 VAC | >6000 VAC | ASTM D149 |
| Dielectric Constant | 3.8MHz | ASTM D150 | ||
| Volume Resistivity | 3.5X10¹³ Ohm-meter | ASTM D257 | ||
| Flame Rating | 94 V0 | equivalent UL | ||
| Thermal conductivity | 1.3 W/mK | |||
| Thermal Impedance@50psi | 0.12℃-in²/W | 0.16℃-in²/W | 0.21℃-in²/W | ASTM D5470 |
Standard Thicknesses:
0.006"(0.152mm) , 0.008"(0.203mm),0.010"(0.254mm)
Consult the factory alternate thickness.
Standard Sizes:
10" x 100'(254mm x 25.4M)
Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.

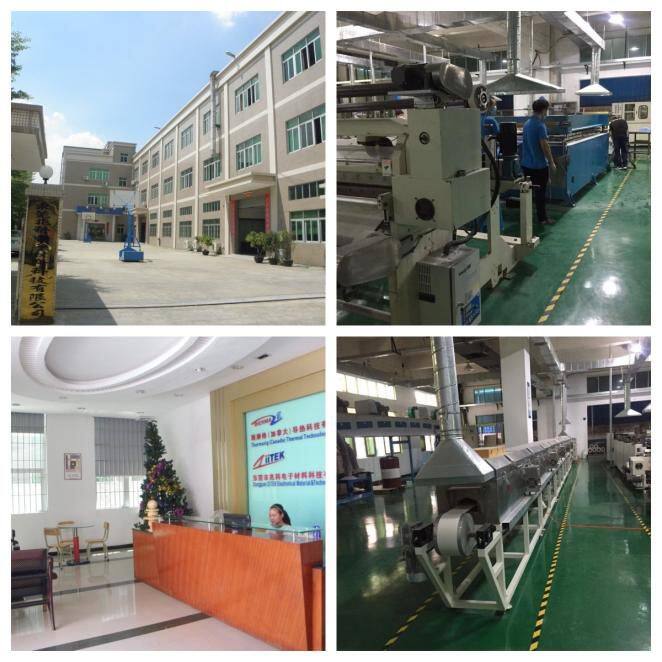

Company profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge
