Vertical Circulation Pump Axial Flow Pump ZAPLVHLMD-900 Mechanical Seal ZCMS1DL-135L With 135mm Shaft Diameter and 2205 Hard Alloy Material

Vertical circulation pump axial flow pump ZAPLVHLMD-900mechanical seal ZCMS1DL-135L

 With 135mm shaft diameter and 2205 hard alloy material

The above prices are reference prices, and prices may vary for different materials and models. Please call us for specific prices. Mechanical products are customized products, please call to negotiate and agree on the delivery time.

Online service: WEIXIN: 180 (8165) 9672 or Zipo2019; Q: 219(141)7589

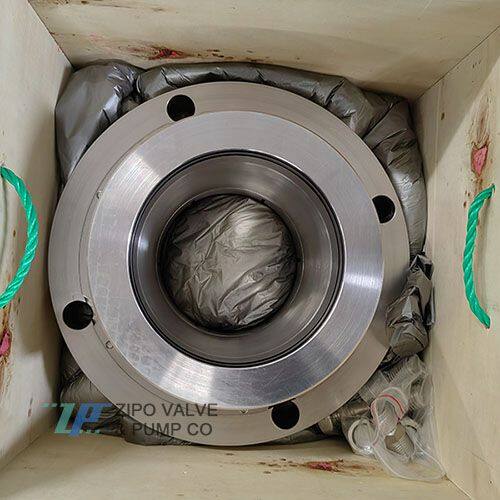

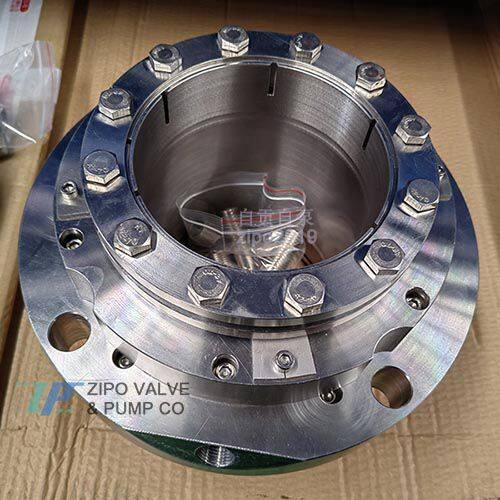

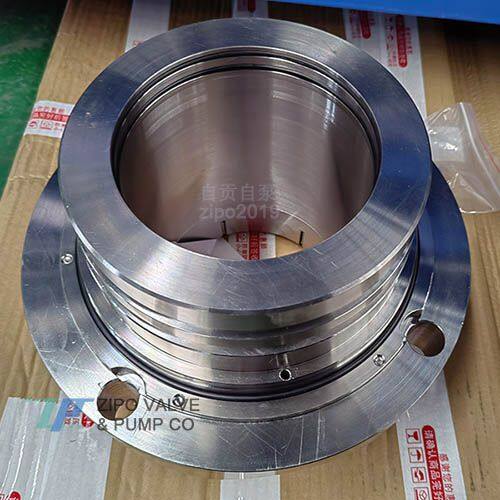

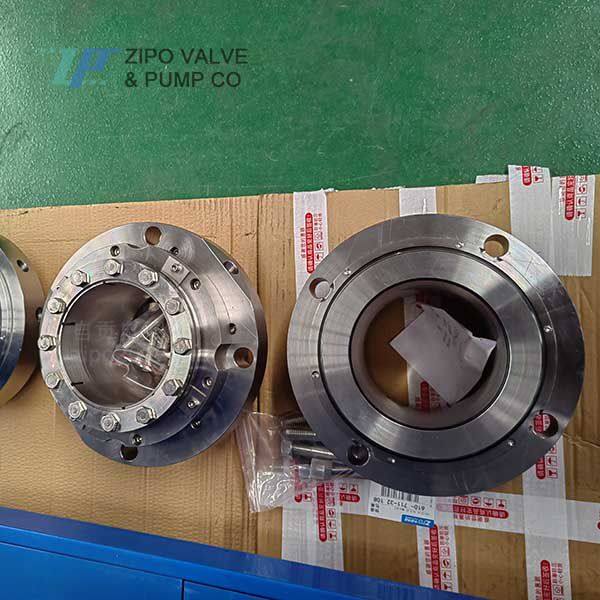

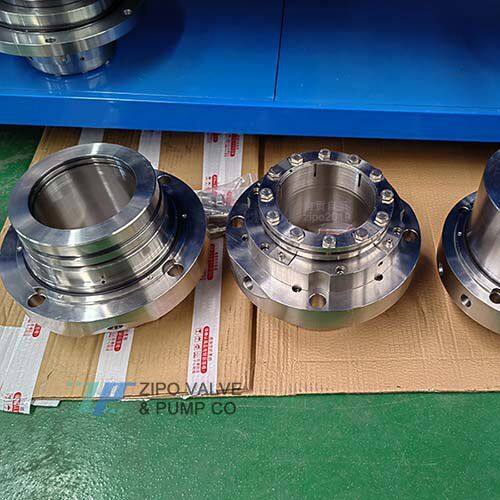

Machine seal model: ZCMS1DL-135L

Structure: Double end face, containerized, multi spring, balanced,

Flushing plan: external cooling flushing water plan

Material: 2205+ hard alloys

(Material selection prompt: Hard alloy resistant to particles and alkali; silicon carbide resistant to high temperature and acid; fluororubber resistant to acid, ethylene propylene rubber resistant to alkali; when selecting materials, it is necessary to understand the characteristics of the medium: specific medium composition, medium pH value (acidity and alkalinity), whether the medium is crystalline, medium temperature, etc.)

Shaft diameter: 135mm

Applicable media: salt media, or media with high impurity content such as gypsum and lime slurry.

Fixed content: ≤ 30% Temperature: ≤ 120 ℃ Pressure: ≤ 1.6MPa

Applicable pump type: This mechanical seal is mainly suitable for forced circulation pumps and axial flow pumps in evaporation systems.

Suitable for the following types of circulating pumps or axial flow pumps: ZAPLVHLMD-900

Manufacturer: ZIPO VALVE & PUMP CO., LTD
