Please inform us of the accurate flow, head, pipe loss, medium specific gravity, motor power and other parameters, before consulting or purchasing the product. Thanks!

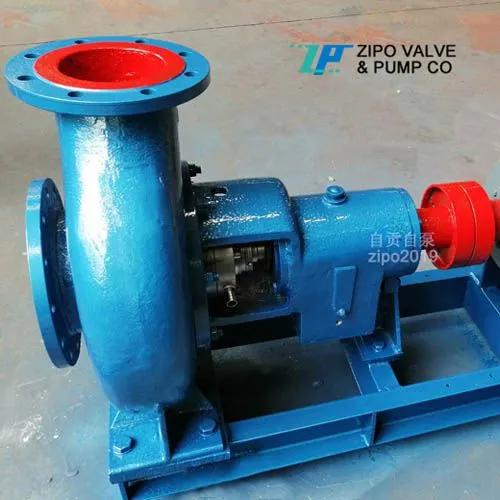

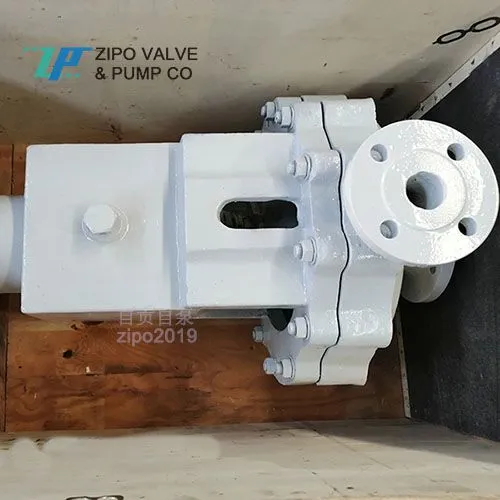

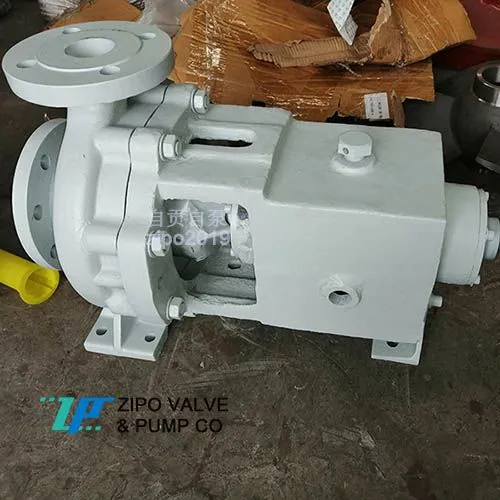

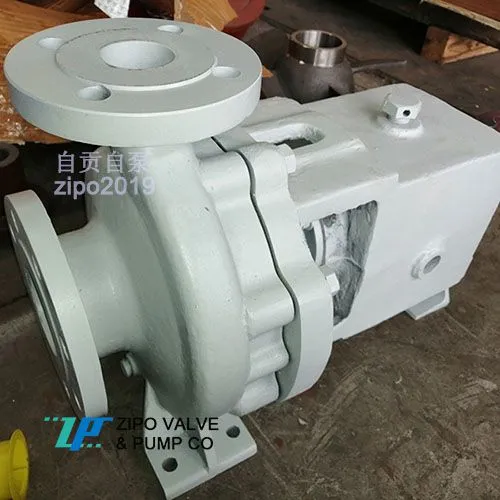

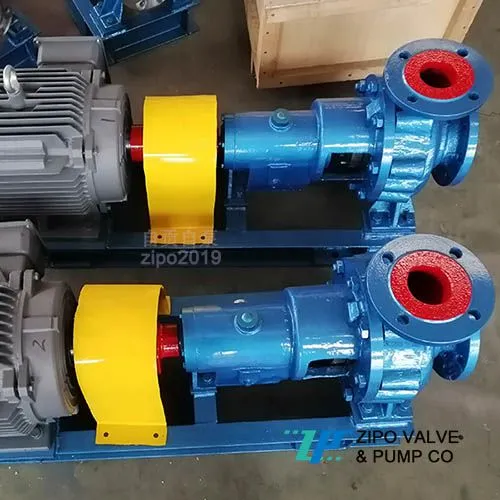

ZCP series chemical process pump is a new product developed by our company, which has a wide range of applications, such as chemical industry, petroleum, metallurgy, electric power, papermaking, pharmaceutical, synthetic fiber and other industrial sectors, used to transport corrosive, neutral liquid containing micro fine particles. .
ZCP pump absorbs the advanced technology at home and abroad. On the basis of summing up the technical defects of ZIH and ZIP chemical pumps, the horizontal single suction cantilever centrifugal pump is developed, designed and renewed. The pump has excellent performance, good cavitations resistance and strong bearing capacity (large bracket).
All bearings are domestic high-quality bearings, reliable operation and long service life. The bearings of transmission parts are installed by hot sleeve, without damage to other parts.
Cooling water is used to cool down the transmission bearing box, so that the bearing lubricating oil and bearing temperature are controlled.
The medium seal adopts the cartridge mechanical seal to ensure the normal use in the transportation, high temperature, high pressure, containing fine particles and special medium.
ZCP pump performance range (design point): Quantity of Flow 3.2 ~ 400m3 / h, Head: 5 ~ 200m, transmission medium temperature is generally - 20 ℃ ~ 150 ℃, according to the corrosion of the transmission medium to the pump, the user can select the corresponding corrosion-resistant materials.
ZCP series chemical process pump is a horizontal single-stage single suction cantilever centrifugal pump with novel structure, convenient maintenance, smooth and reliable operation. It is a new product of renewal. Welcome to consult and purchase ZCP / ZBG corrosion and high temperature resistant chemical process pump.
Model Code:
ZCP50-32-125~ZCP50-32-250B,ZCP65-50-125~ZCP65-50-160A,ZCP80-65-125~ZCP80-65-160A,ZCP80-50-200~ZCP80-50-315,ZCP100-80-125~ZCP100-80-160,ZCP100-65-200~315,ZCP150-125250~400,ZCP200-150-250~400,ZCP250-150-250~400A, ZCP250-150-250~ HZCPBGJK250-150-400A
The common used materials are mainly 304, 304L, 316, 316L, 2205, 2507, TA2, etc.
Manufacturer: ZIPO VALVE & PUMP CO., LTD
