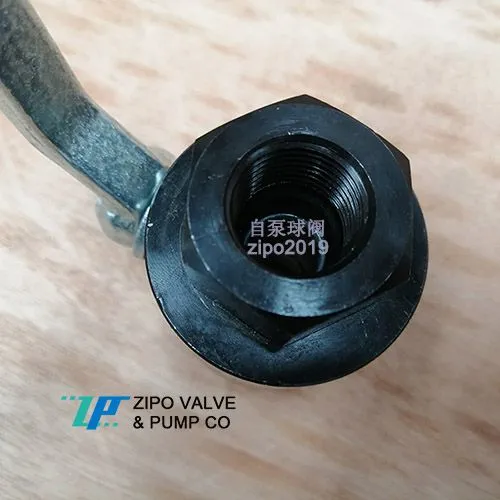

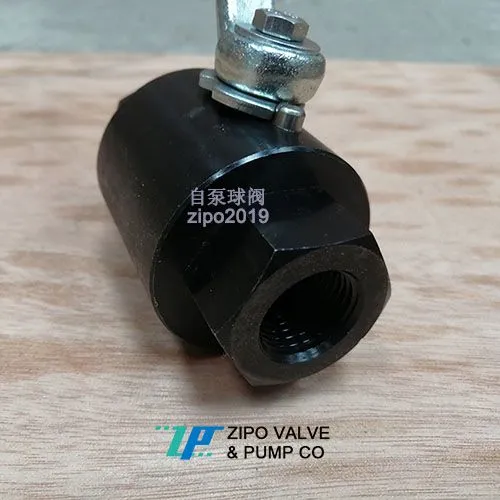

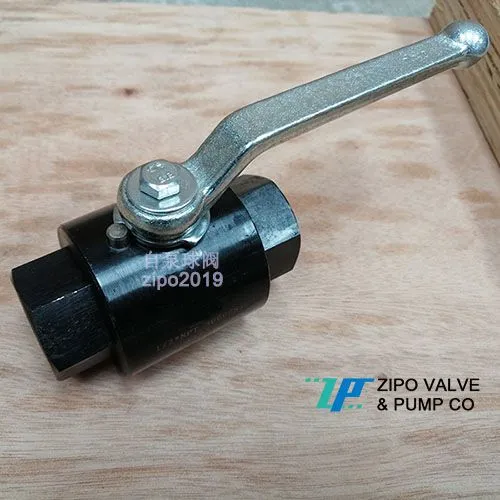

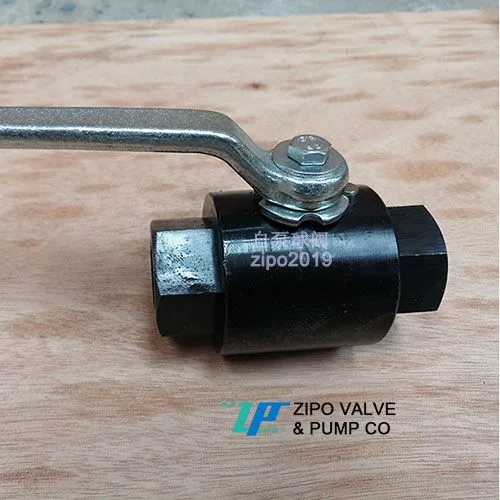

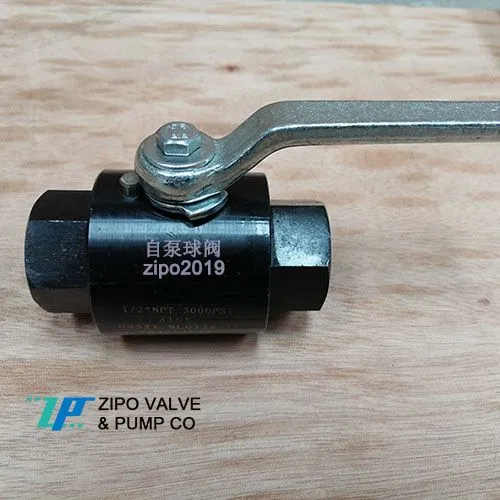

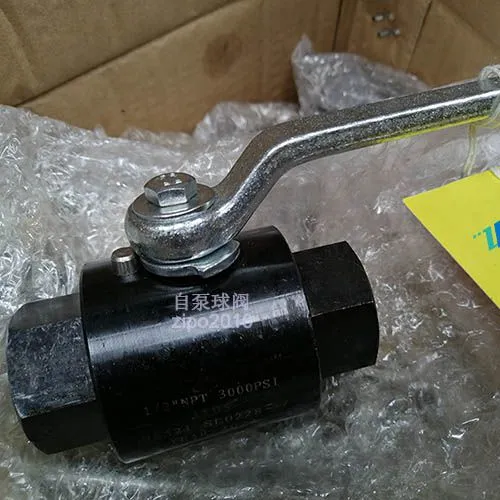

Forged steel Q11F-3000psi NPT thread floating ball valve

Forged steel Q11F-3000psi NPT thread floating ball valve

Contact: Email: zipopvf@163.com Wechat: zipo2019; QQ: 2191417589; Mobile: 18081659672

Please inform us of the accurate nominal size, pressure class, medium, temperature, material, actuator and other parameters, before consulting or purchasing the product. Thanks!

NPT thread ball valve is applicable to various pipelines with PN1.0 ~ 4.0Mpa, operating temperature of - 29 ~ 180 ℃ (the sealing ring is reinforced polytetrafluoroethylene) or - 29 ~ 300 ℃ (the sealing ring is counterpoint polystyrene), used to cut off or connect the medium in the pipeline, and different materials are selected, which can be respectively applied to water, steam, oil, acid and other media.

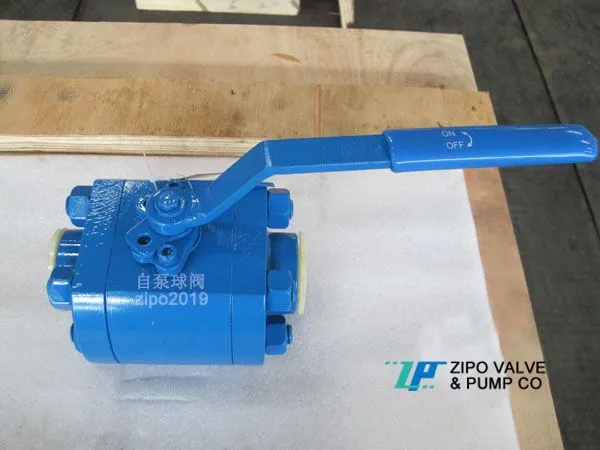

NPT thread connection ball valve and BW connection ball valve are divided into integral type (one piece), two-piece type and three-piece type. The valve body is casted with reasonable structure and beautiful shape. The valve seat adopts elastic sealing structure, reliable sealing and easy opening and closing. The valve stem adopts an anti blow out structure with back seal, and the valve stem will not be flushed out when the valve cavity is abnormally pressurized.

Two piece and three piece body ball valves can be connected to the pipeline by butting welding (BW) or Socket Welding (SW), and the stem can be equipped with ISO mounting pad and locking device. 90 ° switch positioning mechanism can be set and locked as required to prevent from wrong operation.

Actuator mode: manual, electric and pneumatic.

Size range NPS1/4 "~NPS4" pressure range: PN16 (CLASS150LB) ~PN420 (CLASS 1500LB) 1000PSI, 2000PSI, 30000PSI, 6000PSI, 1000WOG, 2000WOG, 3000WOG, 6000WOG

Common models: Q11f-16C, Q11f-40C, Q11f-64C, Q11F-100C, Q11F-150C,

Q11F-250C，Q11F-420C，Q11F-16P, Q11F-40P，Q11F-64P，Q11F-100P，Q11F-150P，Q11F-250P，Q11F-420P., Q11F-1000PSI, Q11FI-2000PSI, Q11F-3000PSI, Q11F-6000PSI

Manufacturer: ZIPO VALVE & PUMP CO., LTD
