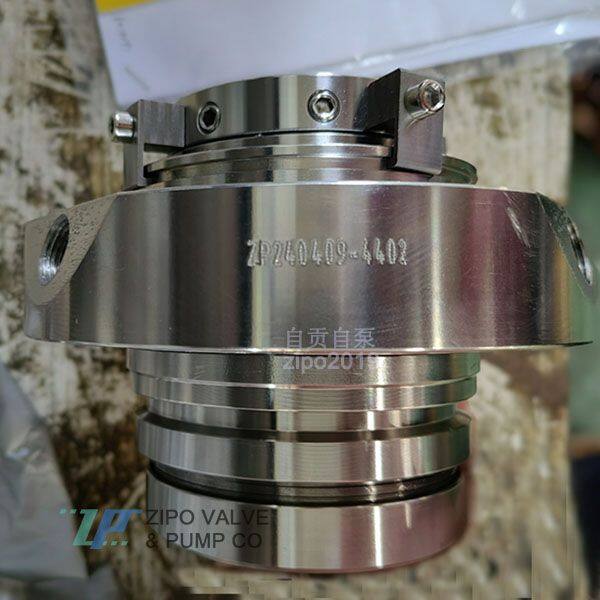

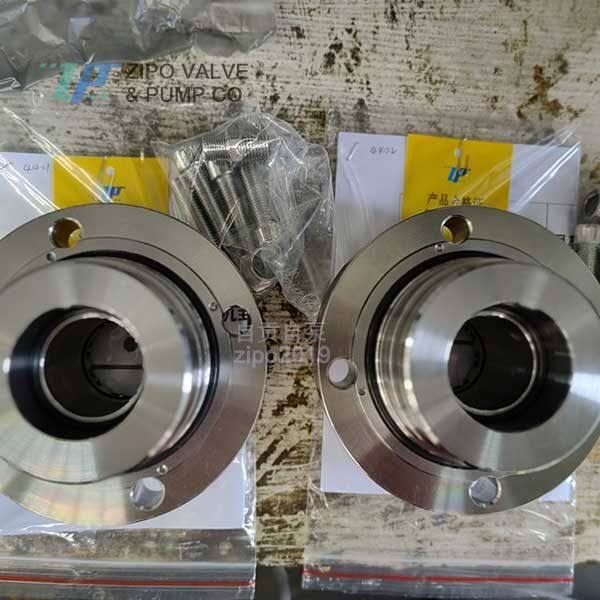

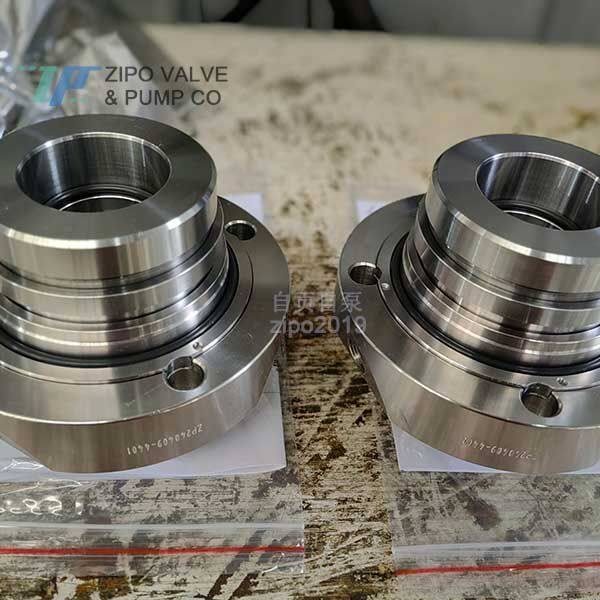

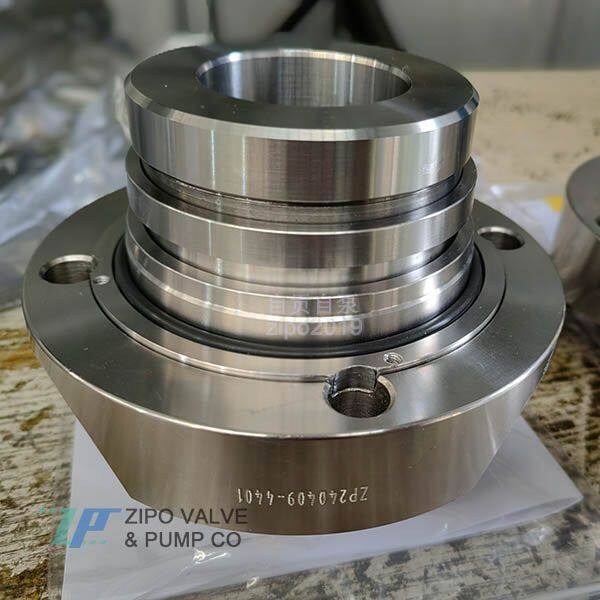

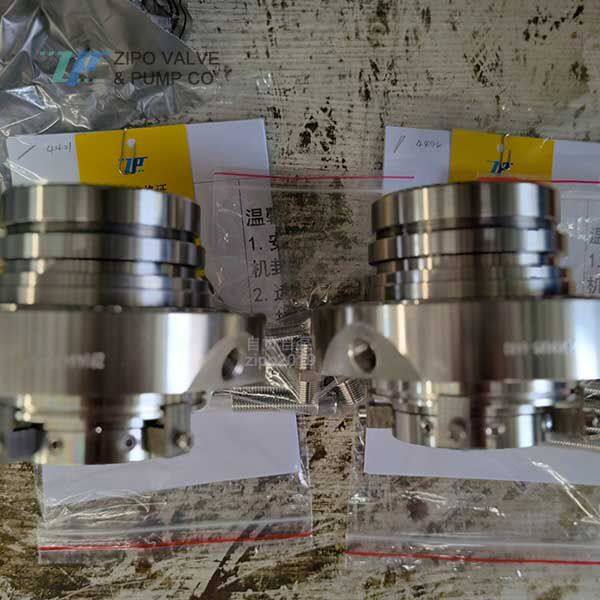

2205 stainless steel Cartridge mechanical seal ZCMSVLDB-044-U3VGG4 used for Chemical Pump HZCPYBGK65-40-400A
The prices mentioned are for reference only, and may vary depending on the material and model. Please call us for specific pricing inquiries. Mechanical products are customized products, please call to negotiate and agree on the delivery time.
Email: zipopvf@163.com Mobile: 180 (8165) 9672; Wechat: zipo2019; QQ: 219(141)7589
Model: ZCMSVLDB-034-U3U3VGG4/U3U3V
Structure: Double end face, containerized, multi spring, balanced,
Flushing plan: external cooling flushing water plan
Material: 2205+solid hard alloy. Other materials such as 304 316 2507 TA2 TA10 can also be customized according to user requirements. (Material selection prompts: hard alloy resistant to particle and alkali; silicon carbide resistant to high temperature and acid; fluororubber resistant to acid, ethylene propylene rubber resistant to alkali; when selecting materials, it is necessary to understand the characteristics of the medium: specific medium composition, medium pH value (acidity and alkalinity), medium crystallization, medium temperature, etc.)
Shaft diameter: 44mm
Applicable media: Salts, acidic media, or media with high impurity content such as gypsum and lime slurry.
Fixed content: ≤ 30% Temperature: ≤ 120 ℃ Pressure: ≤ 1.6MPa
Applicable pump type: This mechanical seal is mainly suitable for forced circulation pumps and axial flow pumps in evaporation systems.
Suitable for the following acid resistant pump chemical pump types: HZCPYBGK65-40-315A/B/C HZCPYBGK65-400A/B/C HZCPYBGK50-32-250A/B/C
Manufacturer: ZIPO VALVE & PUMP CO., LTD
