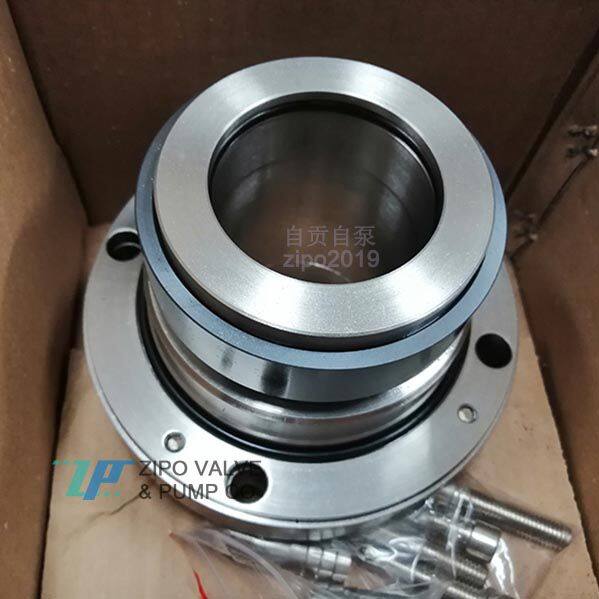

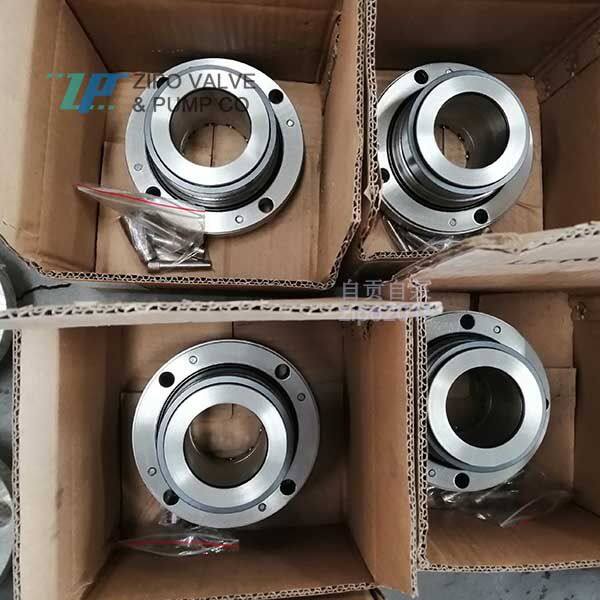

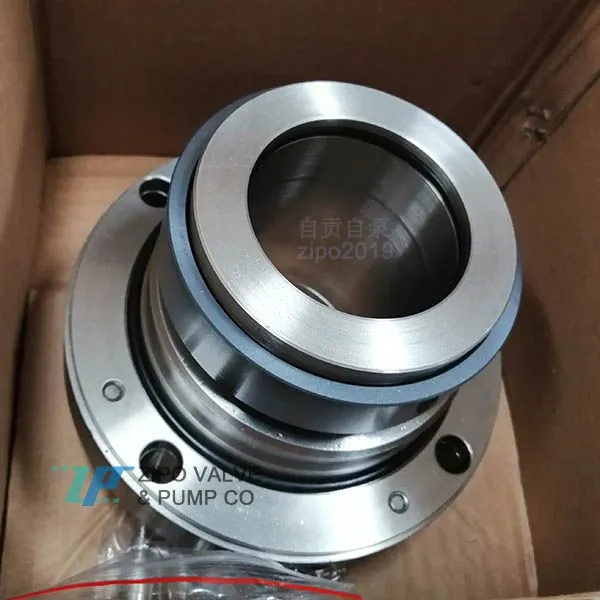

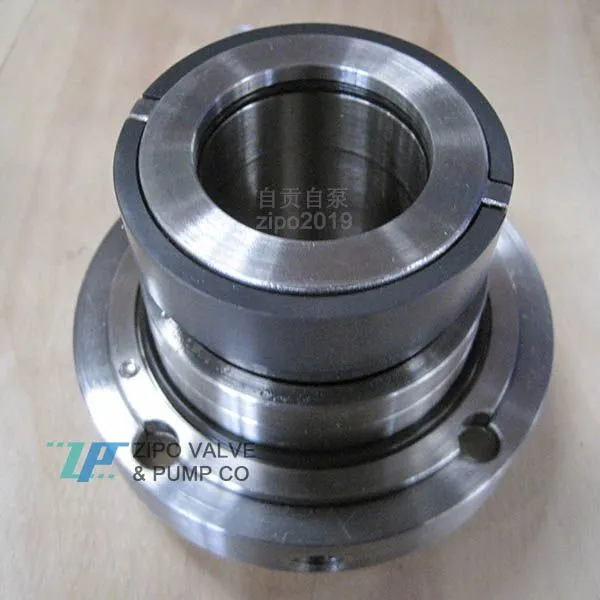

Chemical Pump Double End Containerized Mechanical Seal 60mm Shaft Diameter Stainless Steel Silicon Carbide ZCMSD-060-U5U5VGG
The above prices are reference prices, and prices may vary for different materials and models. Please call us for specific prices. Mechanical products are customized products, please call to negotiate and agree on the delivery time.
Online service: WEIXIN: 180 (8165) 9672 or Zipo2019; Q: 219(141)7589
Structure: Double end face, containerized, multi spring, balanced,
Flushing plan: external cooling flushing water
Material: 316+silicon carbide SiC. Other materials such as 304 2205, 2507, TA2, and TA10 can also be customized according to user requirements. (Material selection prompts: hard alloy, particle and alkali resistance; silicon carbide, high temperature and acid resistance; fluororubber, acid resistance; ethylene propylene rubber, alkali resistance; when selecting materials, it is necessary to understand the characteristics of the medium: specific medium composition, medium pH value (acidity and alkalinity), medium crystallization, medium temperature, etc.)
Shaft diameter: 60mm
Applicable media: media with high impurity content such as salts, gypsum, lime slurry, etc.
Fixed content: ≤ 30% Temperature: ≤ 120 ℃ Pressure: ≤ 1.6MPa
Machine seal model: ZCMSD-060-U5U5VGG
Applicable pump type: This mechanical seal is mainly suitable for chemical pumps, forced circulation pumps, and axial flow pumps in evaporation systems.
Kind reminder: Silicon carbide, similar to ceramics, is a fragile item and should be handled with care during packaging, transportation, and installation. During installation, install with bare hands and do not forcefully strike.
Manufacturer: ZIPO VALVE & PUMP CO., LTD
