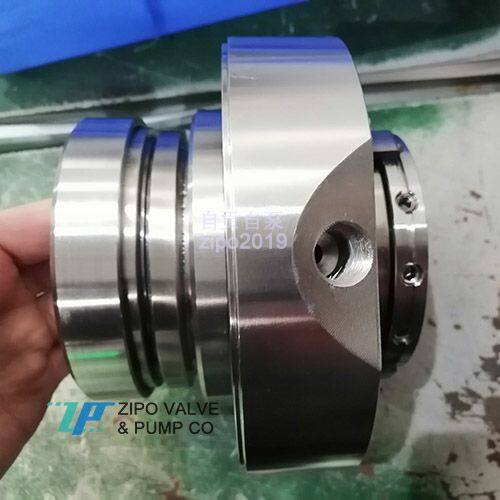

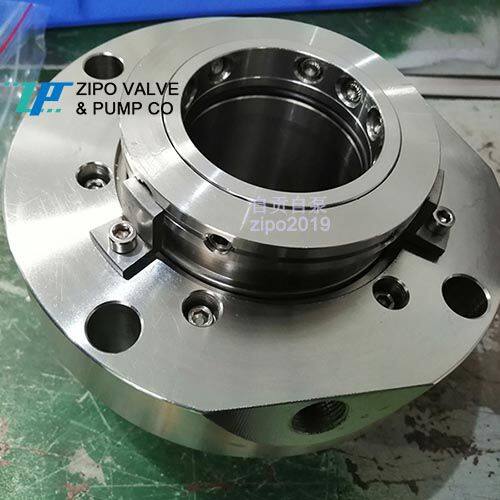

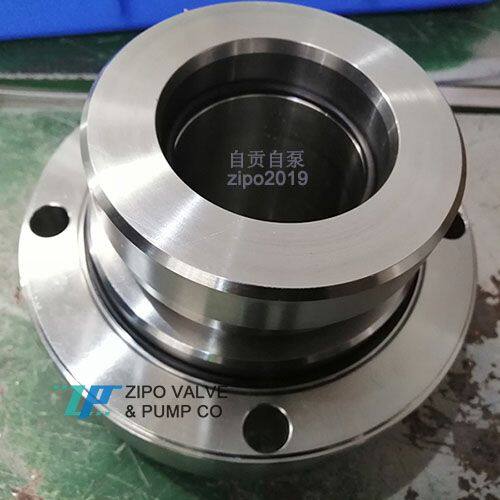

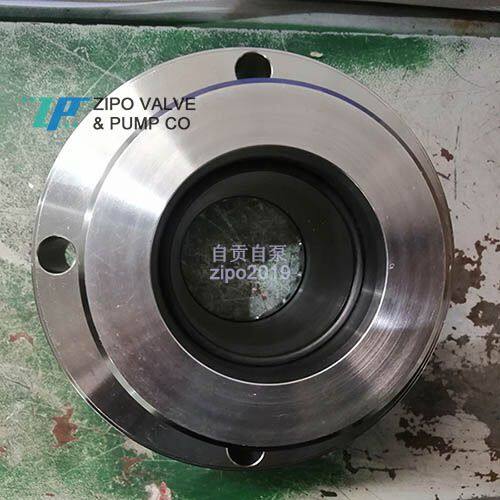

Chemical Pump 2205 Stainless Steel Double End Cartridge Mechanical Seal HZCPJ200-250ABCI ZCMSDZWSG-059-U3U3VGG4-U3U3V
The prices mentioned are for reference only, and may vary depending on the material and model. Please call us for specific pricing inquiries. Mechanical products are customized products, please call to negotiate and agree on the delivery time.
Online service: WEIXIN: 180 (8165) 9672 or Zipo2019; Q: 219(141)7589
Structure: Double end face, containerized, multi spring, balanced,
Flushing plan: external cooling flushing water plan
Material: 2205+hard alloy. Other materials such as 304 316 2205 2507 TA2 TA10 can also be customized according to user requirements. (Material selection prompts: hard alloy resistant to particle and alkali; silicon carbide resistant to high temperature and acid; fluororubber resistant to acid, ethylene propylene rubber resistant to alkali; when selecting materials, it is necessary to understand the characteristics of the medium: specific medium composition, medium pH value (acidity and alkalinity), medium crystallization, medium temperature, etc.)
Shaft diameter: 59mm
Applicable media: media with high impurity content such as salts, gypsum, lime slurry, etc.
Fixed content: ≤ 30% Temperature: ≤ 120 ℃ Pressure: ≤ 1.6MPa
Applicable pump type: This mechanical seal is mainly suitable for forced circulation pumps and axial flow pumps in evaporation systems.
Mechanical seal model: ZCMSDZWSG-059-U3U3VGG4-U3U3V 2205
Suitable for the following chemical pump types: HZCPJ200-250ABCI
Manufacturer: ZIPO VALVE & PUMP CO., LTD
