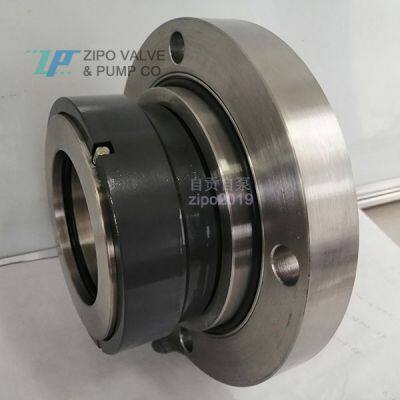

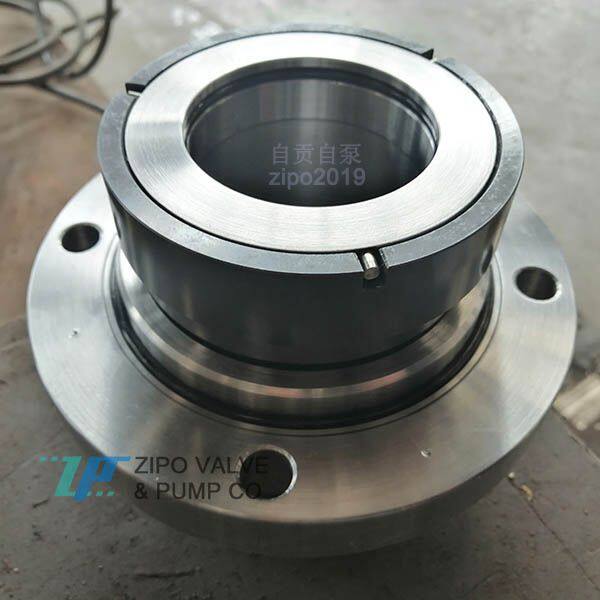

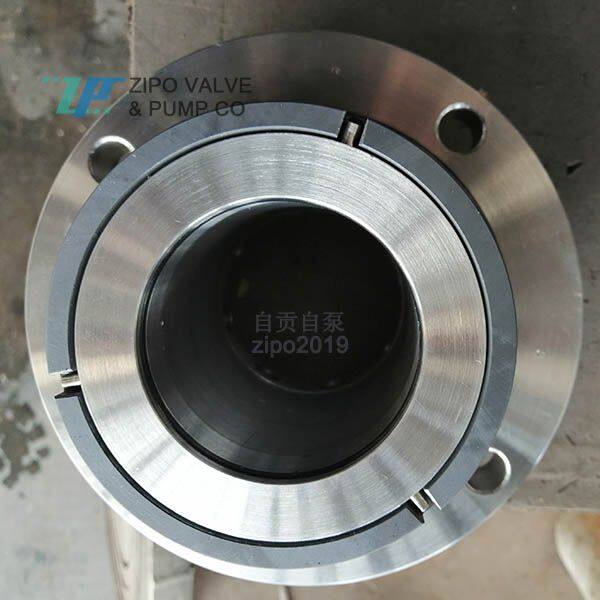

Chemical Pump HZCPYK150-125-500 Silicon Carbide and 304SS Mechanical Seal ZCMS-075-U5U5VGF

Zipo Valve & Pump Co., Ltd.
Chemical Pump HZCPYK150-125-500 Silicon Carbide and 304SS Mechanical Seal ZCMS-075-U5U5VGF thumbnail-1
Chemical Pump HZCPYK150-125-500 Silicon Carbide and 304SS Mechanical Seal ZCMS-075-U5U5VGF thumbnail-2
Chemical Pump HZCPYK150-125-500 Silicon Carbide and 304SS Mechanical Seal ZCMS-075-U5U5VGF thumbnail-3
Chemical Pump HZCPYK150-125-500 Silicon Carbide and 304SS Mechanical Seal ZCMS-075-U5U5VGF thumbnail-4
Chemical Pump HZCPYK150-125-500 Silicon Carbide and 304SS Mechanical Seal ZCMS-075-U5U5VGF thumbnail-5
Chemical Pump HZCPYK150-125-500 Silicon Carbide and 304SS Mechanical Seal ZCMS-075-U5U5VGF photo-1
Chemical Pump HZCPYK150-125-500 Silicon Carbide and 304SS Mechanical Seal ZCMS-075-U5U5VGF photo-2
Chemical Pump HZCPYK150-125-500 Silicon Carbide and 304SS Mechanical Seal ZCMS-075-U5U5VGF photo-3
Chemical Pump HZCPYK150-125-500 Silicon Carbide and 304SS Mechanical Seal ZCMS-075-U5U5VGF photo-4
Chemical Pump HZCPYK150-125-500 Silicon Carbide and 304SS Mechanical Seal ZCMS-075-U5U5VGF photo-5
US$ 800 - 850 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ZIPO
Place of Origin:
China
Model Number:
ZCMS-075-U5U5VGF
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Seaport
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ZIPO
Place of Origin China
Model Number ZCMS-075-U5U5VGF
Material Metal
Style Mechanical Seal
Standard or Nonstandard Standard

Chemical Pump HZCPYK150-125-500 Silicon Carbide and 304SS Mechanical Seal ZCMS-075-U5U5VGF

Chemical Pump Stainless Steel 304 Silicon Carbide Cartridge Mechanical Seal HZCPYK150-125-500ABCI

The above prices are reference prices, and prices may vary for different materials and models. Please call us for specific prices. Mechanical products are customized products, please call to negotiate and agree on the delivery time.

Online service: WEIXIN: 180 (8165) 9672 or Zipo2019; Q: 219(141)7589

Structure: single end face, containerized, multi spring, balanced,

Flushing plan: without external flushing water

Material: 304+silicon carbide SiC

At the same time, other materials such as 304 316 2205 2507 TA2 TA10 can also be customized according to user requirements (material selection prompts: hard alloy resistant to particles and alkali; silicon carbide resistant to high temperature and acid; fluororubber resistant to acid, ethylene propylene rubber resistant to alkali; when selecting materials, it is necessary to clarify the characteristics of the medium: specific medium composition, medium pH value (acidity and alkalinity), medium crystallization, medium temperature, etc.)

Shaft diameter: 75mm

Applicable medium: Chemical corrosive medium similar to clean water.

Temperature: ≤ 120 ℃ Pressure: ≤ 1.6MPa

Applicable pump types: water pumps, chemical pumps, etc.

Suitable for the following chemical pump types:

HZCPJK150-125-500ABCI HZCPJK250-200-400ABCI

Manufacturer: ZIPO VALVE & PUMP CO., LTD

Product Tags: cartridge mechanical seal , mechanical seal , chemical pump seals , chemical mechanical seal , chemical pump shaft seals , sanding mechanical seal , ZCMS-075-U5U5VGF , HZCPYK150-125-500 , silicon carbide mechanical seal
