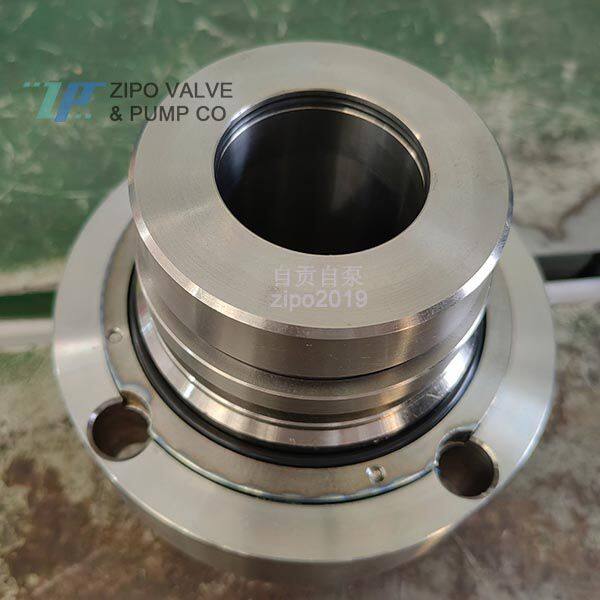

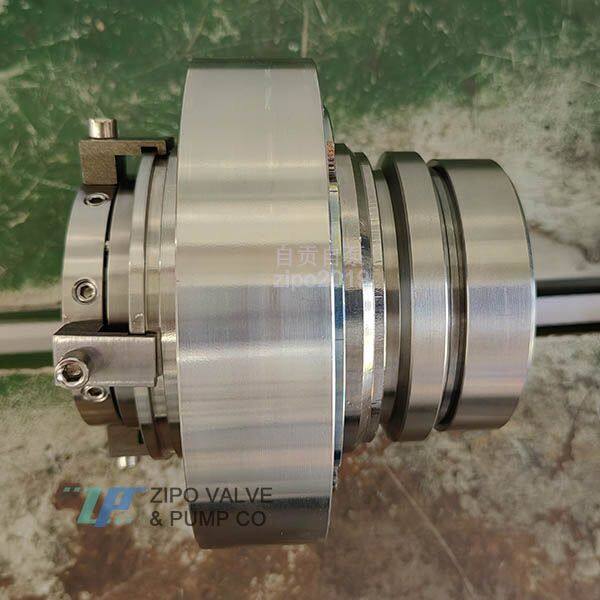

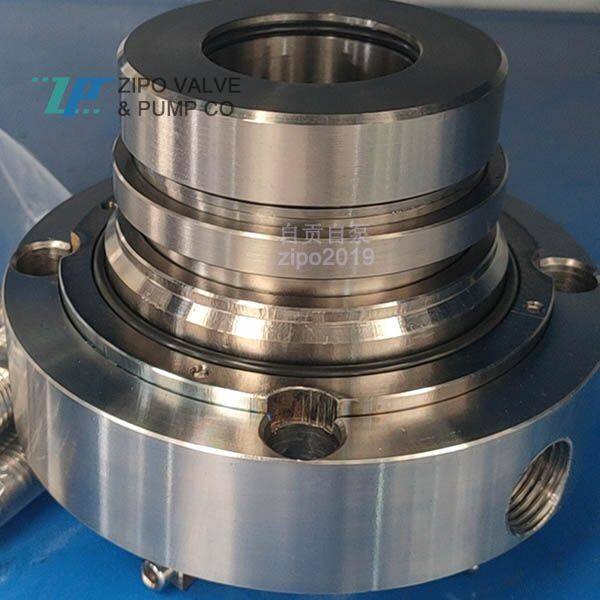

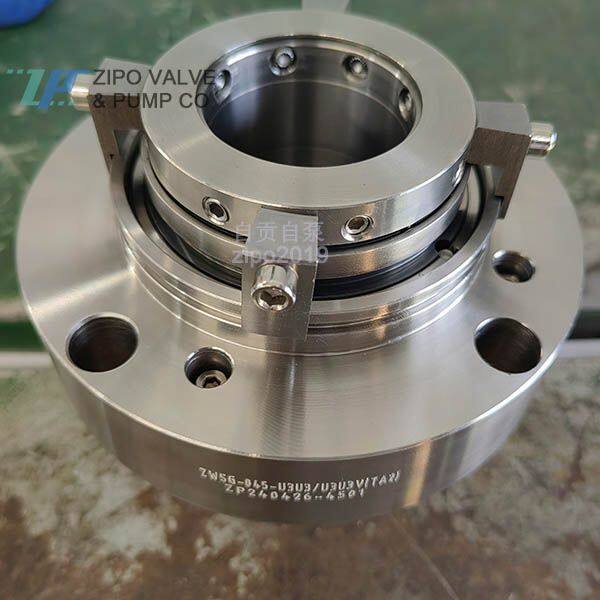

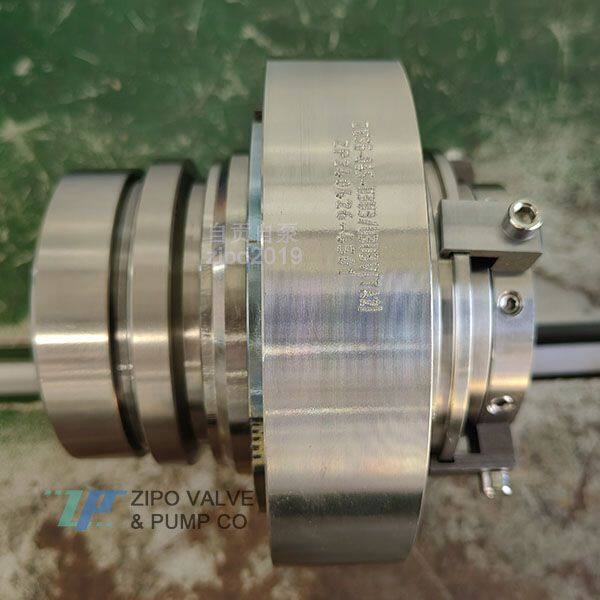

Axial flow pump ZAPDWQKMZ-250 titanium material mechanical seal ZCMSDZWSG-045-U3U3VGT-U3U3VTA2
The prices mentioned are for reference only, and may vary depending on the material and model. Please call us for specific pricing inquiries. Mechanical products are customized products, please call to negotiate and agree on the delivery time.
Online service: WEIXIN: 180 (8165) 9672 or Zipo2019; Q: 219(141)7589
Structure: Double end face, containerized, multi spring, balanced,
Flushing plan: external cooling flushing water plan
Material: TA2+hard alloy. Other materials such as 304 316 2205 2507 TA2 TA10 can also be customized according to user requirements. (Material selection prompts: hard alloy resistant to particle and alkali; silicon carbide resistant to high temperature and acid; fluororubber resistant to acid, ethylene propylene rubber resistant to alkali; when selecting materials, it is necessary to understand the characteristics of the medium: specific medium composition, medium pH value (acidity and alkalinity), medium crystallization, medium temperature, etc.)
Shaft diameter: 45mm
Applicable media: media with high impurity content such as salts, gypsum, lime slurry, etc.
Fixed content: ≤ 30% Temperature: ≤ 120 ℃ Pressure: ≤ 1.6MPa
Applicable pump type: This mechanical seal is mainly suitable for forced circulation pumps and axial flow pumps in evaporation systems.
Suitable for the following forced circulation pump axial flow pump type ZAPDWXHKMZ-250 ZAPDWQKMZ-250
Suitable for the following chemical pump types: HZCPYBGK50-32-250ABCI HZCPYBGK65-40-200ABCI HZCPYBGK65-40-250ABCI HZCPJBGK65-40-315ABCI HZCPJBGK65-50-125ABCI HZCPJBGK80-50-315ABCI HZCPJBGK80-50-400ABCI HZCPJBGK80-65-160ABCI
Manufacturer: ZIPO VALVE & PUMP CO., LTD
Fixed content: ≤ 30% Temperature: ≤ 120 ℃ Pressure: ≤ 1.6MPa
Applicable pump type: This mechanical seal is mainly suitable for forced circulation pumps and axial flow pumps in evaporation systems.
Suitable for the following chemical pump types: HZCPJGBK50-32-250ABCI HZCPJGBK65-40-200ABCI HZCPJGBK65-40-250ABCI HZCPJGBK65-40-315ABCI HZCPJGBK65-50-125ABCI HZCPJGBK80-50-315ABCI HZCPJGBK80-50-400ABCI H HZCPJGBK80-65-160ABCI
Suitable for the following forced circulation pump axial flow pump type ZAPDWXQ-250 ZAPDWXQ-250
Manufacturer: ZIPO VALVE & PUMP CO., LTD
