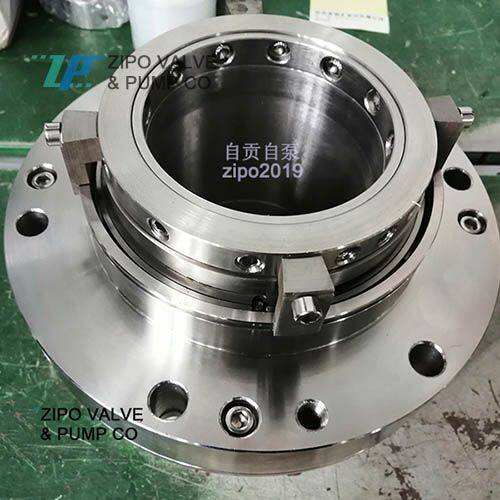

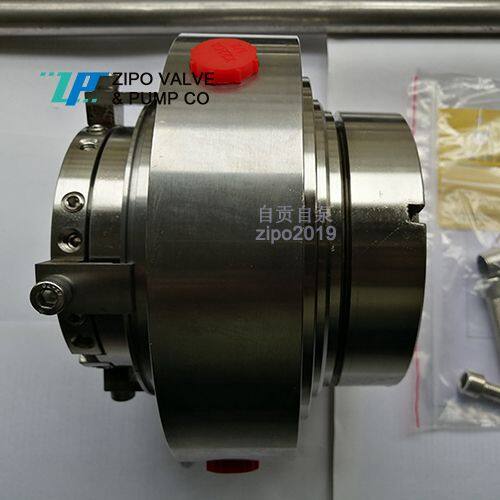

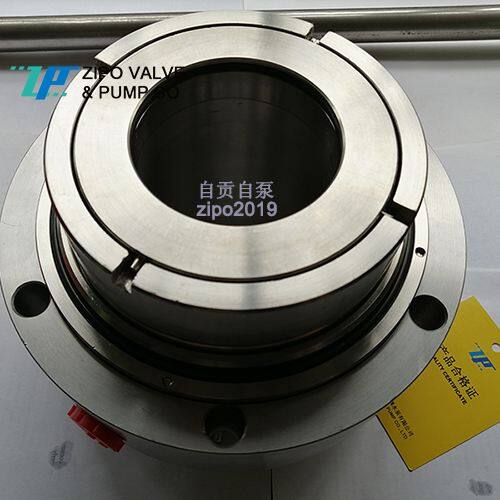

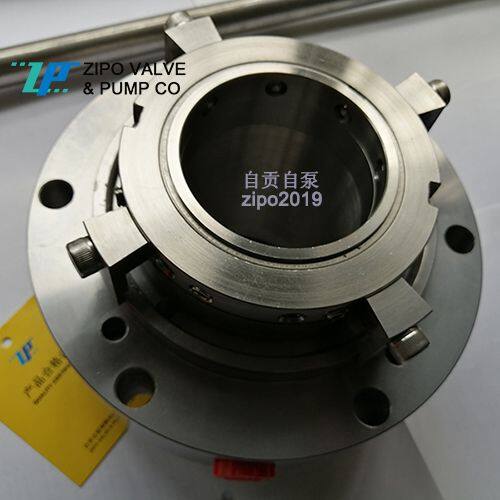

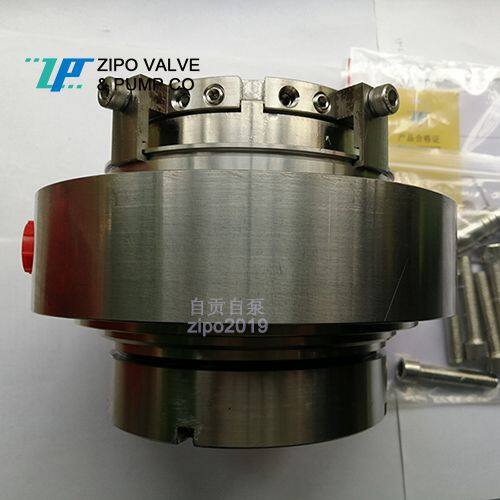

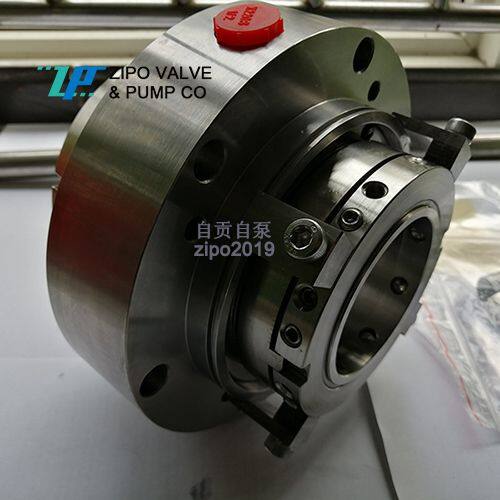

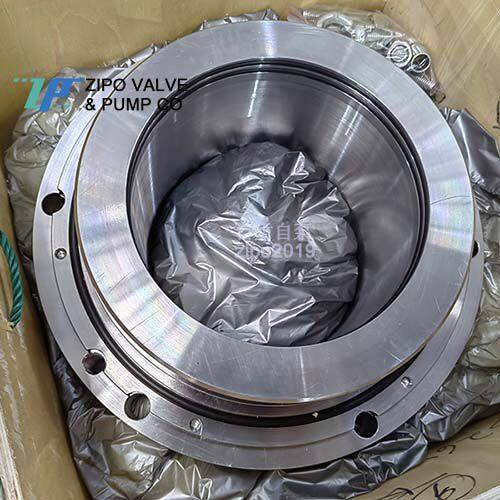

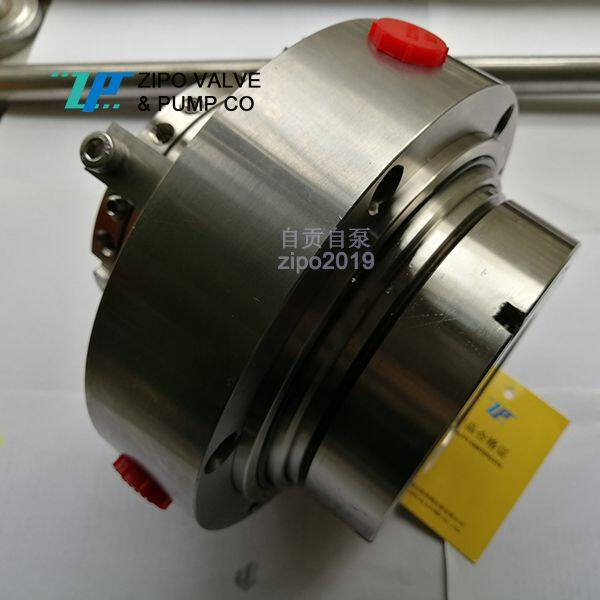

Double Sealing Cartridge Mechanical Seal ZCMSD/ZWSW-075-U2U2VGG3 Used for Circulating Pump or Axial Flow Pump ZAPDBWQX-300/350/400/450

Double sealing cartridge mechanical seal ZCMSD/ZWSW-075-U2U2VGG3 used for Circulating pump or axial flow pump ZAPDBWQX-300/350/400/450

The above prices are reference prices, and prices may vary for different materials and models. Please call us for specific prices. Mechanical products are customized products, please call to negotiate and agree on the delivery time.

Online service: WEIXIN: 180 (8165) 9672 or Zipo2019; Q: 219(141)7589

Machine seal model:  ZCMSD/ZWSW-075-U2U2VGG3/U2U2V

Structural form: Double end face, containerized, multi spring, balanced,

Flushing plan: external cooling flushing water plan

Material: 2507+ embedded hard alloys

(Material selection prompt: Hard alloy resistant to particles and alkali; silicon carbide resistant to high temperature and acid; fluororubber resistant to acid, ethylene propylene rubber resistant to alkali; when selecting materials, it is necessary to understand the characteristics of the medium: specific medium composition, medium pH value (acidity and alkalinity), whether the medium is crystalline, medium temperature, etc.)

Shaft diameter: 75mm

Applicable media: Salts, acidic media, or media with high impurity content such as gypsum and lime slurry.

Fixed content: ≤ 30% Temperature: ≤ 120 ℃ Pressure: ≤ 1.6MPa

Applicable pump type: This mechanical seal is mainly suitable for forced circulation pumps and axial flow pumps in evaporation systems.

Suitable for the following types of circulating pumps or axial flow pumps:

ZAPDBWXQ-300   ZAPDBWXQ-350   ZAPDBWXQ-400 ZAPDBWXQ-450

Manufacturer: ZIPO VALVE & PUMP CO., LTD
