Acid Resistant Chemical Pump Mechanical Seal ZCMSD-034-U3U3VGF/U3U3V HZCPYK50-32-160 65-50-160 65-40-160

Acid resistant chemical pump mechanical seal ZCMSD-034-U3U3VGF/U3U3V HZCPYK50-32-160 65-50-160 65-40-160

The prices mentioned are for reference only, and may vary depending on the material and model. Please call us for specific pricing inquiries. Mechanical products are customized products, please call to negotiate and agree on the delivery time.

Online service: WEIXIN: 180 (8165) 9672 or Zipo2019; Q: 219(141)7589

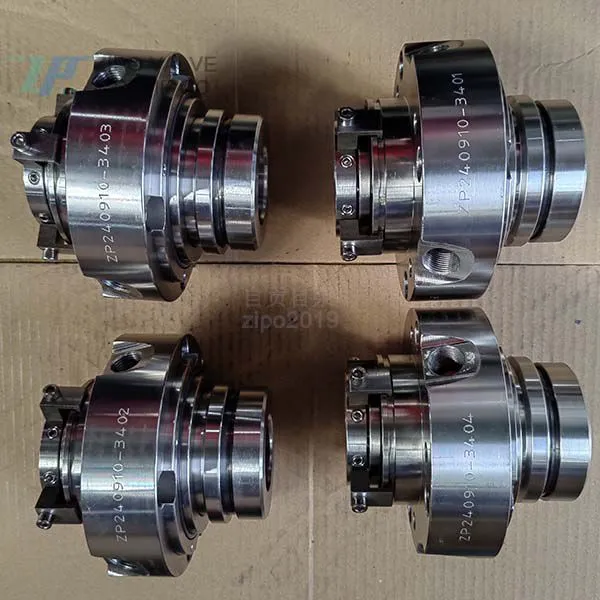

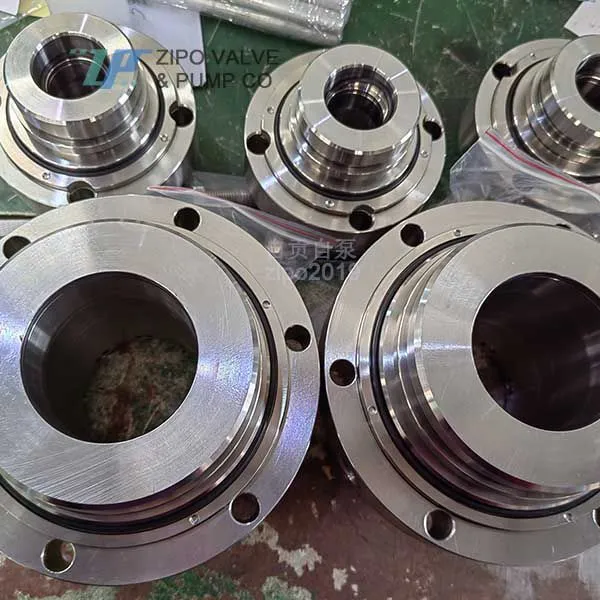

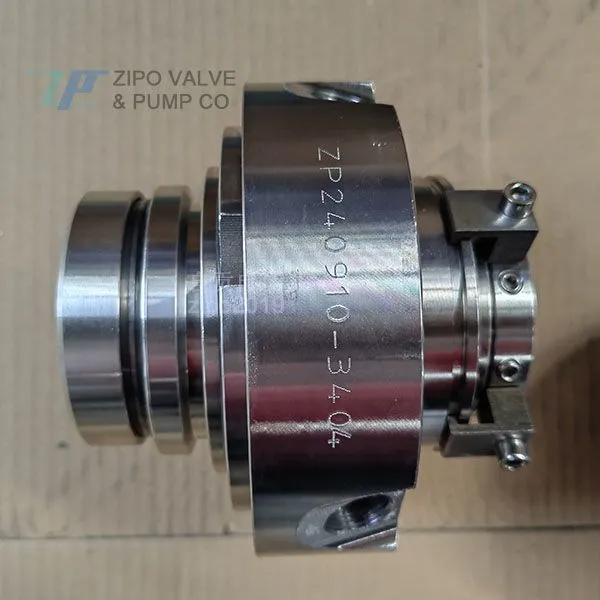

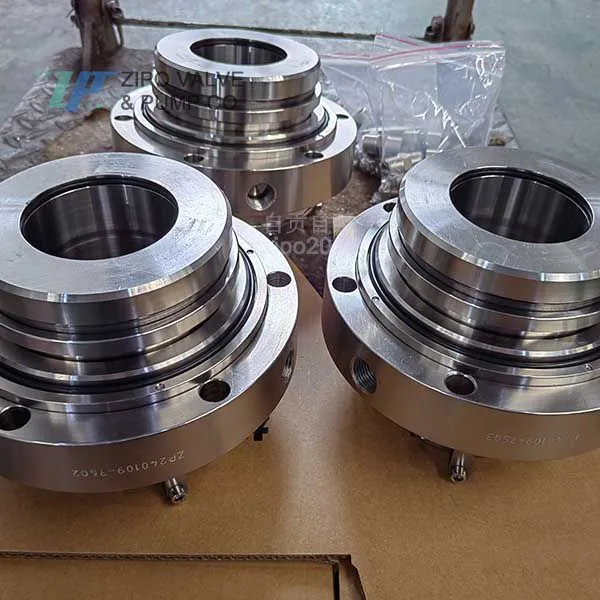

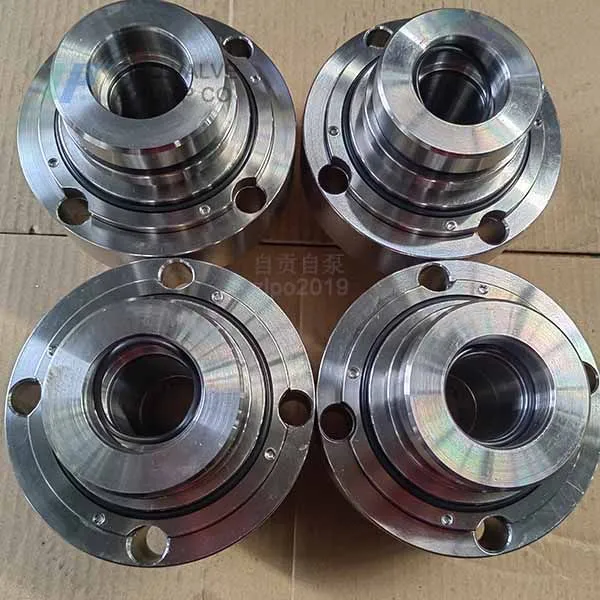

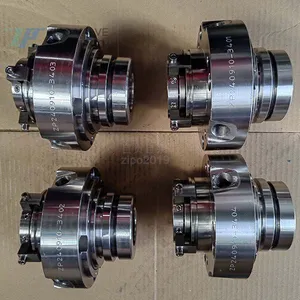

Mechanical seal model ZCMSD-034-U3U3VGF/U3U3V

Structure:  Double end face, containerized, multi spring, balanced,

Flushing plan: external cooling flushing water plan

Material: 304+ solid hard alloy

(Material selection prompt: Hard alloy resistant to particles and alkali; silicon carbide resistant to high temperature and acid; fluororubber resistant to acid, ethylene propylene rubber resistant to alkali; when selecting materials, it is necessary to understand the characteristics of the medium: specific medium composition, medium pH value (acidity and alkalinity), whether the medium is crystalline, medium temperature, etc.)

Shaft diameter: 34mm

Applicable media: Salts, acidic media, or media with high impurity content such as gypsum and lime slurry.

Fixed content: ≤ 30% Temperature: ≤ 120 ℃ Pressure: ≤ 1.6MPa

Applicable pump type: This mechanical seal is mainly suitable for forced circulation pumps and axial flow pumps in evaporation systems.

Suitable for the following acid resistant pump chemical pump types: HZCPJ50-32-160 HZCPJ65-40-160 HZCPJ65-50-160

Manufacturer: ZIPO VALVE &PUMP CO., LTD
