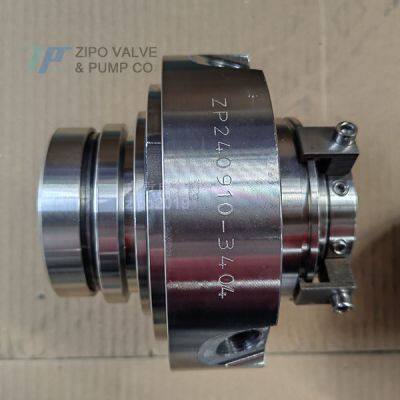

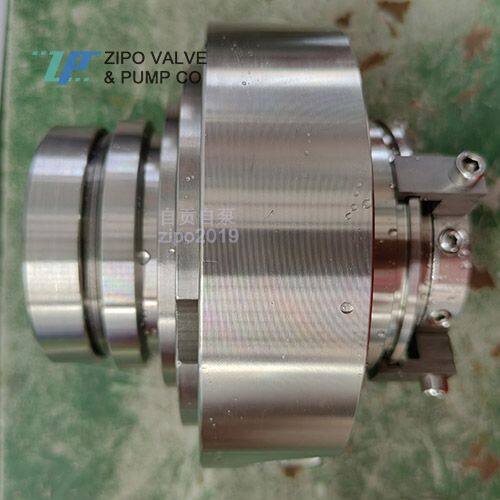

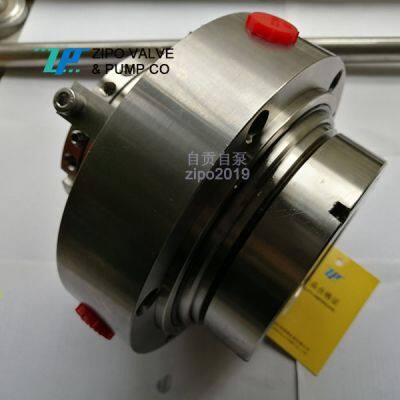

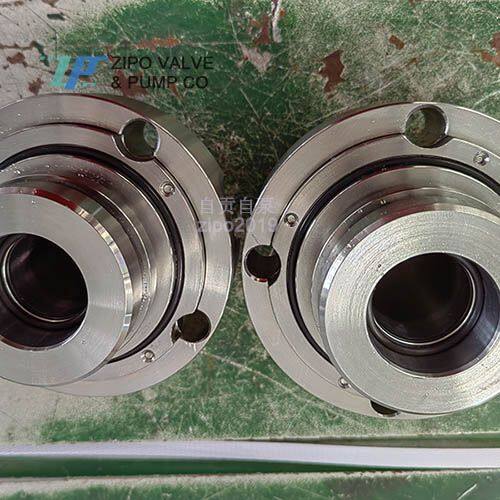

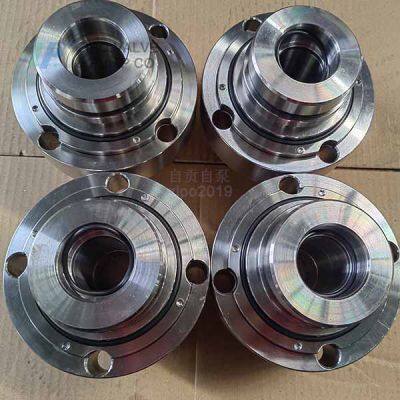

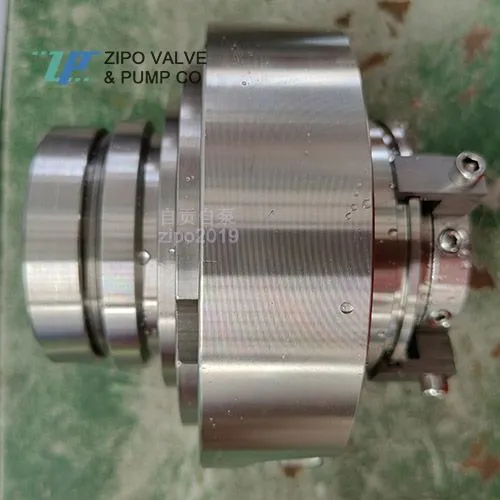

316L and Hard Alloy Cartridge Mechanical Seal Used for HZCPYBGK50-32-160ABC 65-40-160ABC

316L and Hard Alloy Cartridge Mechanical Seal used for 316L and Hard Alloy Cartridge Mechanical Seal used for HZCPYBGK50-32-160ABC 65-40-160ABC

The prices mentioned are for reference only, and may vary depending on the material and model. Please call us for specific pricing inquiries. Mechanical products are customized products, please call to negotiate and agree on the delivery time.

Online service: WEIXIN: 180 (8165) 9672 or Zipo2019; Q: 219(141)7589

Structure: Double end face, containerized, multi spring, balanced,

Flushing plan: external cooling flushing water plan

Material: 316L+Solid Hard Alloy (Material Selection Tips: Hard Alloy Resistant to Particles and Alkali; Silicon Carbide Resistant to High Temperature and Acid; Fluorine Rubber Resistant to Acid, Ethylene Propylene Rubber Resistant to Alkali; When selecting materials, it is necessary to understand the characteristics of the medium: specific medium composition, medium pH value (acidity and alkalinity), medium crystallization, medium temperature, etc.)

Shaft diameter: 34mm

Applicable media: Media containing salts or media with high impurity content such as gypsum and lime slurry.

Fixed content: ≤ 30% Temperature: ≤ 120 ℃ Pressure: ≤ 1.6MPa

Applicable pump type: This mechanical seal is mainly suitable for forced circulation pumps and axial flow pumps in evaporation systems.

Suitable for the following acid resistant pump chemical pump types:

HZCPJBGK50-32-160ABCI HZCPJBGK65-40-160ABCI HZCPJBGK65-50-160ABCI

Manufacturer: ZIPO VALVE & PUMP CO., LTD
