Product Details
| Brand Name | ZIPO | Place of Origin | China | |
| Model Number | ZCMSD-024 | Material | Metal | |
| Style | Mechanical Seal | Standard or Nonstandard | Standard |
Product Description
Cartridge Mechanical Seal

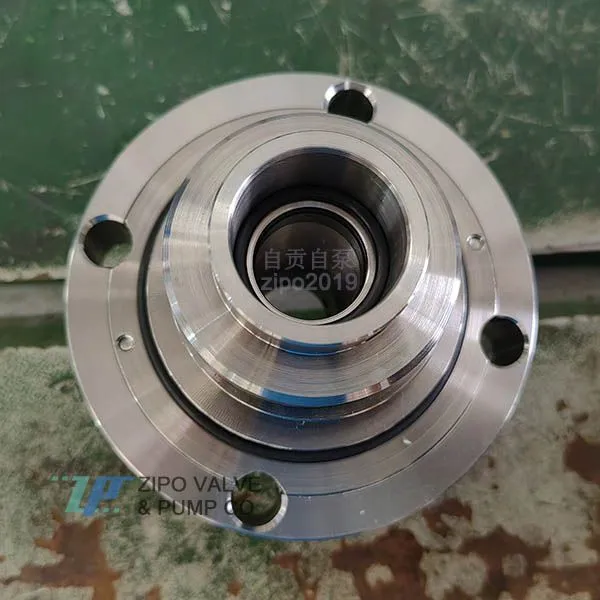

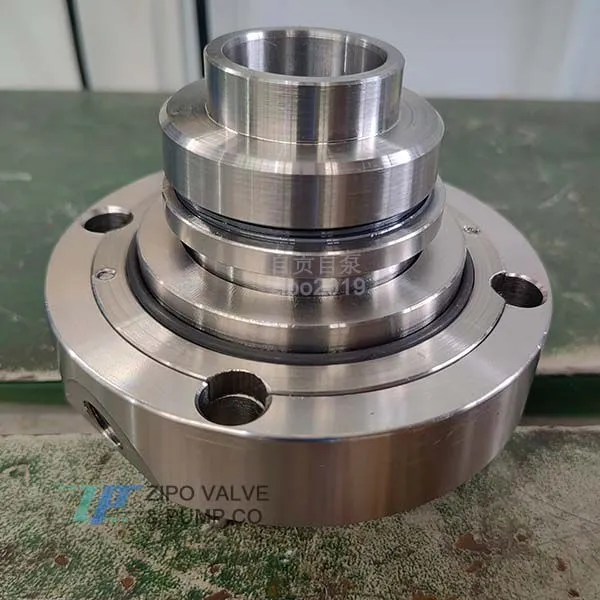

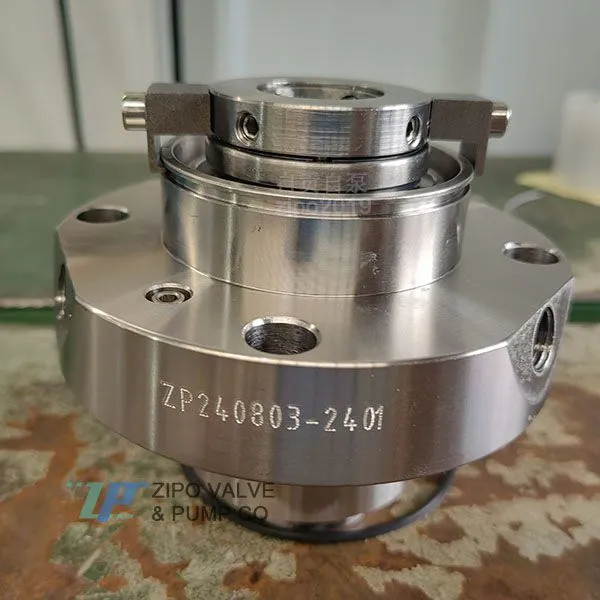

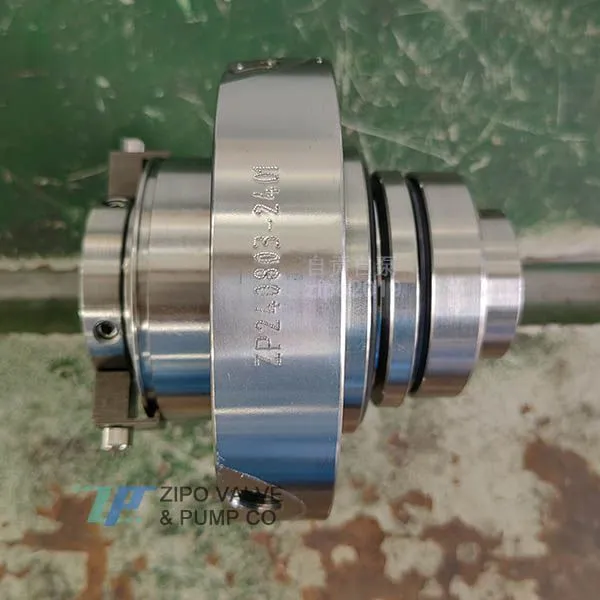

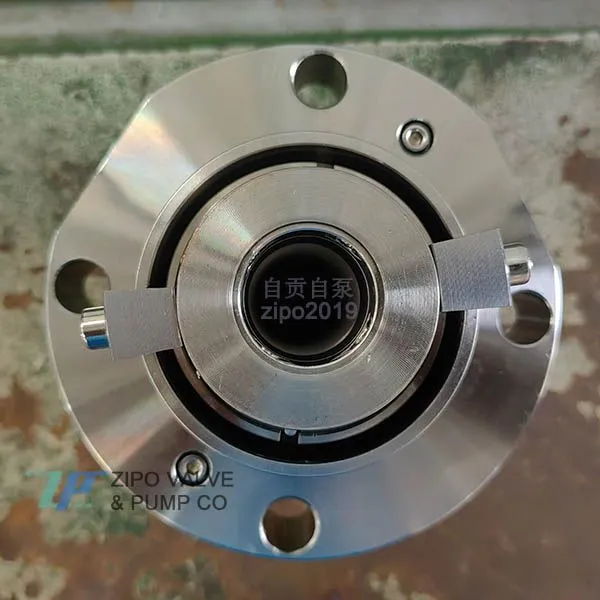

ZCXFP40-25-160 mechanical seal ZCMSD-024 shaft diameter 24mm with material 2205 316
Stainless steel chemical pump mechanical seal ZCMSD-024 shaft diameter 2205 316 mechanical seal
The above prices are reference prices, and the prices of different models may vary. Please call us for specific prices. Mechanical products are customized products, please call to negotiate and agree on the delivery time.
Online service: WEIXIN: 180 (8165) 9672 or Zipo2019; Q: 219(141)7589
Shaft diameter: 24mm
Structure: Container type, double end face, shared multi spring structure, with external flushing cooling water
Overcurrent material: 30431622052507, TA2, TA10+silicon carbide or hard alloy available for selection
O-ring and auxiliary sealing materials: ethylene propylene rubber or fluororubber and PTFE
Selection of O-ring for machine seal: Ethylene propylene rubber alkali resistant medium; Fluorine rubber acid resistant medium.
Selection of sealing rings for machine seals: Hard alloy with alkali resistance, more resistant to particles; Silicon carbide has acid resistance and is more resistant to high temperatures.
Machine seal model: ZCMSD-024-U3U3VGG1/U3U3V 316+hard alloy fluororubber
ZCMSD-024-U5U5VGG1/U5V 316+silicon carbide fluororubber
ZCMSD-024-U3U3VGGG4/U3U3V 2205+silicon carbide fluororubber
ZCMSD-024-U5U5VGG4/U5V 2205+silicon carbide fluororubber
ZCMSD-024-U3U3EGG1/U3U3E 316+hard alloy ethylene propylene rubber
ZCMSD-024-U5U5EGG1/U5U5E 316+silicon carbide ethylene propylene rubber
ZCMSD-024-U3U3EGG4/U3U3E 2205+silicon carbide ethylene propylene rubber
ZCMSD-024-U5U5EGGG4/U5EE 2205+silicon carbide ethylene propylene rubber
Applicable chemical pump type: ZCXFP 25-15-160ABI ZCXFP 32-20-160ABI ZCXFP32-20-200ABI ZCXFP32-20-250ABI ZCXFP40-25-160ABI ZCXFP40-25-200ABI ZCXFP40-25-250ABI ZCXFP40-25-315ABI
Manufacturer: ZIPO VALVE & PUMP CO., LTD
