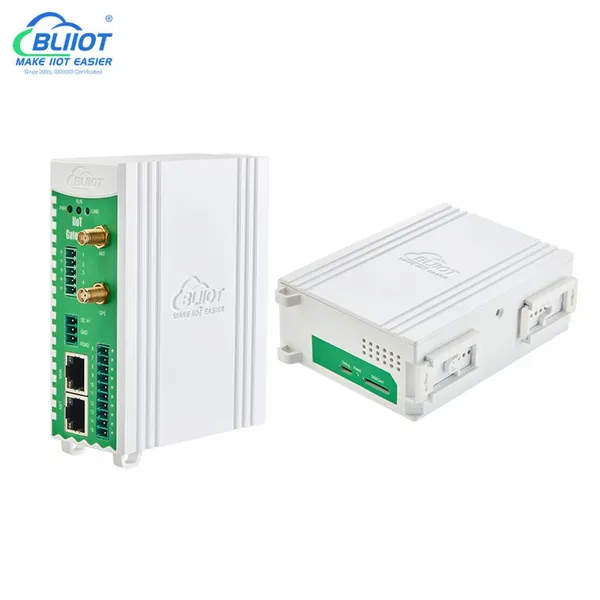

Manufacturer BLIIoT BL124 Modbus to Ethernet/IP Converter for Industrial Automation photo-2
Manufacturer BLIIoT BL124 Modbus to Ethernet/IP Converter for Industrial Automation photo-3
Manufacturer BLIIoT BL124 Modbus to Ethernet/IP Converter for Industrial Automation photo-4

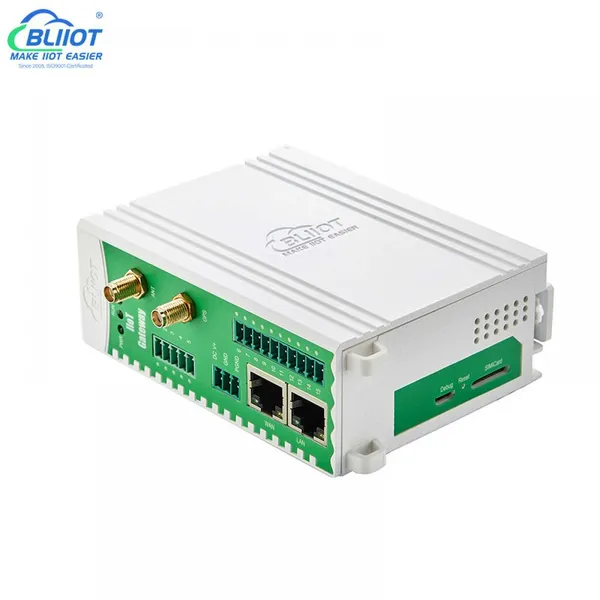

Manufacturer BLIIoT BL124 Modbus to Ethernet/IP Converter for Industrial Automation photo-5
US$ 66.45 - 70.15 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLIIOT
Place of Origin:
China
Model Number:
BL124
Contact Supplier Request Quote Chat Now
Shenzhen Beilai Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIIOT
Place of Origin China
Model Number BL124

Product Description

Modbus to Ethernet/IP Industrial Protocol Gateways BL124
Item No.: BL124
BLIIoT BL124  Industrial Protocol Gateways get data from your Modbus RTU or Modbus TCP based devices to your Ethernet/IP clients.

  • Basic Version: 2 Serial Ports: BL124

  • P Version: 6 Serial Ports: BL124P

    • Downlink Supports Modbus RTU Master, Modbus TCP Master
    Uplink Supports Ethernet/IP
    Supports SNMP V1/V2
    Supports transparent transmission
    RJ45 Ethernet ports
    RS-485/232 serial ports
    Supports OpenVPN
    Supports 4G communication
    Supports routing functions and cascading switch
    Supports remote configuration and firmware upgrade


Model List

All BL12x series gateways support 4G/WIFI/GPS/, and the number of serial ports can be selected from 2 serial series or 6 serial ports. The selection table is shown in Table 1 below.

Model WAN LAN COM(Default RS485, optional RS232) WiFi 4G GPS
BL124 1 1 2 × × ×
BL124L 1 1 2 × √ ×
BL124LG 1 1 2 × √ √
BL124W 1 1 2 √ × ×
BL124P 1 1 6 × × ×
BL124PL 1 1 6 × √ ×
BL1241PLG 1 1 6 × √ √
BL124PW 1 1 6 √ × ×
                                                            Table 1

For Profinet gateways, bliiot offers other downstream protocol to Profinet gateway options as listed in Table 2 below.

Ethernet/IP Gateway Model Downlink Protocol
Uplink Protocol: Ethernet/IP      BL124 Modbus RTU,Modbus ASCII,Modbus TCP
BL124PN Profinet
BL124EC EtherCAT
BL124CK CC-LINK,CC-LINK TSN
BL124CN CANOPEN JAE1939 DeviceNet
BL124PK Power Link
BL124DT DLT645,IEC104
BL124EN IEC61850
BL124DN DNP3.0
BL124BN BACnet MSTP,BACnet/IP
BL124LK Lonworks
BL124KN KNX
BL124ML Modbus RTU,Modbus TCP,DLT645,IEC104,BACnet,Lonworks,IEC61850

Product Parameters


 Parameter Description
Power Supply Input Voltage DC 9~36V
Power Consumption Normal: 50mA@12V, Max: 20mA@36V
Ethernet Port Specification 2 x RJ45, 2x10/100Mbps
Protection ESD: ±6kV(Contact), ±8kV(Air)
EFT: 1kV, 5kHz
Serial Port QTY 2CH RS485
Baud Rate 2400, 4800, 9600, 19200, 38400, 57600, 115200
Data Bit 8
Parity Bit None, Even, Odd
Stop Bit 1, 2
Mode RTU Master/Slave
Function 01H, 02H, 03H, 04H, 05H, 06H, 0FH, 10H
Connection Up to 31 connections to a single serial port
Protection ESD ±6kV(Contact), ±8kV(Air)
EFT ±1kV, 5kHz
Indicator PWR Always on when device powered on
RUN Flickering when system running
LINK Flickering when TCP communicating
RS485 Flickering when communicating
Software Protocol Ethernet/IP, Modbus RTU
Max input/output data volume  Default bytes "2Bytes"

Max Input Bytes ≤496Bytes

Max Output Bytes ≤496Bytes
File EDS
Safety Regulations EMC IEC 61000-4-2 (ESD) Level 3

IEC 61000-4-4 (EFT) Level 3

IEC 61000-4-5 (Surge)Level 3
Others CE, FCC, RoHs
Environment Working -30~55ºC, 5~95% RH
Others Housing Material Plastic
Size 30×83×110mm(LxWxH)
Protection IP30
Mounting DIN Rail Mounting


Packaging & Shipping

Box &Shipping by air, land ,sea

Package Size
22.00cm * 19.00cm * 8.00cm
Package Gross Weight
0.500kg
