Shenzhen Beilai Technology Co., Ltd.: Shenzhen, Guangdong, China; Main products: IoT Gateways, 4G M2M RTU, Distributed I/O System, Ethernet I/O Module, Industrial Computer, Industrial 4G Edge Router

Home > Products > Industrial Protocol Gateways > Factory Directly Sale BACnet/IP BACnet MS/TP to IEC104 Supports OpenVPN Wireless Gateway

Factory Directly Sale BACnet/IP BACnet MS/TP to IEC104 Supports OpenVPN Wireless Gateway

Name: Factory Directly Sale BACnet/IP BACnet MS/TP to IEC104 Supports OpenVPN Wireless Gateway
Brand: BLIIOT
Availability: InStock

FOB Price

US$ 44.32 - 49.64 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T PayPal
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BLIIOT		Place of Origin	China
Model Number	BE104

Product Description

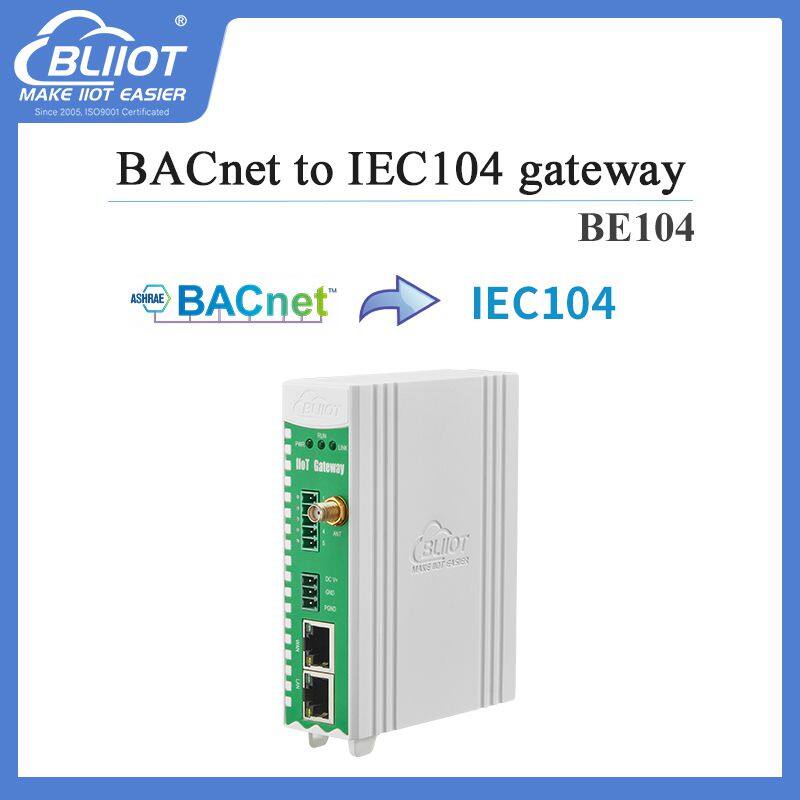

BACnet Modbus to IEC104 Smart Energy Gateway BE104

Item No.: BE104

BLIIoT BE104 smart energy gateway supports BACnet, Modbus converting to IEC104 protocol.

Downlink Supports Modbus RTU, Modbus TCP, BACnet/IP, BACnet MS/TP
Uplink Supports IEC104
Supports transparent transmission
2RJ45 Ethernet ports
2CH or 6CH RS-485/232 serial ports
Supports WiFi communication
Supports BLRMS remote configuration and firmware upgrade

Model List

Model	WAN	LAN	COM(RS485/RS232)	WiFi
BE104	1	1	2	×
BE104W	1	1	2	√
BE104P	1	1	6	×
BE104PW	1	1	6	√

	Parameter	Description
System	Processor	Clock speed 300Mhz
	Storage	128MB
	Flash memory	64MB
Power Supply	Input voltage	DC 9~36V
	Power consumption	Normal: 85mA@12V, MAX: 117mA@12V
	Wiring	Anti-reverse connection
Ethernet Ports	Specification	2CH RJ45, 10/100Mbps, adaptive MDI/MDIX
Ethernet Ports	Protection	ESD: ±6kV(Contact), ±8kV(Air) EFT: 1kV, 5kHz
Serial Ports	QTY	2CH RS485 or RS232
	Baud Rate	2400bps-115200bps
	Data Bit	7, 8
	Parity Bit	None, Even, Odd
	Stop Bit	1, 2
	Protection	ESD: ±6kV(Contact), ±8kV(Air) EFT: 1kV, 5kHz
USB Ports	QTY	1CH program downloading, 1CH program debugging
	Specification	Micro USB OTG
	Protection	Over Current Protection
WiFi(Optional)	Antenna QTY	1
	Antenna type	SMA
	Protocol	802.11a/b/g/n(mixed)
	Mode	Client mode
	Signal path	2.4G Channel 1 - 13, 5G Channel 36 - 165
	Security	Open, WPA, WPA2
	Encryption	AES, TKIP, TKIPAES
	Speed	150Mbps(Max)
	Transmission distance	Outdoor open area, up to 20 meters
	SSID	Support
Indicator	PWR	Always on when device powered on Off when device lose power
	RUN	Flickering when system running Off when system shutdown
	LINK	Flickering when Ethernet communication; Always on when WiFi communication, OFF when Ethernet, WiFi are all disconnected.
Software	Internet Protocol	IPV4, TCP/UDP, DHCP, DNS
	IP Retrieving	Static IP/DHCP
	Transmission	Support Transparent Transmission
	DNS	Support Domain Name Resolution
	Configuration	PC configuration software, support WIN XP, WIN 7, WIN 8 and WIN 10
	Internet Cache	Transmitting: 8Kbyte; Receiving: 8Kbyte
	Login Package	Support custom login package
	Heartbeat Package	Support custom heartbeat package
Safety Certification	MTBF	≥100,000 hours
	EMC	EN 55022: 2006/A1: 2007 (CE &RE) Class B
		IEC 61000-4-2 (ESD) Level 3
		IEC 61000-4-4 (EFT) Level 3
		IEC 61000-4-5 (Surge)Level 3
	Others	CE, RoHS, FCC
Environment	Working	-40~55ºC, 5~95% RH
Environment	Storage	-40~70ºC, 5~95% RH
Others	Shell	Plastic
	Dimension	30mm×83mm×110mm(LxWxH)
	IP Grade	IP30
	Net Weight	133g
	Installation	DIN-Rail Mounting, Wall-Mounting

Box & ship by air,sea ,land

Product Advantages

Start Your Digital Transformation with BLIIoT

Founded in 2005, Beilai Technology is an innovative manufacturer dedicated to the development and manufacturing of loT devices. Beilai is the pinyin of barium-rhenium in Mandarin. Barium is a lively element, and rhenium is the last element discovered by human beings.
The meaning of barium-rhenium is to be brave in innovation and explore the most cutting-edge technology.

Beilai-Original&Reliable IoT Products Manufacturer

Beilai offer partners with a wide range of hardware including Industrial Ethernet I/O Module, Distributed I/O System, Remote I/O Module, Industrial IoT Gateway, Cellular IoT M2M RTU, Embedded ARM Computer, Industrial 4G Edge Router, X86 Embedded Industrial Computer, Remote Battery Measurement System, Cellular SMS Controller, Network Fault Monitoring Alarm, Cellular Gate Opener, OEM and ODM services.
