DLT645 IEC104 to MQTT Power Grid IoT Gateway for Data Collection and Transparent Transmission

Shenzhen Beilai Technology Co., Ltd. Verified Business License
DLT645 IEC104 to MQTT Power Grid IoT Gateway for Data Collection and Transparent Transmission thumbnail-1
DLT645 IEC104 to MQTT Power Grid IoT Gateway for Data Collection and Transparent Transmission thumbnail-2
DLT645 IEC104 to MQTT Power Grid IoT Gateway for Data Collection and Transparent Transmission thumbnail-3
DLT645 IEC104 to MQTT Power Grid IoT Gateway for Data Collection and Transparent Transmission thumbnail-4
DLT645 IEC104 to MQTT Power Grid IoT Gateway for Data Collection and Transparent Transmission thumbnail-5
DLT645 IEC104 to MQTT Power Grid IoT Gateway for Data Collection and Transparent Transmission photo-1
DLT645 IEC104 to MQTT Power Grid IoT Gateway for Data Collection and Transparent Transmission photo-2
DLT645 IEC104 to MQTT Power Grid IoT Gateway for Data Collection and Transparent Transmission photo-3
DLT645 IEC104 to MQTT Power Grid IoT Gateway for Data Collection and Transparent Transmission photo-4

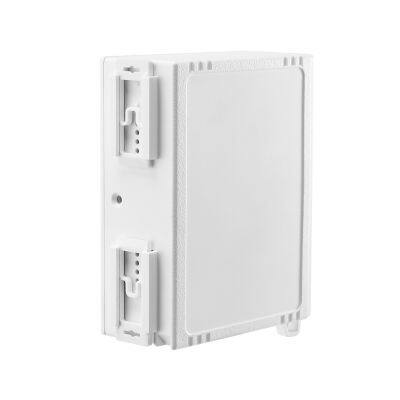

DLT645 IEC104 to MQTT Power Grid IoT Gateway for Data Collection and Transparent Transmission photo-5
US$ 44.32 - 49.64 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLIIOT
Place of Origin:
China
Model Number:
BE113
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIIOT
Place of Origin China
Model Number BE113

Product Description

BE113 is a  Modbus RTU,Modbus TCP,DLT645,IEC101,IEC102,IEC103,IEC104 to MQTT protocol gateway, supporting up to 10 devices, 512 data points acquisition.

It adopts embedded ARM MCU and is developed based on Linux OS system. Provides 2 RS232/RS485 optional serial inputs, 1 power input, 2 Ethernet ports (WAN port and LAN port) and 2 USB ports. Access to the Internet by WiFi or Ethernet, characterized by fast rate and low latency.

Support OpenVPN function.
Support routing function and cascade switch data acquisition, convenient to collect more industrial equipment data, software function is perfect, covering most of the conventional application scenarios.
Integration of barium rhenium technology adhering to the humanized configuration interface, as well as remote configuration, remote upgrade firmware and other functions, the user only through a simple setup .

Model List


ModelWANLANCOM(DefaultRS485,optionalRS232)WiFi4GGPS
BE1xx112×××
BE1xxL112×√×
BE1xxLG112×√√
BE1xxW112√××
BE1xxP116×××
BE1xxPL116×√×
BE1xxPLG116×√√
BE1xxPW116√××

Packaging & Shipping

Box & ship by air,sea ,land

Product Parameters


ParameterDescription
SystemProcessorClock speed 300Mhz
Storage128MB
Flash memory64MB
Power SupplyInput voltageDC 9~36V
Power consumptionNormal: 85mA@12V, MAX: 117mA@12V
WiringAnti-reverse connection
Ethernet PortsSpecification2CH RJ45, 10/100Mbps, adaptive MDI/MDIX
ProtectionESD: ±6kV(Contact), ±8kV(Air)
EFT: 1kV, 5kHz
Serial PortsQTY2CH RS485 or RS232
Baud Rate2400bps-115200bps
Data Bit7, 8
Parity BitNone, Even, Odd
Stop Bit1, 2
ProtectionESD: ±6kV(Contact), ±8kV(Air)
EFT: 1kV, 5kHz
SIM Card SlotQTY1
SpecificationDrawer type slot, support 1.8V/3V SIM/UIM card (NANO)
ProtectionBuilt-in 15KV ESD Protection
USB PortsQTY1CH program downloading, 1CH program debugging
SpecificationMicro USB OTG
ProtectionOver Current Protection
4G(Optional)Antenna QTY1
Antenna typeSMA
L-EGSM/EDGE:900,1800MHz
WCDMA:B1,B5,B8
FDD-LTE:B1,B3,B5,B7,B8,B20
TDD-LTE:B38,B40,B41
L-CEGSM/EDGE:900,1800MHz
WCDMA:B1,B8
TD-SCDMA:B34,B39
FDD-LTE:B1,B3,B8
TDD-LTE:B38,B39,B40,B41
L-AWCDMA:B2,B4,B5
FDD-LTE:B2,B4,B12
L-AUGSM/EDGE:850,900,1800MHz
WCDMA:B1,B2,B5,B8
FDD-LTE:B1,B3,B4,B5,B7,B8,B28
TDD-LTE:B40
L-AFWCDMA:B2,B4,B5
FDD-LTE:B2,B4,B5,B12,B13,B14,B66,B71
CAT-1GSM:900,1800
FDD-LTE:B1,B3,B5,B8
TDD-LTE:B34,B38,B39,B40,B41
GPS(Optional)Antenna QTY1
Antenna typeSMA
Tracking sensitivity> -148 dBm
Plane position accuracy2.5m
ProtocolNMEA-0183 V2.3
WiFi(Optional)Antenna QTY1
Antenna typeSMA
Protocol802.11a/b/g/n(mixed)
ModeClient mode
Signal path2.4G Channel 1 - 13, 5G Channel 36 - 165
SecurityOpen, WPA, WPA2
EncryptionAES, TKIP, TKIPAES
Speed150Mbps(Max)
Transmission distanceOutdoor open area, up to 20 meters
SSIDSupport
IndicatorPWRAlways on when device powered on
Off when device lose power
RUNFlickering when system running
Off when system shutdown
LINKFlickering when Ethernet communication; Always on when 4G or WiFi communication; OFF when Ethernet, 4G, WiFi are all disconnected.
SoftwareInternet ProtocolIPV4, TCP/UDP, DHCP, DNS
IP RetrievingStatic IP/DHCP
TransmissionSupport Transparent Transmission
DNSSupport Domain Name Resolution
ConfigurationPC configuration software, support WIN XP, WIN 7, WIN 8 and WIN 10
Internet CacheTransmitting: 8Kbyte; Receiving: 8Kbyte
Login PackageSupport custom login package
Heartbeat PackageSupport custom heartbeat package
Safety CertificationMTBF≥100,000 hours
EMCEN 55022: 2006/A1: 2007 (CE &RE) Class B

IEC 61000-4-2 (ESD) Level 3

IEC 61000-4-4 (EFT) Level 3

IEC 61000-4-5 (Surge)Level 3
OthersCE, RoHS, FCC
EnvironmentWorking-40~55ºC, 5~95% RH
Storage-40~70ºC, 5~95% RH
OthersShellPlastic
Dimension30mm×83mm×110mm(LxWxH)
IP GradeIP30
Net Weight133g
InstallationDIN-Rail Mounting, Wall-Mounting
Certifications

Product Advantages

Company Introduction

Start Your Digital Transformation with BLIIoT

Founded in 2005, Beilai Technology is an innovative manufacturer dedicated to the development and manufacturing of loT devices. Beilai is the pinyin of barium-rhenium in Mandarin. Barium is a lively element, and rhenium is the last element discovered by human beings.
The meaning of barium-rhenium is to be brave in innovation and explore the most cutting-edge technology.

Beilai-Original&Reliable IoT Products Manufacturer

Beilai offer partners with a wide range of hardware including Industrial Ethernet I/O Module, Distributed I/O System, Remote I/O Module, Industrial IoT Gateway, Cellular IoT M2M RTU, Embedded ARM Computer, Industrial 4G Edge Router, X86 Embedded Industrial Computer, Remote Battery Measurement System, Cellular SMS Controller, Network Fault Monitoring Alarm, Cellular Gate Opener, OEM and ODM services.


Factories and offices

Exhibition

RFQ

Q1. Can you get a free sample?

Yes, you will. but we need to charge for samples, we will return sample fee in later order.

Q2. Can you get better price? or discount?
Yes. we can give you discount. But it is based on quantity. More quantity more attractive price.

Q3.OEM, ODM Severice is available?
Yes.ODOT company provide OEM/ODM service to our customers.

Q4.How about the payment terms?
T/T, Paypal, Credit card

Q5. Can you be responsible for the shipment?
We will organize and schedule all shipping to your office if you need.

Q6. Lead time?
Sample order: 3-6 works days.
Bulk order: 7-30 work days after payment.

Q7. What is your warranty period?
Warranty period is 1 years.
This warranty does not cover damage caused by man-made damage, improper care, improper use, negligence,normal wear and tear, and force majeure such as natura disasters, earthquakes, fires, etc.
